Summary of Contents for Dateq TRI-O

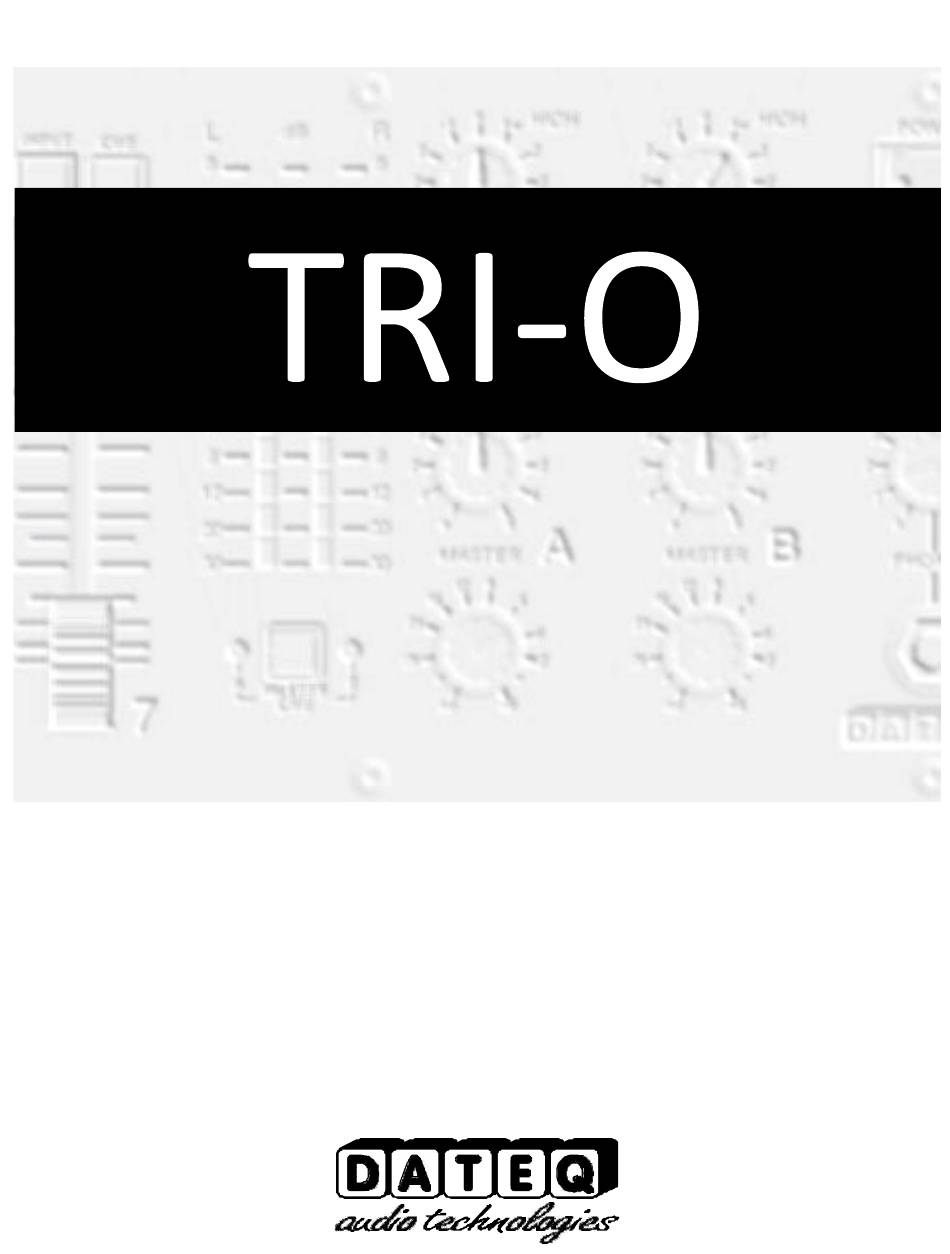

- Page 1 SER MANUAL...
-
Page 3: Safety Instructions
Dateq TRI-O Manual Safety instructions Safety instructions All safety instructions, warnings and operating instructions must be read first. All warnings on the equipment must be heeded. The operating instructions must be followed. Keep the operating instructions for future reference. The equipment may never be used in the immediate vicinity of water; make sure that water and damp cannot get into the equipment. -
Page 4: Product Support
Dateq TRI-O Manual Introduction Dateq TRI-O Fron Fron The DATEQ TRI-O is a s channel 19-inch 3-zone mixer. It is highly suitable for use in pubs, dancing- schools, conference centres etc. The TRI-O is equipped with three microphone inputs and stereo-line inputs. - Page 5 TRI-O Manual Installation Installing the TRI-O TRI-O is designed to be mounted in a 19-inch rack and is three units high. The cabinet fits into an opening of 445 x 132 x 110 mm (W x H x D). See also the dimensioned drawings below.
- Page 6 TRI-O Manual Connections TRI-O Connectorboard At the rear all the audio in and outputs can be found, just as the euro-mains connector (with built in mains-fuse) and the optional zone outputs with the volume control inputs. Master stereo outputs (Cinch female)
- Page 7 Dateq TRI-O Manual Connections Mic/ Mic Front/ Mic Rear balanced inputs (XLR 3-pins female) Function Type Ground A-GND Audio + Audio - Phones output (TRS Jack 3p, front) Function Type Left Ring Right Sleeve Ground A-GND Connections BALANCED Electronically balanced master outputs on XLR connectors for the left and right channels of master A.
- Page 8 Dateq TRI-O Manual Connections Zone volume control By means of this input the volume of an external zone can be adjusted. The volume control can be connected in two different ways: Supplying an external voltage When a voltage is supplied between the tip and the shielding of one of the cinch-connectors the volume will be attenuated (for both the left and the right channel).
- Page 9 Dateq TRI-O Manual Operation Microphone with TalkOver (1) A microphone can be connected to this channel (at the front, or at the rear). The channel has a gaincontrol, a dual equaliser and an input-selector. GAIN Volume preset for both the Mic Front and the Mic Rear input.
- Page 10 Dateq TRI-O Manual Operation Stereo line input (3 ... ) 6 Two stereo line inputs can be connected to this channel. Each channel has an input-selector, pre- fader listening and a gain-trimmer on the connectorboard. Line 1/ Line 2 Input selector.
- Page 11 Dateq TRI-O Manual Operation Various POWER Mains switch. PHONES Headphones volume control with a stereo headphones connector. The selected CUE- signal can be heard with the headphones (master A, master B or the inputs with the CUE function enabled). Meters This is an easy-to-read 2- x 12-segment LED display.
-
Page 12: Technical Specifications
Front............483 x 132 mm (W x H) = 19”, 3HE Cutout ............445 x 132 mm (W x H) Cabinet depth........... 110 mm without connectors Weight............3.5 kg Net. Dateq International BV reserves the right to amend specifications without notice...
