INSTALLATION GUIDE
Card Reader (NUCR-HE)
See
5 Terminating the Room Bus RJ45 Connectors, page
4.

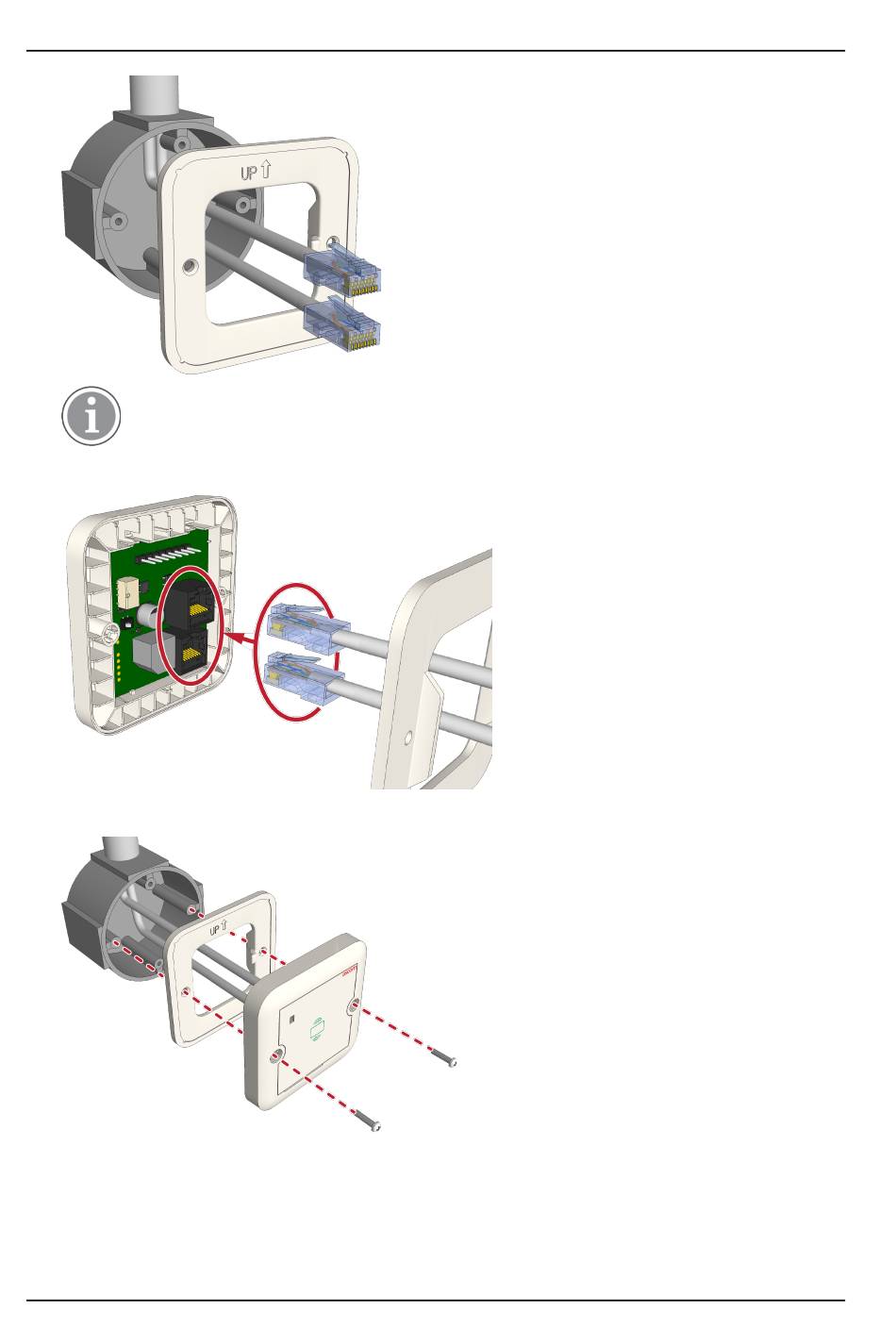

Insert the room buses into the RJ45 connectors on the rear side of the NUCR.
5.
Place the Module over the plate and use the backbox screws to mount the NUCR.
6.
Position the module and plate until its top is level.
7.
Tighten the screws until they are snug. Do not overtighten.
TD 93429EN / 18 March 2022 / Ver. C
7.
Mounting
4
