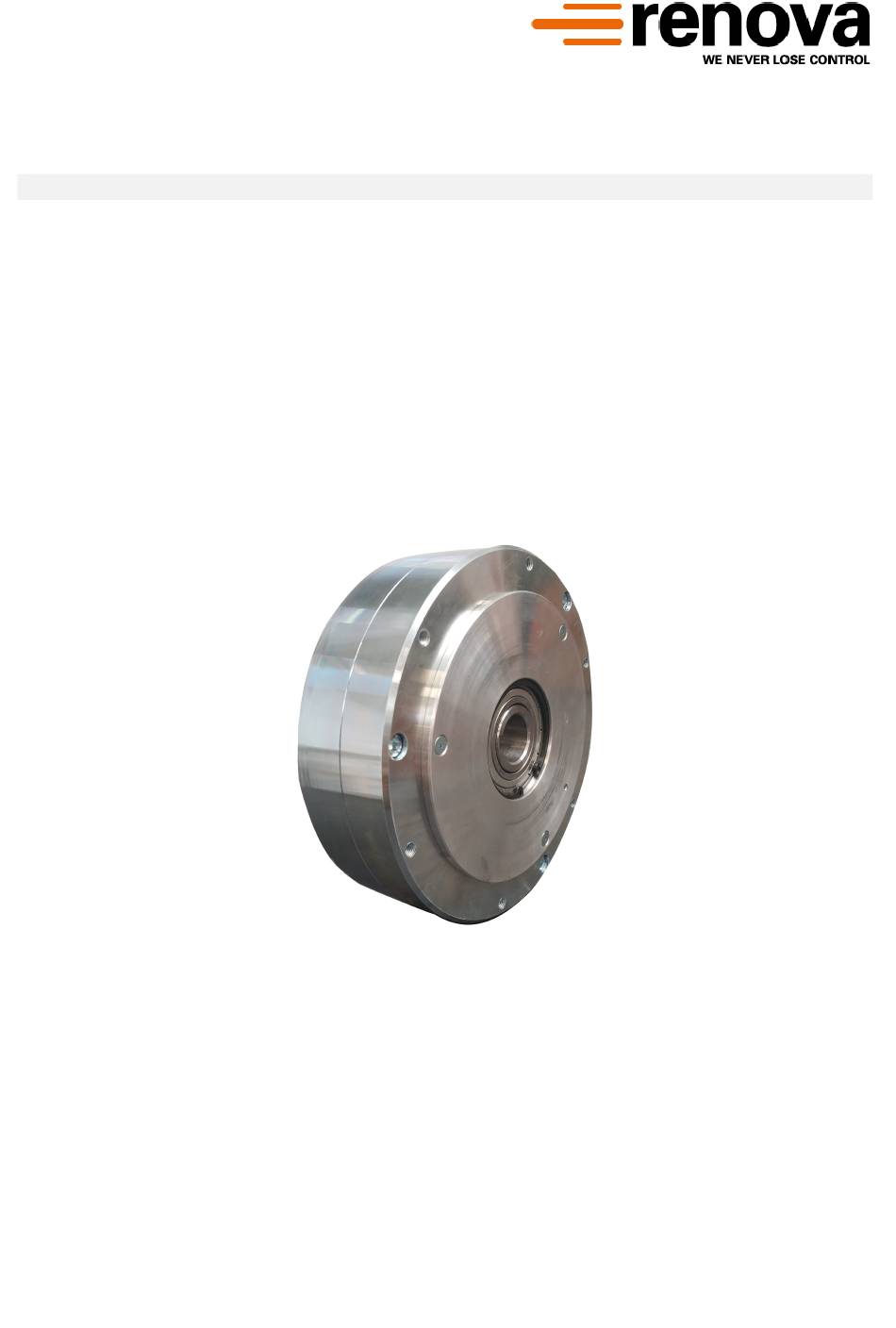

- Page 1 powder brake PWX Assembly and maintenance manual...
- Page 2 © Copyright Renova Srl, 2013. All rights reserved.
-
Page 3: Table Of Contents
english - index introduction .…………………………………………………………….…….… page 4 warnings …….…………………………………………………….…….…….….. page 4 assistance ………………………………………………..………..……………. page 4 description …………………………………………………..……………………. page 5 power supply ALPWX ………………………………………..………………. page 6 assembly procedures …………………………………………………………. page 7 assembly and overall dimension tables ..……..…………………….. page 8 costructiveness and functioning ..………………..…………………….. page 10 replacement of electromagnetic powder ..…………………………. -
Page 4: Introduction
- Description of the possible versions of the PWX brake with relative dimensions and dimensions - Technical data and related tables Since the product and Renova itself are constantly evolving in order to improve the quality and performance of its products, Renova reserves the right to update the manuals to new versions, without the obligation to update products already marketed and / or any previous manuals. -
Page 5: Description
To adjust the braking torque Renova recommends using the ALPWX-5A module. The set torque is maintained with an accuracy of 5%, regardless of the number of revolutions or slippage between the brake body and the rotor. -
Page 6: Power Supply Alpwx
ALPWX-5A: power module Technical specifications Power supply From 12V to 27V AC or from 12V to 36V DC Adjustable from 1A to 5A, current-stabilized output, regulated through the reference analog inputs Set power output Reference nominal tension 24V DC 24VDC 200mA for sensors power supply (ex.: Power outputs ultrasonic) Set point auxiliary... -
Page 7: Assembly Procedures
assembly procedures PWX powder brakes and clutches require a few tricks to perform a correct assembly. Rather, it is recommended that you follow each step and check for correct execution. Mount the brake or clutch on the shaft with the key in the appropriate seat. Brake PWX Clutch PWX Assembly will be performed near the centering dimension B as per drawing. -
Page 8: Assembly And Overall Dimension Tables
brake (clutch) assembly and dimension table standard dimensions:... - Page 9 dimensions with optional:...
-
Page 10: Costructiveness And Functioning
The PWX series of powder brakes and clutches consists of the following parts: The PWX brake (clutch) is composed of two coaxial rotors: the coil for the generation of the variable and controlled magnetic field is inserted in the external rotor and supports the internal rotor through two bearings. -
Page 11: Replacement Of Electromagnetic Powder
replacement of electromagnetic powder The powder brake (clutch) does not require any particular maintenance other than a periodic replacement of the magnetic powder which allows the brake to operate correctly. The replacement of the powder must be performed in a few steps: 1) Remove the screws from the flange of the side opposite the coil terminals. - Page 12 Below is a table with the PWX models available in Renova with indications on the quantities of electromagnetic powder to be used...
-
Page 13: Technical Datas And Graphics
technical datas and graphics... -
Page 15: Warranty
Renova srl guarantees this device against any defects relating to materials and manufacturing for a period of 12 months from the date of delivery of the brake itself. In the event that, during the period covered by the guarantee, the device exhibits malfunctions, please contact the representative of the Company in the country of origin, or, in the absence of these, Renova srl directly. -
Page 16: Index Of Manual Revision
Index of manual revision Rev. n. Revision date Description of the chenges made... - Page 17 note...
- Page 18 note...
- Page 19 Renova srl – viale Rimembranze 93 – 20099 Sesto San Giovanni (MI) Italy tel.: +39.02.2700.7394 – fax: +39.02.2570.8635 www.renova-srl.com – email: support@renova-srl.it...
