Spearhead STARCUT 500 Quick Start Manual

Hide thumbs Also See for STARCUT 500:

Advertisement

Table of Contents

Quick Start Operators Guide
500 & 730 Star-Cut

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STARCUT 500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spearhead STARCUT 500

Summary of Contents for Spearhead STARCUT 500

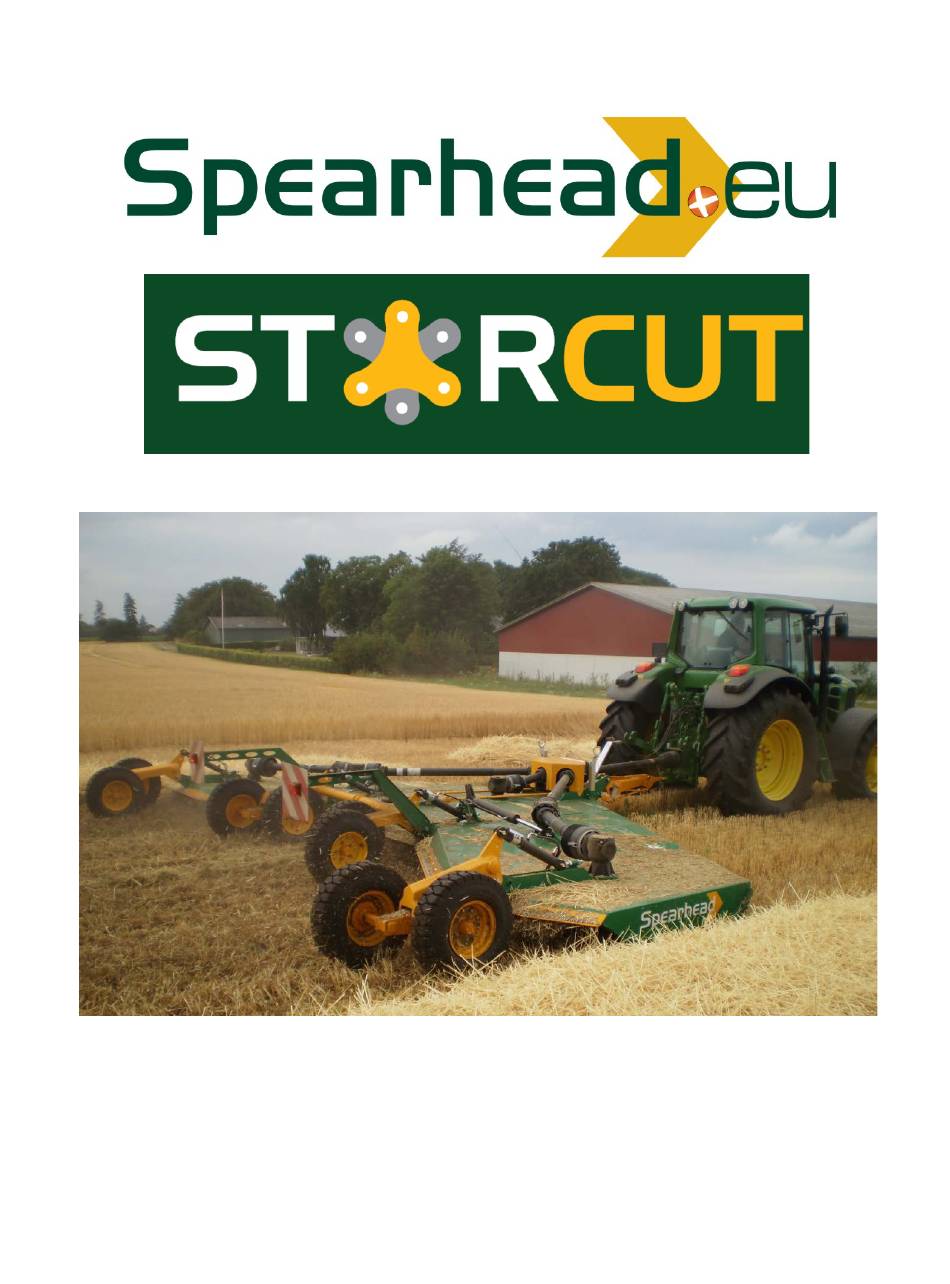

  • Page 1 Quick Start Operators Guide 500 & 730 Star-Cut...
  • Page 2 Height of Cut Height of cut is controlled by varying the amount of ram stops down over the ram rod. Start with 6 ram stops on all rams. Cutting height can be in- or decreased by adding or reducing the amount of stops. Attention.
  • Page 3 Transport Both centre axle rams must have all the stops down. Both wing axle rams must have all the stops out. When the stops are in the correct position lower the machine and keep pressurizing the rams until both the wings rams are fully closed to give a safe and narrow transport.
  • Page 4 Hose Connections Wings; red banded hose, single acting spool c/w dump Wheel axle; blue and yellow banded hose, double acting spool c/w dump...
  • Page 5 Hitching to the Tractor Low drawbar When attached to the low drawbar of the tractor always use the parallel linkage bar attached to the lower hole on the hitch plate. High drawbar When using the high drawbar it may not be possible to use the parallel linkage, as when the machine is full raised the PTO shaft may hit the hitch.
  • Page 6 Leveling the Machine When the machine is fitted to the tractor and set at working height, the front of the skid should be in same height as at the rear of the skid. To raise the front of the skid shorten the adjustable link that is attached to the rear axle.
  • Page 7 Driveline – clutch-adjustment. Bondioli Fig. No. Position Part No. Setting Machine 2 (h) Centre 5770031A 17,8 mm 500/730 2 (h) Inner Wing 5770206 17,2 mm 500/730 2 (h) Outer Wing 5770207 17,2 mm 1. Check the condition of the friction discs before use and following periods of storage.
  • Page 8 Slip Clutch Settings ( Walterscheid ) Spring Height 1. Check the condition of the friction discs before use and following periods of storage. Release the tension from the spring, turn the clutch while holding the P.T.O stationary. Or slip it using the tractor for it.

This manual is also suitable for:

Starcut 730
