- Page 1 User Manual TECBOT S2 Series...
- Page 3 TECBOT S2 Series User Manual Before using your product, read through this User Manual carefully and keep it for future reference.

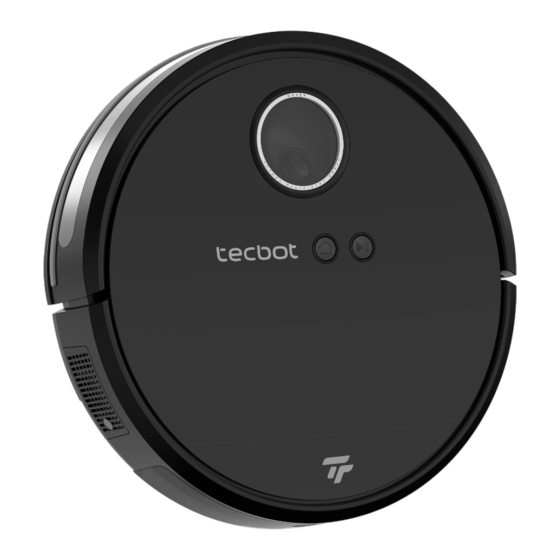

- Page 5 Welcome Thank you for purchasing our TECBOT S2 Series, a robot vacuum cleaner. TECBOT S2 Series has a visual navigation system for accurate mapping, routing, and cleaning coverage. In addition, the upward-oriented vacuum exhaust avoids blowing pet hair around, making them ideal for homes with pets.
-
Page 6: Table Of Contents
Table of content Package list Cleaning modes and mopping function 15 TECBOT S2 Series anatomy Regular maintenance Precautions Troubleshooting and FAQs Installation Warnings and Restrictions Pairing Charging Hazardous materials... -
Page 7: Package List
Package list TECBOT S2 Series (Dust box included) Charging dock Power cord Water tank (optional) User Manual 1 extra mop (optional) TECBOT S2 Series 2 extra edge-cleaning brushes Remote control 2 AAA remote control batteries Brush and hook knife cleaning tool... -
Page 8: Tecbot S2 Series Anatomy
TECBOT S2 Series anatomy Collision bumper Charging button Start/Pause button Visual navigation system ON/OFF switch ToF wall sensor Vacuum exhaust... - Page 9 Contact point for charging dock sensor Driving wheel Edge-cleaning brush Battery cover Wheel ToF optical sensor V-shaped brush main cover V-shaped brush Dust box or water tank...
- Page 10 Dust box Dust box Cover HEPA Sponge Release clip Water tank Inlet Release clip Charging dock Charging indicator light Signal emitter Charging contact points Power adapter Water tank Charging dock...
- Page 11 Spot cleaning mode heavy-duty vacuum cleaning Press to intensely clean an area. or decrease for a longer and Your TECBOT S2 Series will spiral quieter cleaning run. outward about 3 feet / 1 meter in diameter and then inward to Start/Pause where it started.
-
Page 12: Precautions
Do not pick up your TECBOT S2 Series with one hand to avoid accidentally releasing the dust box or water tank. Retrieve the dust box or water tank when turning over your TECBOT S2 Series for maintenance. -
Page 13: Installation
NOTE: The ON/OFF switch is on the right side of your TECBOT S2 Series. (“I” position for ON and “O” for OFF, see page 4.) Your TECBOT S2 Series will self-check for about 10 seconds before turning on. -
Page 14: Pairing
Automatic pairing via Bluetooth Download our Tecbot Home App by scanning the Your Tecbot S2 Series will automatically try to pair with QR code or searching on the App Store or Google Play your mobile device via Bluetooth. Please ensure your... - Page 15 Automatic pairing (Bluetooth) Sign up to register an account and log in. Ensure your Tecbot S2 Series is turned ON (The ON/OFF switch is located at the side of your TECBOT S2 Series) and tap “Add Device.” Wait for the splash screens on your mobile device.
- Page 16 Manual pairing via Wi-Fi • Your Wi-Fi router supports a 2.4 GHz frequency band. If your Tecbot S2 Series is not pairing automatically, you can try to add it manually via Wi-Fi. • Your mobile device or tablet is connected to the Wi-Fi network of 2.4 GHz frequency band.
- Page 17 Manual pairing (Wi-Fi) Tap “ TECBOT S2” and enter your Wi-Fi password. Restart your TECBOT S2 Series by switching it OFF and ON. The switch is located at the side of your TECBOT S2 Series. Press and hold the Start/Pause button for 3 seconds until it beeps once to establish the Wi-Fi connection.
-
Page 18: Charging
TECBOT S2 Series after daily use to maintain the function. battery performance. Your TECBOT S2 Series will not turn on when its battery is low. Please, manually place your TECBOT S2 Series on the charging dock. The indicator light on the charging dock will blink to indicate that charging has started. -
Page 19: Cleaning Modes And Mopping Function
Cleaning modes and mopping function Cleaning modes Automatic cleaning mode Your TECBOT S2 Series will clean all the accessible areas of your house. TECBOT S2 Series will start to move straight along the wall/obstacles, and move in anti-clock- wise direction for edge cleaning. Once the edge-cleaning is completed, it will automatically plan a zigzag path to clean the remaining space and avoid obstacles on its way. - Page 20 (such as a wall) and returns to the charging base. Spot cleaning mode The spot cleaning mode is suitable for cleaning an area where the debris or dust is concentrated. Your TECBOT S2 Series will clean in a zigzag path and returns to the starting position.
- Page 21 Mopping function NOTES: Place the mop in place, open the water inlet, • Ensure your TECBOT S2 Series is fully charged. slowly up the water tank with clean water, and close • Fold any fringe tassels edges under the carpet to the water inlet tightly.
-
Page 22: Regular Maintenance
Regular maintenance Please turn off your TECBOT S2 Series and retrieve the dust box or water tank when turning it over for maintenance. Edge-cleaning brushes It is recommended to replace after 6 months. • Turn over your TECBOT S2 Series and remove the edge-cleaning brushes by pulling them upwards. - Page 23 It is recommended to clean up at least once a week. • Always keep all sensors’ windows clean. • Retrieve the dust box from your TECBOT S2 Series pressing its release clip. • Wipe clean all sensors’ windows and contact points with a soft dry cloth.
- Page 24 Do not clean with water. • Shake out the water droplets from the water tank, sponge, and air • Let them dry in the air for at least 24 hours. • Assemble back the water tank and place it into your TECBOT S2 Series.
- Page 25 • Let them dry in the air for at least 24 hours. • Assemble back the dust box and place it into your TECBOT S2 Series. NOTES: • It is recommended to replace the HEPA filter between 6 to 12 months to ensure an excellent vacuum effect.
-
Page 26: Troubleshooting And Faqs
Ensure that both ends of the charging dock power cord are plugged in. Clean the charging station and TECBOT S2 Your TECBOT S2 Series will redraw the map after a Series contact points and that the charging dock partial cleaning or long-distance movement. - Page 27 4 feet / 1.2 meter. Tap “Me” to select family management. Check your TECBOT S2 Series in turned ON and charge. Tecbot Home App does not have a map. Replace the remote control batteries with new ones.
-
Page 28: Warnings And Restrictions
Warnings and Restrictions • Use your TECBOT S2 Series • Do not use your TECBOT S2 Series • Do not use your TECBOT S2 Series according to this User Manual. over damp, standing water, or to clean any burning objects or The user will bear any loss and sticky surfaces.Only use your... - Page 29 • Carry your TECBOT S2 Series with • If you intend not to use your • Consult a professional recycling both hands, and do not use the TECBOT S2 Series for a long time, agency for directions to discard collision bumper as a handle.
-
Page 30: Hazardous Materials
Hazardous materials Parts Cr(VI) PBDE Elements Plastic parts Lead Hardware Mercury Circuit board Chromium Electronic Cr(VI) Hexavalent Chromium Battery Polybrominated Plug power cord (metal part) biphenyls PBDE Polybrominated phenyl ether Notes The amount in at least a certain part exceeds the limit requirement of the GB/T 26572 regulation, and there is currently no proven alternative in the industry that meets the environmental protection requirements of the EU RoHS regulations. - Page 32 TECBOT S2 Series Manufacturer: Shenzhen Tecbot Intelligent Robot Co., Ltd. Address: 8D, Nanyuan Maple Leaf Building. Nanshan Avenue No.1088, Shenzhen, Guangdong, China. Manufacturer: Guangdong Jingrong Technology Holdings Co., Ltd. Address: Jingrong Industrial Park, Shunfeng Road, Dongguan, Guangdong, China. Customer Service Department email: hi@tecbot.ai...
