  • Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF-UC1 User Manual...
  • Page 2 ALF-UC1 Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operational instruction, please contact the local distributor for maintenance assistance. The functions described in this version are updated as of September 2021.
  • Page 3 ALF-UC1 Features: ALF-UC1 Supports quad viewer on one display.  Supports VESA PC resolution input, auto-detecting.  Able to mirror PC’s extended desktop or MacBook’s desktop.  Able to mirror smart devices' photos, videos, music etc.  Supports Wireless Media Teleporter "show-me" button.

  • Page 4: Table Of Contents

    ALF-UC1 Contents Overview ....................................6 Specification ..................................8 Panel Layout ..................................8 Hardware Interface ............................9 3.1.1 ALF-UC1 Front Panel ............................9 3.1.2 ALF-UC1 Rear Panel ............................11 3.1.3 Factory Reset ..............................12 3.1.4 Dongle Front Panel ............................14 Software Interface ............................18 3.2.1...
  • Page 5 ALF-UC1 Web Setting Management Configuration ....................... 45 Network settings .............................. 48 6.1.1 Wireless network ............................. 48 6.1.2 Ethernet .................................. 58 6.1.3 Auto change password ............................. 58 Display & Audio ............................... 60 6.2.1 HDMI ..................................60 6.2.2 Audio ..................................62 6.2.3 Airplay screen quality ............................
  • Page 6 ALF-UC1 7.1 Check current firmware information ........................80 7.2 Upgrading firmware of base unit: ........................83 Upgrading and Pairing of Dongle: ......................84 Upgrading Launcher: ............................85 7.5 Clean left files of older versions of Launcher program in Lap-top ............87 Operation Guide ................................

  • Page 7: Overview

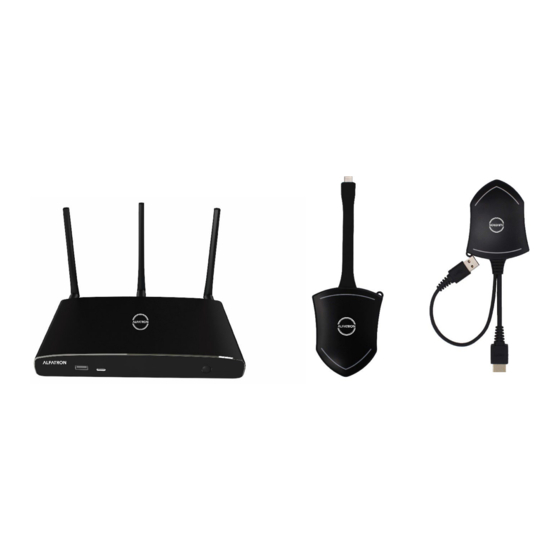

    1. Overview: ALF-UC1 The ALF-UC1 makes connecting or participating within a meeting simple, with the touch of a button. It also allows other participants to join the meeting more efficiently, and the result is ensuring meetings are more effective, and productive. The ALF-UC1 contains one Base Unit.
  • Page 8 ALF-UC1 Airplay for IOS For smart IOS devices to share the screen. Accessories List Name Description Two antennae are included in the box, to avoid damage, they are not pre-mounted. The antenna Antenna can rotate for a better wireless connection.

  • Page 9: Specification

    ALF-UC1 2. Specification: ALF-UC1 Specification HDMI output 1x HDMI 19-pin female connector 3840x2160@60Hz, 3840x2160@30Hz, Video Output Resolution 1920x1080@60Hz Format Compliance HDMI1.4/HDMI2.0 1080P @ <60Hz Airplay for IOS devices Video Capacity: 1080P @ <60Hz "ALF-WirelessMedia" app 1080P @ <60Hz for all show-me...

  • Page 10: Panel Layout

    ALF-UC1 3. Panel Layout About this chapter The installation chapter gives an overview of the interface of ALF-UC1. Overview Hardware Interface  ALF-UC1 Front Panel  ALF-UC1 Rear Panel  ALF-USBC-D, ALF-HDMI-D Front panel  Software Interface  Home Screen ...
  • Page 11 GREEN, “Ready to share” indicates static GREEN, “Sharing” indicates static cyan. USB port The USB port is used to update the software of the ALF-UC1.  The USB port is used for pairing the dongle with the base unit.

  • Page 12: Alf-Uc1 Rear Panel

    ALF-UC1 3.1.2 ALF-UC1 Rear Panel 12 / 103...
  • Page 13 Antenna fixture Screw the included two antennas to these two ports. points USB port The USB port is used to update the software of the ALF-UC1.  The USB port is used for pairing the dongle with the base unit. ...

  • Page 14: Factory Reset

    ALF-UC1 3.1.3 Factory Reset Power the Base unit.  When the Home Screen is shown, press the reset button at the rear panel of base unit. Press this button  with a pointed object, e.g., a paper clip until the “Factory Reset” page is shown as below, for at least 2 seconds.

  • Page 15: Dongle Front Panel

    ALF-UC1 Add a sub-window bar to enable previewing the connected devices: ON  Real time preview: ON  System settings  Date and time: Automatic date and time: use network provided time  Auto Standby: Never  Language: English ...
  • Page 16 ALF-UC1 Touch the sensor button to start displaying the content of the PC / Lap-top screen on the main screen. Touching the button Touching Button during the meeting will toggle the sharing of the screen. LED ring Indicates the status of the button.

  • Page 17: Software Interface

    ALF-UC1 3.2 Software Interface 3.2.1 Home Screen Name Description Wi-Fi Direct mode: internal access point is enabled Wi-Fi Infrastructure mode: “Client-Mode“, Wi-Fi connection to router is established, icon displays the current signal strength. Wi-Fi Indicator A secure Wi-Fi connection is established, or connection...
  • Page 18 ALF-UC1 Refresh Wi-Fi- Generate new password manually for securing your password Fi network. Wi-Fi IP: address of base unit in wireless LAN  Wi-Fi IP Assigned IP: address of base unit in LAN;  LAN IP “N/A”= no connection to network...

  • Page 19: Installation

    ALF-UC1 4. Installation The installation chapter gives an overview of the different ways to install and connect the ALF-UC1 Base Unit. Overview: Installation methods for the Base unit  Table mounting  Wall mounting  Recommendations about antenna placement and orientation ...
  • Page 20 At the bottom of Base Unit, turn in the two flat screws into the two holes until tightly fastened. Note: Mounting screws and plugs are not included in the ALF-UC1 box. The type of screws depends on the type of wall (stone, wood, plasterboard, etc) you are mounting the Base Unit to. Ensure the head of the screw is not larger than the hole in the bottom of base unit.

  • Page 21: Wiring Diagram

    ALF-UC1 4.2 Wiring Diagram 4.3 Power Connection The Base unit can be powered by the external universal power adapter. How to connect the external power adapter Plug the power connector to the power adapter to the power input connector of the Base Unit Choose the appropriate power plug (US, UK, EU, or AU) to be installed on the power adapter, Connect the power cable plug into the wall outlet.

  • Page 22: Video Connection

    4.5 Audio Connection The ALF-UC1 Dongle can transmit the audio output of the PC / Lap-top, re-direct and send to the Base Unit along with the video signal. The audio will be output at line levels from the 3.5mm mini jack socket connector and via the HDMI output connectors simultaneously.

  • Page 23: Lan Connection

    Connect a network cable with an RJ-45 connector into the LAN port of the Base Unit. Connect the other side to LAN. If the LAN Ethernet switcher supports POE (Power over Ethernet), it could power up the ALF-UC1 other than using the external power adaptor.

  • Page 24: Usage Of Usb Device

    To control the sharing PC / Laptop. To activate system upgrading For white board or annotation during a presentation, the ALF-UC1 transmits Video, Audio and the USB-HID function for mouse-control and click-function of a touchscreen. Connect touch-interface of your screen to the USB-port on your laptop or PC.

  • Page 25: Quick-To-Start

    The ALF-WirelessMedia provides two ways to discover the ALF-UC1 for mobile devices: Portable hotspot: connect the hotspot to connect the ALF-UC1. LAN connection: connect the ALF-UC1 and mobile both in LAN network, to discover and connect to ALF-UC1. After Factory reset, the ALF-WirelessMedia starts in standard configuration "Wireless Direct Mode" ("Linked Single Network"), where the base unit creates its own wireless access point, to which all the transmitters connect.

  • Page 26: Enable Portable Hotspot

    UC-1 is successfully connected to the LAN and receives an appointed IP address. Note: When it shows “N/A”, it means the ALF-UC1 is not connected to the LAN (Local Area Network) via CAT cable, or it failed to get an available IP address from the corporation router.

  • Page 27: Pairing Transmitter With Base Unit

    5.2 Pairing transmitter with base unit Connect the USB of ALF-USBC-D to either of the 2 x USB port of the ALF-UC1, ALF-USB-L to USB port / type C port, or the ALF-HDMI-D (HDMI dongle) to USB port, to pair all the Dongles with the base unit.

  • Page 28: Mirroring

    ALF-UC1 5.3 Mirroring 5.3.1 PC / Laptop Driver-based Transmitter ALF-USB-L: Use a universal USB stick to create a “Launcher”, which is stored in the base unit. Connect the USB stick to base unit and click the DOWNLOAD icon on the homepage to download the “ALF-WirelessMedia-windows.exe”...
  • Page 29 ALF-UC1 ATTENTION: For security conscious customers, please download the “ALF-WirelessMedia-pro.exe” instead of “ALF-WirelessMedia- windows.exe” for the steps above. “ALF-WirelessMedia-pro.exe” doesn’t run automatically after the plug-in of the dongle but require user to manually click and execute the “ALF-WirelessMeida-pro.exe” every time.
  • Page 30 When the transmitter LED is static green , you can then touch to share the screen or click the visual button on bottom right corner of PC. Quad view mirroring: The ALF-UC1 can mirror 4 sources onto a single main display simultaneously, which supports PC / Laptop and mobile devices. 30 / 103...

  • Page 31: Mobiles Devices

    ALF-UC1 5.3.2 Mobiles Devices Sharing on Android devices Open the “ALF-WirelessMedia” application. Connect your mobile device to one of the displayed Wi-Fi networks. Open the “ALF-WirelessMedia2” application in your mobile device, and you will see the Home Page of “ALF-WirelessMedia2” as shown below. Click the device list refresh button Android, which is highlighted in red circles as shown below: Select the base unit you want to connect, enter password and mirror.
  • Page 32 ALF-UC1 Once pairing is completed, it shows the OSD “Welcome ***” on the home page. For example, if we connect it via a HUAWEI-PLA-AL00, it shows a “Welcome HUAWEI-PLA-AL00” on screen, Now you can mirror the desktop of your mobile.
  • Page 33 With AirPlay technology, user can stream their screen or music, (YouTube-) videos, pictures … wireless to Base-unit. Connect your iOS device within the same Wi-Fi network as the ALF-UC1. For IOS devices, activate the control center. Click the Airplay icon on your Apple device and select the target ALF-UC1 to start mirroring through the ALF-UC1 to the main screen.

  • Page 34: Preview Window

    5.4 Preview Window On the touch-screen panel, or with a mouse plugged into the ALF-UC1, you can click on LEFT or RIGHT- arrow (2), to show the small preview-windows as a bar on the right edge of the screen, or to hide it if it is disrupting your view.

  • Page 35: Whiteboard & Annotation

    ALF-UC1 5.5 Whiteboard & Annotation Whiteboard and Annotation requires an HID compatible device, such as interactive white board or interactive touch screen. It is easy to use, ensuring the collaboration in your business is more productive and effective: documents can be easily written, edited, captured, and shared.

  • Page 36: Whiteboard

    ALF-UC1 will disappear automatically, in order to let other attendees join the meeting as well. The toolbar for Whiteboard or Annotation appears at the bottom of your screen. If another user is mirroring, the Whiteboard & Annotation function is closed.
  • Page 37 ALF-UC1 Use the toolbar to select one of the following functions: Icons Function Tool bar 1 Add an empty page Delete the actual page Display previous or next page Undo: one step backward in changes Redo: one step forward in changes...

  • Page 38: Annotation

    ALF-UC1 Tool bar 4 Save the current screenshot on local storage (PNG+WMN) File options Close Whiteboard to go back to Home screen, actual project can be saved on local storage (WMN) File options: Open WMN-file from local storage and continue / edit ...
  • Page 39 ALF-UC1 Close Whiteboard to go back to Home screen, actual project can be saved on local storage (WMN) Close Whiteboard to go back to Home screen, Tool bar 1 Save the current screenshot on local storage (PNG) Download the drawings to connected users Scan the QR-code with your mobile’s camera or enter the given IP-address in a browser.

  • Page 40: Web Setting Management Configuration

    ALF-UC1 6. Web Setting Management Configuration Connect base unit ID and Password or LAN IP to laptop, to enter Wi-Fi IP browser page to configure settings of base unit. The “ALF-WirelessMedia-windows.exe” and “ALF-WirelessMedia-Pro.exe” for windows PC / Lap-top, “ALF-WirelessMedia-macOS.app” for Mac OS X, “user manual” and “ALF-WirelessMedia” for Android can be downloaded here.
  • Page 41 ALF-UC1 Click “Console” on the top right corner to enter into the menu which will then display the configuration. A password is required to enter the configuration menu. The default password after a Reset is “admin”. You can change the password in the menus “Security setting”.

  • Page 42: Network Settings

    6.1.1 Wireless network To take advantage of the full benefits of the ALF-WirelessMedia possibilities, the ALF-UC1 should be properly integrated in the organization’s network (company / university / school). This wizard allows the user to create a custom configuration for integration of the ALF-WirelessMedia into the existing wireless infrastructure within larger organizations.
  • Page 43 ALF-UC1 6.1.1.1 Wireless network configuration wizard Enter a device name for the ALF-UC1. We recommend taking a descriptive name, if you have more than one ALF-WirelessMedia installed. The default name is “UC1-XXXX”. Only "a-z","A-Z","0-9","-_" and space are legal character. Click “Next step”. The following three connection methods are available:...
  • Page 44 The internal Wi-Fi access Point of the ALF-UC1 is active . The dongle is paired directly to it. Guests and Staff use the internal Wi-Fi access point of the ALF-UC1 to present with all their units. No Internet access is required.
  • Page 45 ALF-UC1 Click “Next step” to Set up Wi-Fi access point Set-up Wi-Fi access point includes Frequency, Channel, and Password. Frequency: Click to select 2.4 GHz or 5 GHz Wi-Fi frequency. Default is 5 GHz.  Channel: Click to select the Wi-Fi channel. Default is 5 GHz, Auto.
  • Page 46 ALF-UC1 6.1.1.3 Wireless Infrastructure mode The ALF-WirelessMedia can connect to a wired and a wireless network simultaneously. The base unit is securely connected to the company network with LAN. Guest users connect to Wi-Fi "Guest" access. The employees (“Staff”) connect to their usual access point of the corporate network, without having to change the Wi-Fi. This is very useful for organizations which have a wireless “Guest”...
  • Page 47 ALF-UC1 The dongle is connected to the Wi-Fi access Point of the Guest network, which in turn is connected to the internal Wi-Fi access Point of the ALF-WirelessMedia, the dongle can also be configured to connect to the enterprise’s access point. Mobile users stay connected to their current network, have access to their normal corporate environment, as well as Internet access.
  • Page 48 ALF-UC1 Wi-Fi name of guest and staff will be shown on home screen after “Submit settings”. After submitting successfully, please re-pair the dongle with the base unit. “Dongle connects to base unit via LAN.” Choose a LAN network which is used for the company staff users.
  • Page 49 ALF-UC1 Click “Next step” to edit or change Guest network SSID and Staff network SSID. Wifi name of guest and staff will be shown on home screen after “Submit settings” After submitting successfully, please re-pair the dongle with the base unit.
  • Page 50 ALF-UC1 6.1.1.4 LAN Infrastructure Mode In this configuration the built-in Wi-Fi access point of the ALF-WirelessMedia is disabled: The dongle and / or the mobile devices can connect to the secured wireless access point of the company network. The Base-unit of the ALF-WirelessMedia is hard-wired connected via LAN to the Ethernet of the Company network.
  • Page 51 ALF-UC1 Click “Next step” to choose a LAN network which is used for the company staff users, and pair the dongle to this network. Click “Next step” to edit or change Guest network SSID and Staff network SSID. Wi-Fi name of Guest and Staff will be shown on home screen after “Submit settings”...

  • Page 52: Ethernet

    ALF-UC1 6.1.2 Ethernet Configure the Ethernet settings. The ALF-UC1 has two LAN ports, if the base unit is connected with two LAN cables, you can configure as below tab. 52 / 103...

  • Page 53: Auto Change Password

    ALF-UC1 6.1.3 Auto change password The password remains unchanged for all participants of the meeting while at least one dongle, or a Wi-Fi network of a mobile device is connected to the Base-unit. Once the last user disconnects, the password can be configured.

  • Page 54: Display & Audio

    ALF-UC1 6.2 Display & Audio 6.2.1 HDMI HDMI Resolution Select the resolution of the HDMI output of the Base-unit: Existing HDMI output resolution as below: Auto  3840 x 2160 @30Hz  3840 x 2160 @60Hz  3840 x 2160 @50Hz ...
  • Page 55 ALF-UC1 HDMI CEC Base unit supports CEC function if the connected display supports CEC function. Device auto power off:  ON (Default): Display will automatically turn off when base unit is powered off.  OFF: Display will not automatically turn off when base unit is powered off.

  • Page 56: Audio

    ALF-UC1 6.2.2 Audio Audio Choose audio output: Jack: Output 3.5mm mini-jack audio only. HDMI: Output HDMI audio only. Jack and HDMI (Default): Output Jack and HDMI audio 56 / 103...

  • Page 57: Airplay Screen Quality

    ALF-UC1 Volume User can select volume of the display from 0 to 100. 6.2.3 Airplay screen quality Click to select the image quality when displaying apple device via “AirPlay” mode. 57 / 103...

  • Page 58: Screen Display Id

    6.2.5 Home Screen background image When powering on the ALF-UC1, the start screen will be displayed. User can change background image of home screen. Select the image (jpg, bmp, png, or gif with a resolution 1920x1080p) from suitable directory and select box for activation.

  • Page 59: Moderator Control

    ALF-UC1 6.3 Moderator control Add a sub-window bar to enable previewing the connected devices. Tick the icon, it will show the sub  window as below once devices are connected to base unit. 59 / 103...
  • Page 60 ALF-UC1 If you do not tick the icon, the preview window bar will be minimized as below: Real time preview  If you tick the icon, the preview window will show the real time preview, if you do not tick, the preview window...

  • Page 61: System Settings

    ALF-UC1 6.4 System settings 6.4.1 Buttons: Show Device name, MAC Address, Serial Number, Device Version, Device Status, Last Action, and Item Operate. Paired: Show properties of connected dongles, and this can be managed from this page. 61 / 103...

  • Page 62: Date & Time

    ALF-UC1 6.4.2 Date & Time Includes: Automatic date and time, set date, set time, and select time zone. Automatic date & time: Uses a NTP time server to provide time as the system time.  Set date: Click the input field to fill out the appropriate date.
  • Page 63 ALF-UC1 63 / 103...

  • Page 64: Auto Standby

    6.4.3 Auto standby If the “Auto Standby” mode is activated, the ALF-UC1 will automatically switch to power saving mode, a selectable time after the last dongle was plugged out, or Wi-Fi of a mobile unit was disconnected, or there is no operation within the system.

  • Page 65: Language

    ALF-UC1 6.4.4 Language Select a display language: 65 / 103...

  • Page 66: Reset

    ALF-UC1 6.4.5 Reset Doing a factory reset to restore the unit to default: 66 / 103...

  • Page 67: Configuration File

    ALF-UC1 6.4.6 Configuration File Configuration File is a packaged file which contains all the configuration parameters of the ALF-UC1, which could be downloaded and copied to multiple devices which need to use the same configuration. 67 / 103...

  • Page 68: Series Port Setting

    ALF-UC1 6.4.7 Series Port Setting Telnet command and RS-232 command configuration: 68 / 103...

  • Page 69: Security Settings

    6.5.1 Security level Based on the user requirements, three different security levels can be set in the menu of the ALF-UC1, to satisfy various security requirements, according to different security sensitive environments or security policies. A security level is a predefined set of settings. Click on the corresponding entry in the menu should you want to adjust the respective security features.

  • Page 70: Login Password

    ALF-UC1 6.5.2 Login Password Change admin password by entering the setting menu on webserver. Default password, or after a factory reset, is “admin”. You can change the password as necessary. You can also deactivate the password entry, set the appropriate checkmark and “Confirm settings”.

  • Page 71: Firmware Upgrade

    ALF-UC1 6.6 Firmware upgrade 6.6.1 Firmware Update To upload local updated files to upgrade the base unit. 6.6.2 Automatic Upgrading Tick to choose upgrading from OTA via Internet or from local files. 71 / 103...

  • Page 72: Other Settings

    ALF-UC1 6.7 Other settings 6.7.1 Auto create launcher When using a USB drive in one of the USB ports of the Base-unit, the Launcher program “ALF-WirelessMedia” will be copied automatically onto the USB drive. Enable or disable the appropriate box.

  • Page 73: About Device

    ALF-UC1 6.8 About device Check the firmware version of base unit and web server version. 73 / 103...

  • Page 74: Updating Alf-Wirelessmedia

    ALF-UC1 7. Updating the ALF-WirelessMedia Updating the firmware can be useful to take the advantage of new features of the ALF-WirelessMedia, or to fix known issues and bugs. The ALF-WirelessMedia includes two methods of updating: Updating by USB stick, and webserver.
  • Page 75 ALF-UC1 Click “About” to check dongle and launcher program version. 75 / 103...
  • Page 76 ALF-UC1 MAC OSX: Dongle / Launcher: Firmware version can be seen in the ““ALF-WirelessMedia”.app” program icon in MAC OSX status bar, by clicking the ““ALF-WirelessMedia”” icon and selecting “About”, as shown below: Click “About” to check dongle and launcher program.
  • Page 77 ALF-UC1 When this occurs, follow the steps to update the firmware’s, as indicated in the message box. 77 / 103...

  • Page 78: Upgrading Firmware Of Base Unit

    ALF-UC1 7.2 Upgrading firmware of base unit: There are two ways to upgrade the base unit, described below: First method: The base unit device can be updated via a USB drive: Copy the file “update.img” to the root directory of the USB drive.

  • Page 79: Upgrading And Pairing Of Dongle

    7.3 Upgrading and Pairing of Dongle: Plug the dongle into either of the two USB ports of ALF-UC1 to be updated. A message will automatically be displayed to indicate if the installed firmware of dongle is older, and needs to be updated.

  • Page 80: Upgrading Launcher

    ALF-UC1 The updating progress automatically starts with the progress bar, as shown below: “Pairing” to the Base-unit is done automatically afterwards, it shows as below: 3. Plug out the dongle once the upgrading process is completed. Update all other dongles accordingly.
  • Page 81 When ready, unplug the USB drive. Method 2: Via Wi-Fi Connect PC to ALF-UC1 SSID and enter the password in the homepage, as below: Open Browser and enter Wi-Fi IP: 192.168.43.1:8000. Click to enter “Launcher” download webpage, as displayed below: Choose and click Windows or MAC launcher to download.
  • Page 82 ALF-UC1 Connect the dongle to a PC; click to run program from the USB drive and share the PC screen.  For both methods, user doesn’t need repeat the above steps for a repeat plug-in. The Launcher program "ALF-WirelessMedia for Windows" and "ALF-WirelessMedia Pro for Windows"...
  • Page 83 ALF-UC1 Right-Click on the “*.service” or “*.serviceC3”, for example right-click on ALF- WirelessMediaAutoServiceC3.exe” as shown above, and click to End Process. Recheck the task manager to ensure the “ALF-WirelessMedia” program is not still running in the task manager. Also recheck to ensure there isn’t any “ALF-WirelessMedia” in the C:\Users\***(userame)\AppData\Local\”WirelessMedia”.

  • Page 84: Operation Guide

    ALF-UC1 8. Operation Guide 8.1 Mirroring PC desktop You can operate the ALF-WirelessMedia for Windows optionally with or without the Dongle. If there are several participants in a meeting, mixed operation is also possible. 8.1.1 Extended Desktop for Windows 10 The Launcher program "ALF-WirelessMedia...
  • Page 85 ALF-UC1 “Exit”: End APP. Exiting the App completely.  If you click the cross "X" in the upper right corner of the app, the app in the task bar is only minimized and can be recalled again from the taskbar at any time.

  • Page 86: Microsoft Windows Pc/Laptop Without Dongle

    ALF-UC1 8.1.3 Microsoft Windows PC / Laptop without Dongle For the first time user, you have to first copy the Launcher program “ALF-WirelessMedia for Windows” onto your laptop. When the Launcher program is already loaded, continue with Step 2. When Launcher program is not yet installed on PC, refer to chapter 7.4.
  • Page 87 ALF-UC1 Click “Ready to share” when the window color is static red, the screen will then mirror to the main screen. Click the visual button again to stop mirroring, window color turns green again. You can minimize the APP-window. In Windows taskbar you can see if screen is being mirrored not.

  • Page 88: Options For Microsoft Windows Pc / Laptop - Extended Screen

    ALF-UC1 “Exit”: End APP. Exiting the App completely.  If you click the “close” button in the upper right corner of the app, the app in the task bar is only minimized and can be recalled again from the taskbar at any time.
  • Page 89 ALF-UC1 “Options”: Extended Screen:  Transfers extended desktop of active source. Depending on your operating system, you may require the installation of the virtual driver “Extended Display” for function with Windows 10. The primary screen (1) is displayed on the laptop, and the virtually extended screen (2) is displayed on the main screen.
  • Page 90 ALF-UC1 Keep Aspect Ratio:  Keep the original aspect ratio to display on the main screen. Stream Mode:  Fluency Priority: Default  Quality Priority: Better quality on video and audio.  Low Latency Mouse:  The setting is applied individually for PC use only. The shape of the mouse-pointer is equal in shape in the application.

  • Page 91: Mac Os Pc/Laptop With Dongle

    ALF-UC1 8.1.5 MAC OS PC/Laptop with Dongle At least operation system macOS 10.9 is required. For first time user, you have to first copy the Launcher program “ALF-WirelessMedia for MAC” on your laptop. Run this Launcher program. When the Launcher program “ALF-WirelessMedia for MAC” is already loaded, continue with Step 2.

  • Page 92: Mac Os Pc/Laptop Without Dongle

    ALF-UC1 8.1.6 MAC OS PC / Laptop without a Dongle For first time user, you have to first copy the Launcher program “WirelessMedia for Mac” onto your Mac. When the Launcher program is already loaded, continue with Step 2. When Launcher program “WirelessMedia-macOS.app” is not yet installed on PC, refer to chapter 7.4.
  • Page 93 ALF-UC1 Click the visual button again, to stop mirroring, window color shows green again. You can minimize the APP-window, in the top menu-bar you can see if the screen is mirroring not. Right click the WirelessMedia status icon in the top menu-bar to open up the context-menu.

  • Page 94: Options For Apple Macos, Macbook - Extended Screen

    ALF-UC1 8.1.7 Options for Apple MacOS, MacBook – Extended Screen Click the icon in App to open / close “options”. “Options”: Extended Screen:  Transmits the Extended desktop (“Use a Separate Display”) only via AirPlay, when activated for Display on WirelessMedia.

  • Page 95: Transmitting Ios Mobile Device

    ALF-UC1 8.2 Transmitting IOS mobile device 8.2.1 How to use AirPlay? AirPlay: WirelessMedia Base Unit supports “Airplay”, which enables mirroring the desktop of your Apple device such as iPhone, iPad etc. onto the main screen. (Note: iOS devices must first be connected to the Wi-Fi of “WirelessMedia”).
  • Page 96 ALF-UC1 Select the base unit you want to connect to, enter the password and mirror. When sharing to the main screen, it displays OSD “Welcome ***” on the home page. For example, if we connect to it by a HUAWEI-PLA-AL00, it shows a “Welcome HUAWEI-PLA-AL00” on screen, as shown below.

  • Page 97: Wifi Recommendation Setting

    ALF-UC1 9. WIFI Recommendation Setting 9.1 Check the WIFI configuration on the base unit Please use Wi-Fi analysis software to check the Wi-Fi environment, in order to select clean or unused WIFI between the 2.4GHz and 5Hz frequency. Wi-Fi channel as below: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11...
  • Page 98 ALF-UC1 Bad wireless connection. The Wi-Fi problems. Use a Wi-FI scanner to find a  connection between the Interference in the radio available wireless  transmitter and the base unit is not channel. frequencies and channels, stable. Overload in the radio channel.
  • Page 99 ALF-UC1 USB not responding Some types of USB devices If possible, change the USB port  might be blocked as per policy on the laptop the company policy. USB port setting on the lap-  top might limit the usage of...
  • Page 100 ALF-UC1 Your content is removed from the Connection to the Base Unit is lost. WirelessMedia tries to restore the display and the LEDs on the button connection automatically. If it fails, are blinking. the LEDs on the button start blinking red.
  • Page 101 ALF-UC1 An active virus scanner can block Check the filter-settings in the Audio. Virus scanner. De-activate the player to check. There is no sound with MacBook. You need the admin password Problem of sound-flower App,  which is integrated in driver WirelessMedia.app.
  • Page 102 ALF-UC1 1. Limited warranty 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever.
  • Page 103 ALF-UC1 1.13 Please be aware that the Company’s products and components have not been tested with competitor’s products and therefore the Company cannot warrant products and/or components used in conjunction with competitor’s products. 1.14 The appropriateness of the goods for the purpose intended is only warranted to the extent that the goods are used in accordance with the Company’s installation, classification, and usage instructions.
