Summary of Contents for Lantronix NM2-GXE-2230 201 Series
- Page 1 NM2-GXE-2230-xx-201 Series Install Guide Part Number 33811 Revision E September 2022...
- Page 2 Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
-
Page 3: Table Of Contents
Lantronix NM2-GXE-2230-xx-201 Install Guide Contents ............................4 Product Description ............................4 Ordering Information ......................... 5 Supported Fiber Connections ..............................5 Driver Support ................................5 Features ..............................6 Specifications ..........................6 Regulatory Compliance Declaration of Conformity ........................... 7 ............................7 Package Contents ............................. -
Page 4: Product Description

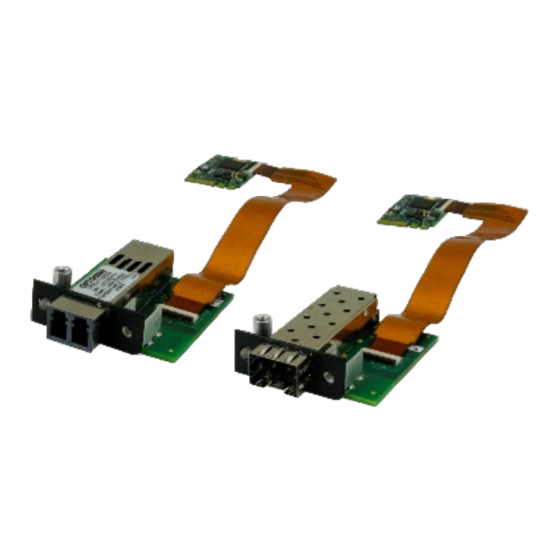

NM2-GXE-2230-xx-201 Install Guide Product Description Lantronix NM2-GXE-2230-xx-201 Series M.2 Gigabit Ethernet Fiber Network Interface Cards (NICs) provide a fixed LC fiber optic interface or a 1000Base-X Open SFP Slot for the Dell OptiPlex™ 3060/5060/7060, 7070 and 7080 Micro PCs. The NM2-GXE-2230-xx-201 Series consists of an M.2 NIC that installs into the OptiPlex PC’s M.2 “A or E keyed”... -
Page 5: Supported Fiber Connections
Lantronix NM2-GXE-2230-xx-201 Install Guide Supported Fiber Connections 1000BASE-SX, 850nm, MM, LC (fixed optic) • • 1000BASE-X, SFP Slot Driver Support Windows 10, 8.1, 8, and 7 (32 and 64 bit); Linux Features • M.2 Gigabit Ethernet Fiber Network Interface Card (NIC) •... -
Page 6: Specifications
Lantronix NM2-GXE-2230-xx-201 Install Guide Specifications • Standards: IEEE 802.3-2012 • Bus Slot: M.2 - ‘2230-D4-A-E’ • Data Rate: 1000 Mbps (full duplex only) • Max Frame Size: 9014 bytes • Status LEDs: LINK/ACT ON = Link, Flashing = Activity •... -
Page 7: Declaration Of Conformity
Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems ("High Risk Activities"). Lantronix and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. -
Page 8: Reference Views
Lantronix NM2-GXE-2230-xx-201 Install Guide Reference Views Product Views These views are shown as example only and not representative of all SKUs. There is variation in the FFC cable between NM2-GXE-2230-xx-201 and GXE-2230-xx-201A as they are designed to fit the designated OptiPlex systems. -
Page 9: Optiplex Views
Lantronix NM2-GXE-2230-xx-201 Install Guide OptiPlex Views These views are shown as example only and not representative of all OptiPlex systems. The NM2 NIC part numbers are designed to fit the specified OptiPlex systems. 33811 Rev. E https://www.lantronix.com/... -
Page 10: Optiplex 7060 Micro Ports & Slots
Lantronix NM2-GXE-2230-xx-201 Install Guide OptiPlex 7060 Micro Ports & Slots These views are shown as example only and not representative of all OptiPlex systems. The NM2 NIC part numbers are designed to fit the specified OptiPlex systems. Dell OptiPlex 7060 Micro Front View: 1. Power button and power light. 2. Hard drive activity light. -
Page 11: Installing The Nm2-Gxe-2230-Xx-201 In The Dell Optiplex
4. Holding the NIC by the edges, remove it from its shipping package and place it on an antistatic surface. 5. Check the NIC for signs of damage, particularly on the PCB edge connector. Caution: Never attempt to install a damaged NIC card. If the NIC is damaged, report it to Lantronix. 6. Remove the OptiPlex Side Cover. See Removing the Side Cover below. -
Page 12: Removing The Side Cover
Lantronix NM2-GXE-2230-xx-201 Install Guide Removing the Side Cover 1. Follow the procedure in “Before working inside your computer”. 2. To remove the cover: a) Slide the release latch on the back side of the system until it gives a click sound to unlock the side cover [1]. -
Page 13: System Board / Layout (7060 Micro)
Lantronix NM2-GXE-2230-xx-201 Install Guide System Board / Layout (7060 Micro) These views are shown as example only and not representative of all OptiPlex systems. The NM2 NIC part numbers are designed to fit the specified OptiPlex systems. For OptiPlex 7070 Information OptiPlex 7070 Documentation: https://www.dell.com/support/home/us/en/04/product-... -
Page 14: Installing The Nm2-Gxe-2230-Xx-201A In The Dell Optiplex
Lantronix NM2-GXE-2230-xx-201 Install Guide Installing the NM2-GXE-2230-xx-201A in the Dell OptiPlex The NM2-GXE-2230-xx-201 Series consists of a M.2 NIC that installs into the OptiPlex Micro PC’s M.2 “A or E keyed” interface, and a fiber optic adapter that installs into the OptiPlex Micro PC’s Option port. Review the “Installation... -
Page 15: Installed Views
Lantronix NM2-GXE-2230-xx-201 Install Guide Installed Views These views are shown as example only and not representative of all OptiPlex systems. The NM2 NIC part numbers are designed to fit the specified OptiPlex systems. 33811 Rev. E https://www.lantronix.com/... -
Page 16: Nm2-Gxe-2230-Xx-201 And -201A Views
Lantronix NM2-GXE-2230-xx-201 Install Guide NM2-GXE-2230-xx-201 and -201A Views The specific M.2 Gigabit Ethernet Fiber NIC required is dependent on whether the OptiPlex 7080 is a 35W or 65W system. For OptiPlex 7080 DGPU systems, please refer to our traditional PCIe NICs. - Page 17 Lantronix NM2-GXE-2230-xx-201 Install Guide NM2-GXE-2230-SFP-201A Installed View 33811 Rev. E https://www.lantronix.com/...
-
Page 18: Optiplex 7080 Micro Views
Lantronix NM2-GXE-2230-xx-201 Install Guide OptiPlex 7080 Micro Views 1. Side cover 2. Fan assembly 3. Heatsink 4. Speaker 5. Hard drive caddy 6. System board 7. Chassis 8. Processor 9. M.2 WLAN 10. Memory module 11. SATA Flexible Flat Cable (FFC) bracket 12. -
Page 19: Optiplex 7080 Micro Ports & Slots
Lantronix NM2-GXE-2230-xx-201 Install Guide OptiPlex 7080 Micro Ports & Slots . Power Button . Universal Audio Jack . Line Out . USB 3.2 Gen2 Type-C Port . USB 3.2 Gen 2 Type-A Port (with PowerShare) . Wireless Antenna Slots . Optional: Serial RS232/PS/2 Ports/DP1.4/HDMI 2.0b/VGA/USB 3.2 Gen 2 Type C with DP Alt Mode... -
Page 20: Removing The 7080 Micro Side Cover
Lantronix NM2-GXE-2230-xx-201 Install Guide Removing the 7080 Micro Side Cover Prerequisites: 1. Follow the procedure in “Before working inside your computer”. Note: Ensure that you remove the security cable from the security-cable slot (if applicable). About this task: The following images indicate the location of the side cover and show the removal procedure. -
Page 21: Installing The Optiplex 7080 Micro Side Cover
Lantronix NM2-GXE-2230-xx-201 Install Guide Installing the OptiPlex 7080 Micro Side Cover Prerequisites: If you are replacing a component, remove the existing component before performing the installation procedure. About this task: The following image indicates the location of the side cover and provides a visual representation of the installation procedure. -
Page 22: System Board Layout (7080 Micro 35W)
Lantronix NM2-GXE-2230-xx-201 Install Guide System Board Layout (7080 Micro 35W) System Board Layout (7080 Micro 65W) 33811 Rev. E https://www.lantronix.com/... -
Page 23: Optiplex 7080 Micro Installed Views
Lantronix NM2-GXE-2230-xx-201 Install Guide OptiPlex 7080 Micro Installed Views About Dell OptiPlex 7080 drivers https://www.dell.com/support/home/en-us?app=drivers How to update your Dell drivers: Step 1: Identify your product at the link above. Step 2: Run the detect drivers scan to see available updates. - Page 24 Lantronix NM2-GXE-2230-xx-201 Install Guide PXE Boot Loader from Intel.com PXE boot loader image pre-loaded: https://downloadcenter.intel.com/download/19186/Intel-Ethernet- Connections-Boot-Utility-Preboot-Images-and-EFI-Drivers. Intel i210 PROSet Drivers from Intel.com If your PC does not automatically detect the NM2-GXE-2230-xx-201 NIC, download and install the standard i210 PROSet drivers from Intel at http://www.intel.com/content/www/us/en/support/network-and-i-o/ethernet-...
-
Page 25: Status Led
Lantronix NM2-GXE-2230-xx-201 Install Guide Status LED The Media Converter has a status LED for checking Link/Activity: Link/ACTivity LED On = Link; Flashing = Activity. Color is amber when 100M. Troubleshooting This section lists some common problems, their causes, and potential recovery steps. -
Page 26: Record Device And System Information
Lantronix NM2-GXE-2230-xx-201 Install Guide Record Device and System Information After performing the troubleshooting steps, and before calling or emailing Technical Support, please record as much information as possible to help the Tech Support Specialist. Record the following information: 1. Product ID: ___________________________ MAC Address: ________________________________________... - Page 27 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33811 Rev. E https://www.lantronix.com/...
