HDC-5016 ... 5064
IP to 16, 32, 48 or 64 QAM Modulator
EDGE-QAM User Manual
Software Version:
09.02.34 Build 272.00 Jul 10 2022
Hardware Version:
02.41.04
Web Version:
1.51
Note: All data in this manual are subject to change w/o any notification

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLANKOM HDC-5016 and is the answer not in the manual?

Questions and answers

Related Manuals for Irenis BLANKOM HDC-5016

Summary of Contents for Irenis BLANKOM HDC-5016

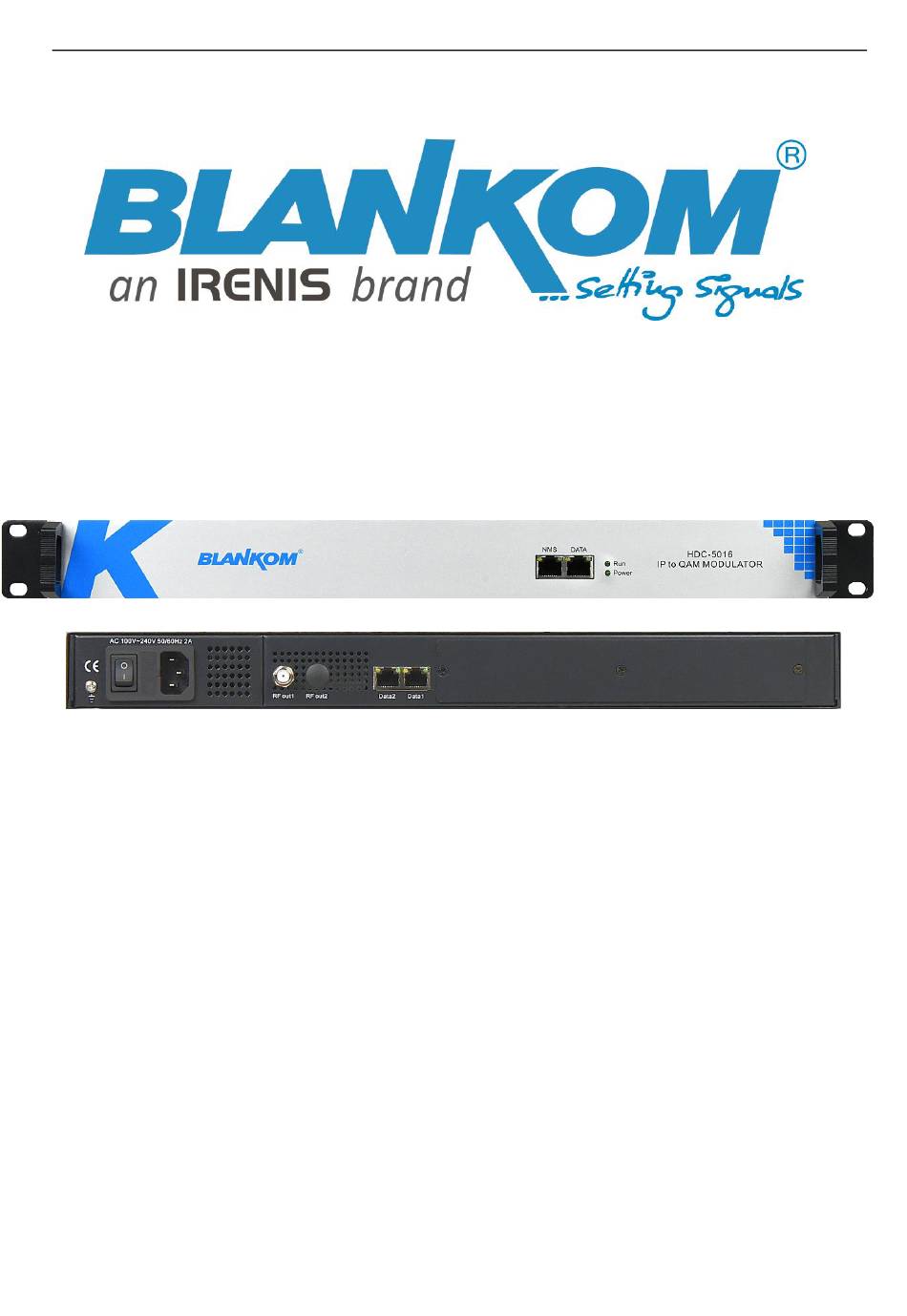

  • Page 1 HDC-5016 … 5064 IP to 16, 32, 48 or 64 QAM Modulator EDGE-QAM User Manual Software Version: 09.02.34 Build 272.00 Jul 10 2022 Hardware Version: 02.41.04 Web Version: 1.51 Note: All data in this manual are subject to change w/o any notification...

  • Page 2: Table Of Contents

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual Table of Content Chapter 1 Product Overview 1.1 OUTLINE 1.2 KEY FEATURES 1.3 BLOCK DIAGRAM (FOR THE 16 QAM CHANNEL VERSION) 1.4 AGILE CHANNEL SETTING EXAMPLE 1.5 SPECIFICATIONS Chapter 2: Connection Description 2.1 FRONT & REAR PANEL Chapter 3 Installation Guide 3.1 ACQUISITION CHECK 3.2 INSTALLATION PREPARATION...
  • Page 3 HDC-5016-HDC-5064 IP to QAM Modulator User Manual CONTACT: Max. Levels/Min. Levels for Antenna Sockets accord. DIN EN50083-7 Application Example Master- Slave System: Date 8. Dezember 2022 *) depend on model types BLANKOM-HDC-5016-32_IP2QAM-modulator-V1.6-RR-12-2022.docx...
  • Page 4 HDC-5016-HDC-5064 IP to QAM Modulator User Manual This Product is manufactured in PRC (China), HS-Code: 85176200 Anmerkung: Alle von uns veröffentlichten Betriebsanleitungen richten sich an den Antennen- und IT-Fachmann, der über grundlegende Kenntnisse der Empfangs-, Netzwerk- und Anlagentechnik verfügt. Die Einhaltung aller relevanten Vorschriften und Richtlinien für den Aufbau und Betrieb von solchen Anlagen obliegt dem Installateur und/oder dem Betreiber.

  • Page 5: Chapter 1 Product Overview

    Chapter 1 Product Overview 1.1 Outline The BLANKOM HDC-5016---5064 IP to QAM Modulator is the 5th generation Mux-scrambling- modulating all-in-one device. With 16 multiplexing channels, 16 scrambling channels and 16 QAM (DVB-C) modulator channels, it supports a maximum of 1024 IP input streams through the GbE ports and output 16-64 non-adjacent DVB-C QAM channels (50MHz...960MHz) through the combined RF...

  • Page 6: Agile Channel Setting Example

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual 1.4 Agile Channel Setting Example This EDGE QAM can be used with agile independent channel settings HDC-5032: HDC-5048 comes with 2 RF outputs: HDC-5064 also comes with 2 RF outputs and can use 6 GE inputs (4*RJ45, 2*SFP) Date 8.

  • Page 7: Specifications

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual 1.5 Specifications IP to QAM Modulator with up to 2x* 512 IPTV input, 16…64 DVB-C and 16…64 IPTV Function MPTS output INPUT IP input 2x 512* from 3 IP input: 3 Gigabit Ethernet Port (Max 840 Mbps for each GigE input) Transport protocol TS over UDP/RTP, unicast and multicast, IGMP V2/V3 MULTIPLEXING...

  • Page 8: Chapter 2: Connection Description

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual Chapter 2: Connection Description 2.1 Front & Rear panel NMS/CAS: Network management port and CAS data port + separate DATA-IN-Port Front: Grounding Rear left Power switch, Fuse AC IEC Power Socket … RF output port …...

  • Page 9: Environmental Conditions

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual 3.2.1 Environmental Conditions Item Requirement Electric Isolation, Dust Free Machine Hall 10 Volume resistivity of ground anti-static material: 1x10 ...1x10 , Grounding Floor current limiting resistance: 1m (Floor bearing should be greater than 450kg/m Environment 5...40℃...

  • Page 10: Signal And Network Management (Nms) Cable Connection

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual solely connects to protective ground, it should adopt independent way, say, share the same ground with other devices. When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to the IP QAM Modulator, user should set the power switch to “OFF”.

  • Page 11: Summary

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual 4.2.1 Summary When the login has been confirmed, it displays the summary status as in Figure-2: You can select any item here to enter the corresponding interface to check information or set the parameters. 4.2.1.1 Setting Date | Time The device supports setting of Date and Time by a) browser you are using to the web-IF –...

  • Page 12: Parameters "Ts Config" - Menu

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual And you are done – but your Device need a connection to these NTP addresses. -> Local Gateway settings should fit as well to asure the connection to external NTP servers. 4.2.2 Parameters “TS Config” - Menu ⚫...
  • Page 13 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Program Modification: The multiplexed program information can be modified by selecting the program in the ‘output’ area. For example, when clicking on a service, it opens a popup as dialog box (Figure 6) where you can change or insert new data or even rename the service.
  • Page 14 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Several parameters can be modified and added in this GENERAL settings menu. Examples will follow later. VCT is for American DVB-C/ATSC norms only and can be skipped in normal DVB-C Annex A/C -rest-of-the-world-modes. ➢...
  • Page 15 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Example: Injection from an MPTS into its DVB-C output: We are passing just 4 TV Services from the Input DVB-S2 MPTS to the Output in QAM: We add the PID 12hex (= EIT table for EPG) to the output. REMARK: Please do not perform a PID remap- just to be sure nothing will mismatch later.
  • Page 16 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Parameters → TS Config: Select “TS Config”, to display the menu where you can configure the output and also the IP-Input parameters in this interface. (Figure-3): Date 8. Dezember 2022 *) depend on model types BLANKOM-HDC-5016-32_IP2QAM-modulator-V1.6-RR-12-2022.docx...
  • Page 17 HDC-5016-HDC-5064 IP to QAM Modulator User Manual If you know, that your input streams are NOT using the same PID-numbers in their SPTS/MPTS streams Tables (DVB-PSI/SI) you can uncheck PID-remapping which is for avoiding conflicts. (Like as you are using different devices in a network with same IP addresses = Conflict) If you know you are not having/passing CA-PIDs in your input streams, you can check CA-Filter.
  • Page 18 HDC-5016-HDC-5064 IP to QAM Modulator User Manual The data rate is shown PARSE the content to see the Services containing in that stream: Uncheck PID remap and CA filter to keep the original stream for pass through mode. Date 8. Dezember 2022 *) depend on model types BLANKOM-HDC-5016-32_IP2QAM-modulator-V1.6-RR-12-2022.docx...
  • Page 19 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Remark: The Output max Data rate depends on the modulator output settings of this QAM channel: 256QAM, SR=7000 = > 51Mb/s. These settings can be well prepared before you configure the Input-TS in the Modulator section to avoid TS overflows because the modulator outputs were set to low values like 64QAM and low SR.

  • Page 20: Monitor

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual This would pass the whole content to the output (QAM + IP MPTS out). TSID and ONID should be already well pre- prepared and set according to your needs in the Master-Headend-Streamer device. MONITOR: The Input STATUS will show the overview about the incoming streams: You can clear the CC errors from the input –...
  • Page 21 HDC-5016-HDC-5064 IP to QAM Modulator User Manual While the output status shows the 2 different ones: Modulator and IP (as copy of the TS 1-16* Multiplexes) The advantage of pass-through mode is simple to understand: The EPG information will be kept in the TS. The TDT/TOT and other tables will be passed as well. The NIT will be passed as well (if containing) but: It might be a wrong one from a SAT-frequency which is of course not valid for a cable TV network.
  • Page 22 HDC-5016-HDC-5064 IP to QAM Modulator User Manual OUT: We partly must filter out the invalid NIT but this is not possible when full pass through is selected. Also, EIT ‘others’ should be erased as well as the invalid BAT and CAT… Even trying to manually insert an own designed WEB-NIT: Date 8.
  • Page 23 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Doesn’t do anything when we operate in the pass through mode. So the pass through is only worth for Master- Slave HE-designs like shown on page 2 : To be used in SUB Headends.

  • Page 24: Multiplex-Mode

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual Multiplex-Mode So, we really need to go for MUX: multiplex, and add relevant PIDs: The NIT should be filtered out to the QAMs by default, because if the source is a Stream TS from original might be a Satellite Transponder, the NIT is not valid for a CATV Network.
  • Page 25 HDC-5016-HDC-5064 IP to QAM Modulator User Manual We see, the empty NIT has been added from our settings as well as TDT/TOT. But it needs to be filled with the local DATA of each QAM-Frequency you are pushing out. Of course, it’s work … Date 8.
  • Page 26 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Example if you pass the SAT-NIT from the input CH1 which is wrong (because from SAT): so better don’t do that and create an own (See above). Maybe worth to mention: The Logical channel numbers for each TV/Radio Channel for the STB’s or TV sets as DVB-C receivers in the CATV network to sort their Channel list –...
  • Page 27 HDC-5016-HDC-5064 IP to QAM Modulator User Manual So, we should be careful adding the real channels into the NIT: From here: After APPLY button: Date 8. Dezember 2022 *) depend on model types BLANKOM-HDC-5016-32_IP2QAM-modulator-V1.6-RR-12-2022.docx...
  • Page 28 HDC-5016-HDC-5064 IP to QAM Modulator User Manual It’s always a good Idea to SAFE your config… Back to EIT: And the EIT is here BUT if not processed… also, the EIT Other table which probably will not be conform with our other channel’s which we are creating here and do not take from SAT or from the IP.
  • Page 29 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Single streams can be added to a TS like: REMARK: Single streams often do not contain EIT / EPG PID’s -> So an EIT passing isn’t possible anyway. For mux operation EIT cannot be processed but passed only from a selected Input stream. Date 8.
  • Page 30 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Mayor channel number and minor channel numbers are used in the ATSC DVB-C Annex B ITU-J standard and should be ignored by the ‘normal DVB Annex A/C’ receivers. Same for the ‘General’ item VCT: LCN’s in the NIT and other values should be set after all content and all muxes/QAM channels have been already configured.
  • Page 31 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Minor & Mayor channel Numbers are an extension in the ATSC tables and not relevant for normal DVB- operating – so will be ignored. Service name and other values can be simply been edited and finally taken by pressing Apply;...
  • Page 32 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Parameters → Modulator: From the menu on left side of the webpage, clicking ‘Modulator’, it will display the interface as Figure-11 where to set RF output parameters. Click to set all channels RF QAM output parameters Click to set each...
  • Page 33 HDC-5016-HDC-5064 IP to QAM Modulator User Manual DVB-T2 channels OTA would might interfere or we can integrate them into our network. So we should exactly skip these in our DVB-C channels: Example Region northern Germany: ARD-Mux ch23 490 MHz ZDF-Mux ch36 594 MHz NDR-Mux...
  • Page 34 HDC-5016-HDC-5064 IP to QAM Modulator User Manual And we are sure to not interfere to DVB-T2: After all IN and Outputs have been configured, your LCN design should be configured: Date 8. Dezember 2022 *) depend on model types BLANKOM-HDC-5016-32_IP2QAM-modulator-V1.6-RR-12-2022.docx...

  • Page 35: Parameters → Ip Stream

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual The LCN’s (Logical Channel Numbering) are processed and transferred along and within the NIT (Network Information Table), so this should be done before you create the NIT – Which is the mayor Table for tuning your DVB-Receivers in a fast manner: The Tuner will extract the NIT on the first channel it will find and can fast tune to...
  • Page 36 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Figure-12 config all and selected streams… Modify it to your needs: Quick setup also configs an automatic counting and increasing of +Port’s. RTP is more reliable for longer distances. Pkt-Length should stay @ 7, Nullpacket filter can be used to send the streams as VBR instead of CBR (incl.

  • Page 37: System → Network

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual System → Network: Selecting ‘Network’, will enter the menu as shown in following where you can set/change network parameters. Date 8. Dezember 2022 *) depend on model types BLANKOM-HDC-5016-32_IP2QAM-modulator-V1.6-RR-12-2022.docx...
  • Page 38 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Remark: The 2x RJ45 Data-Ports 1+2 (and DATA-front*) almost share the same RJ45 chip and so the NM/Gateway IP addresses depending on HW/SW versions. A Scrambler connection can be set here as well which needs to correspond with the external CA-Server and its IP address as well: Remember the CAS settings menu: Date 8.
  • Page 39 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Parameters → Scrambler: Main menu: From the menu on left side of the webpage, clicking “Scrambler”, it displays the interface where users can choose the programs to scramble. A new CA function is the AC-mode*: In combination with a Subscriber management System and the CAS you can create packages for Groups of PAYTV customers also time limited for hiring the content: We will not explain here what a CAS is and how Conditional Access PAYTV is working, that would...
  • Page 40 HDC-5016-HDC-5064 IP to QAM Modulator User Manual The AC Table can be edited externally with the corresponding scramblers Subscriber Management System (SMS) And backup as file as well as loaded from PC or copied from another QAM Modulator/scrambler. Single PID’s can be chosen for scrambling with up to 6 different CAS as simulcrypt usage. Of course, you’ll need these CA-Servers and their connection to the device by the NMS-Ethernet port to exchange the common Control Word(s) and need all data from it to start the encryption process (Advanced experts will know…).
  • Page 41 HDC-5016-HDC-5064 IP to QAM Modulator User Manual AC is a code for managing the charging of STBs (by AC table: working with CAS&SMS&STBs). - it's a table with AC data, for programs to selecting when editing To understand the relation of program & AC & product: programs on "Scrambler"...

  • Page 42: System → Password

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual System → Password: From the left side menu of the webpage, selecting “Password”, will display the screen where you are able to set/change the login account and password for the web access by the NMS-Port: System →...

  • Page 43: System → Log

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual Please note, during the development of the HDC-5016 the HW/FPGA and Soft- and Firmware was necessary to change (Chipset availabilities etc.…) so there might be incompatible Version’s from one generation to the next and e.g. The config-files cannot be copied and uploaded from one older to the newer ones.

  • Page 44: Installation Pre-Conditions

    Blankom / IRENIS GmbH. IRENIS GmbH reserves the right to revise this publication and make changes in its content from time to time, whereby it shall not be obligatory for IRENIS GmbH to provide notification of such revision or change.

  • Page 45: Installation Notes

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual Installation Notes All types of the IRENIS-BLANKOM family are 19“devices with 1 RU height designed for installation in 19” racks. In addition to the front panel screws an internal module support is required at the rack.
  • Page 46 HDC-5016-HDC-5064 IP to QAM Modulator User Manual We assume, that the user is familiar with all abbreviations mentioned in this manual. Date 8. Dezember 2022 *) depend on model types BLANKOM-HDC-5016-32_IP2QAM-modulator-V1.6-RR-12-2022.docx...
  • Page 47 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Appendix DB Conversions of Power @ 75Ω / Umrechnungstabelle dBµV <-> dBm dBmV dBµV dBm 75Ω mW 75Ω -40.75 2.51 8.4E-05 -39.75 2.82 1.1E-04 -38.75 3.16 1.3E-04 -37.75 3.55 1.7E-04 -36.75 3.98 2.1E-04 -35.75 4.47 2.7E-04...
  • Page 48 HDC-5016-HDC-5064 IP to QAM Modulator User Manual dBmV dBµV dBm 75Ω mW 75Ω -11.75 70.79 0.067 -10.75 79.43 0.084 -9.75 89.13 0.106 -8.75 100.00 0.133 -7.75 112.20 0.168 -6.75 125.89 0.211 -5.75 141.25 0.266 -4.75 158.49 0.335 -3.75 177.83 0.422 -2.75 199.53 0.531...
  • Page 49 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Appendix A Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales.

  • Page 50: Safety Instructions (Eng)

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual Safety instructions (ENG) Read the safety instructions carefully before assembling or commissioning the device and ensure that you comply with them 1. Installation • Danger: The device may only be installed and started up by competent people (see EN 60065). •...
  • Page 51 HDC-5016-HDC-5064 IP to QAM Modulator User Manual • Danger: Ensure that there is a clearance of at least 20cm around the device. The device ventilation is not permitted to be impaired by covering the ▪ Ventilation openings with objects such as newspapers, tablecloths, curtains, etc. (risk of fire). •...

  • Page 52: Sicherheitshinweise (Ger)

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual Sicherheitshinweise (GER) Sicherheitshinweise bitte vor Montage bzw. Inbetriebnahme des Gerätes sorgfältig lesen und befolgen. Installation Gefahr: Das Gerät darf ausschließlich von sachverständigen Personen (siehe EN 60065), installiert und in Betrieb genommen werden. Gefahr: Das Gerät und/oder die Verteilperipherie muß vor Inbetriebnahme gemäß EN 60728-11 vorschriftsmäßig geerdet sein (Potentialausgleich) und bleiben, auch wenn das Gerät ausgebaut wird.
  • Page 53 Reparatur, andernfalls droht Gefahr eines elektrischen Schlags (Lebensgefahr) und Brandgefahr. Warnung: (Bei optischen Sendern sowie deren Verteilperipherie) ziehen Sie den Netzstecker bevor das Gerät ausgebaut wird. Bei Fragen zur Reparatur wenden Sie sich an den IRENIS-Service: E-Mail: info@blankom.de , Kontakt: www.blankom.de 6.

  • Page 54: Installation Guide For F-Connectors

    HDC-5016-HDC-5064 IP to QAM Modulator User Manual Installation guide for F-connectors: / Installationshinweis für den F-Anschluß: Die LNB-Anschlüsse sind meist entsprechend gekennzeichnet The LNC –connectors at Multiswitches are almost marked as: HH= Horizontal High-Band HL = Horizontal Low-Band = LH VL = Vertical Low-Band = LV VH= Vertical High-Band = HV Elektronische Geräte gehören nicht in den Hausmüll, sondern müssen - gemäß...
  • Page 55 HDC-5016-HDC-5064 IP to QAM Modulator User Manual Contact: IRENIS GmbH Hauptstr. 29 31171 Nordstemmen- Germany Phone: +49 5069 4809781 Managing Director: Dipl.Ing. Murad Önol Commercial Register: HRB 206370 / District Court Hildesheim Web: www.blankom.de E-Mail: info@blankom.de Conversion Table Level (dBµV) / Voltages (mV) Level (dBµV)
