Irenis BLANKOM HDC 5004 User Manual

Ip to 4 qam modulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HDC 5004
IP to 4 QAM Modulator
EDGE-QAM User Manual
Software Version: 1.12 Build 100 Dec 10 2019
Hardware Version: 5.40
Web Version: 1.03
OS Version: 01.01.02.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLANKOM HDC 5004 and is the answer not in the manual?

Questions and answers

Related Manuals for Irenis BLANKOM HDC 5004

Summary of Contents for Irenis BLANKOM HDC 5004

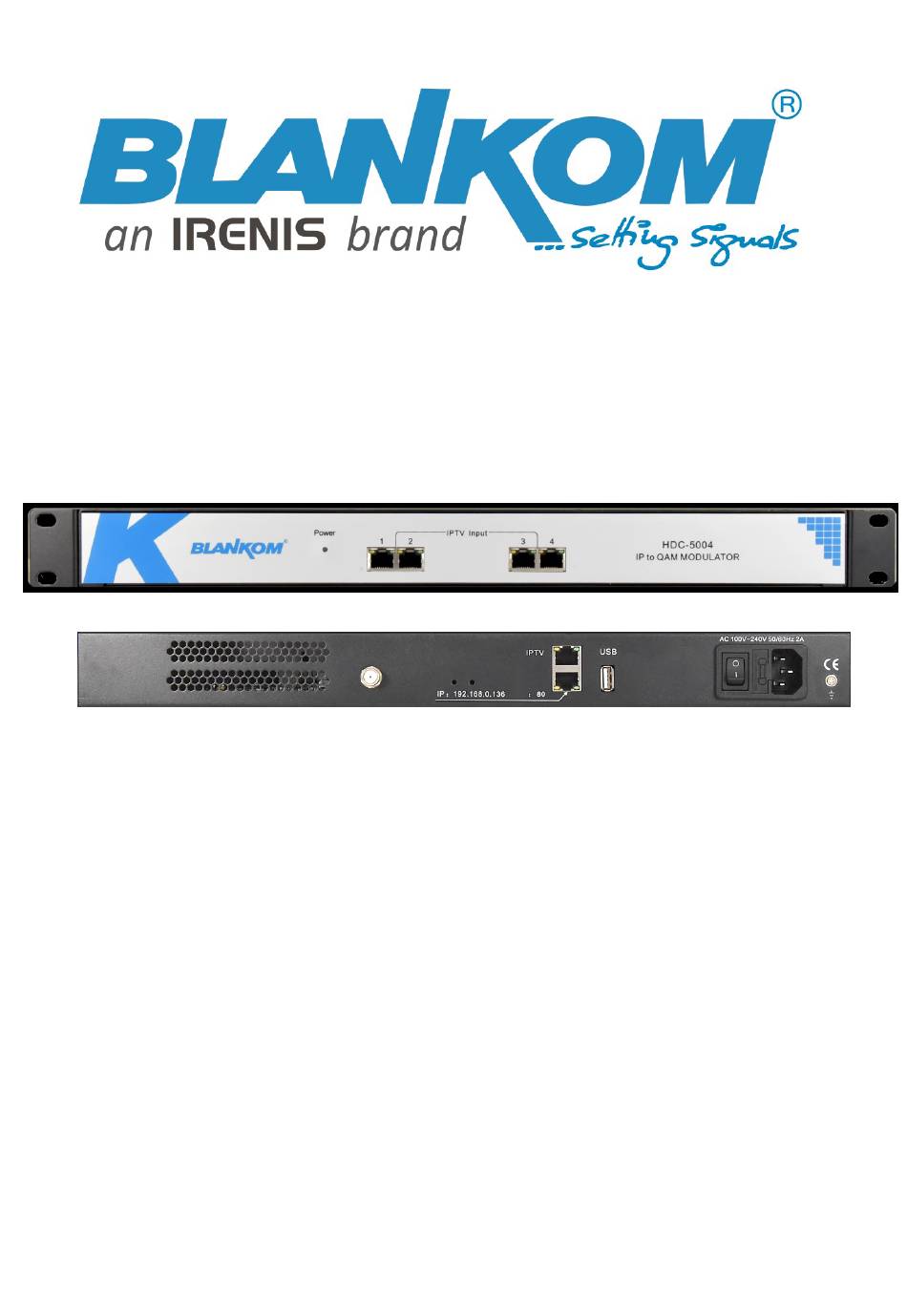

  • Page 1 HDC 5004 IP to 4 QAM Modulator EDGE-QAM User Manual Software Version: 1.12 Build 100 Dec 10 2019 Hardware Version: 5.40 Web Version: 1.03 OS Version: 01.01.02.06...

  • Page 2: Table Of Contents

    Table of Content Chapter 1 Product Overview 1.1 OUTLINE 1.2 KEY FEATURES 1.3 BLOCK DIAGRAM 1.3.1 APPLICATION EXAMPLE 1.5 SPECIFICATIONS Chapter 2: Connection Description 2.1 FRONT & REAR PANEL Chapter 3 Installation Guide 3.1 ACQUISITION CHECK 3.2 INSTALLATION PREPARATION 3.2.1 ENVIRONMENTAL CONDITIONS 3.2.2 GROUNDING REQUIREMENT 3.2.3 FRAME GROUNDING 3.2.4 DEVICE GROUNDING...
  • Page 3 BETRIEB WARTUNG REPARATUR VERKAUF ENTSORGUNG INSTALLATION GUIDE FOR F-CONNECTORS: CONTACT:...

  • Page 4: Chapter 1 Product Overview

    Chapter 1 Product Overview 1.1 Outline This HDM-5004 IP to QAM modulator is an all-in-one device integrated with multiplexing, scrambling and modulation in 1RU. It has 512 IP (SPTS/MPTS) input over UDP/RTP with 4 (5) Ethernet ports. After multiplexing, scrambling and modulating process, it gives 4 DVB-C adjacent carriers (30MHz…1000MHz) output through the RF output.

  • Page 5: Application Example

    HDC-5004 IP to QAM Modulator User Manual 1.3.1 Application Example We assume, that the user is familiar with all abbreviations mentioned in this manual which is written for skilled RF technicians and DVB-specialists. Date 28. Januar 2020 BLANKOM-HDC-5004_IP2QAM-modulator-V1.4-RR-01-2020...

  • Page 6: Specifications

    HDC-5004 IP to QAM Modulator User Manual 1.5 Specifications Input 512 from 4x IP inputs by 100Mb/s Ethernet Ports Transport Protocol Input TS over UDP/RTP, unicast and multicast, IGMP V2/V3 Transmission Rate max 84Mbps for each IPTV-1…4 input Remapping Max. 780 PIDs per Channel Output Channel 4 adjacent ->...

  • Page 7: Chapter 2: Connection Description

    HDC-5004 IP to QAM Modulator User Manual Chapter 2: Connection Description 2.1 Front & Rear panel Power LED, 4x IPTV 1…4 Input stream RJ45 ports Front: RF output F-female 75 Ohm Rear left IPTV GbE Input/Output … NMS/CAS: Network management port and CAS data port …...

  • Page 8: Environmental Conditions

    HDC-5004 IP to QAM Modulator User Manual 3.2.1 Environmental Conditions Item Requirement Electric Isolation, Dust Free 10 Volume resistivity of ground anti-static material: 1x10 ...1x10 Machine Hall Floor Grounding current limiting resistance: 1m (Floor bearing should be greater than 450kg/m 5...40℃(sustainable ), 0...45℃(short time) Environment Temperature...

  • Page 9: Device Grounding

    HDC-5004 IP to QAM Modulator User Manual 3.2.4 Device Grounding Connecting the device’s grounding rod to frame’s grounding pole with copper wire. 3.3 Wire Connections 3.3.1 Power cord connection The power socket is located on the right of rear panel, and the power switch is on the left of front panel.

  • Page 10: Operation

    HDC-5004 IP to QAM Modulator User Manual Figure-1 4.2 Operation Remark: The user should be familiar with DVB-MPEG and PSI/SI information and its PID and Table construction and norms. Many tables are cross referencing to other tables (example: EIT and SDT, PMT, …). Information can be grabbed from: https://www.dvb.org/standards 4.2.1 Summary When the login has been confirmed, it displays the summary status as in Figure-2:...
  • Page 11 HDC-5004 IP to QAM Modulator User Manual Example for European NTP-Server addresses… But first set the time zone please: first set time zone than config NTP-Server! And you are done – but your Device need a connection to these NTP addresses. -> Local Gateway settings should fit as well to asure the connection to external NTP servers via Internet.

  • Page 12: Parameters "Ts Config" - Menu

    HDC-5004 IP to QAM Modulator User Manual needed for the TDT Injection to the output multiplexes. TOT offset table can be injected from an IP stream by PID forwarding iof necessary. 4.2.2 Parameters “TS Config” - Menu  The TS Config Menu sets the basics for your 4 QAM channels From the menu on up side of the webpage, clicking “Stream Select”, it displays the interface where users can choose the programs to Mux out.

  • Page 13: The Mux Menu

    HDC-5004 IP to QAM Modulator User Manual The MUX Menu: Input Area Output Area Operation Area Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are as below: ： Enable/disable the CA Filter function. Clicking this box, you can filter out the input CA-PIDs to avoid disturbing with the device scrambling function.
  • Page 14 HDC-5004 IP to QAM Modulator User Manual Select IGMP Version or OFF (not useful) Select Input protocol of the stream UDP/RTP You can address 1 or many IPTV streams: Finally Add and Close this window. Your streams shown in the left window will cover all of them. Do not forget to PARSE them to get the content.
  • Page 15 HDC-5004 IP to QAM Modulator User Manual Example with PID-remapping. And w/o - > MPTS Input to DVB-C Channel 2 output Program Modification: The multiplexed program information can be modified by selecting the program in the ‘output’ area. For example, when clicking on a service, it opens apopup as dialog box (Figure 6) where you can change or insert new data or even rename the service.

  • Page 16: Rf-Output Settings

    HDC-5004 IP to QAM Modulator User Manual Figure 6 RF-Output settings: 4 adjacent channels- first channel sets up the start frequency (middle), all need same QAM mode 16…256 and symbol rates, independent output level attenuation…: For the output level, see Annex – conversion table dBm -> dBµV. Date 28.
  • Page 17 HDC-5004 IP to QAM Modulator User Manual Set QAM Mode (Annex A/C = Normal DVB, Annex B = US Norm), mode 16…256 QAM and other values. This setup configures adjacent channel from a start frequency. To individually configure the 4 channels set them accordingly in every single config mode. CENELEC Channel-Plan would be very helpful.

  • Page 18: Chapter 5 Troubleshooting

    HDC-5004 IP to QAM Modulator User Manual Chapter 5 Troubleshooting Our ISO9001 quality assurance system has been approved by CQC organization. We guarantee the products’ quality, reliability and stability. All of our products have been passed the testing and inspection before shipping out from factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by us.

  • Page 19: Installation Notes

    Blankom / IRENIS GmbH. IRENIS GmbH reserves the right to revise this publication and make changes in its content from time to time, whereby it shall not be obligatory for IRENIS GmbH to provide notification of such revision or change.
  • Page 20 HDC-5004 IP to QAM Modulator User Manual Date 28. Januar 2020 BLANKOM-HDC-5004_IP2QAM-modulator-V1.4-RR-01-2020...

  • Page 21: Annex Channel Plan Catv Channel Plan

    HDC-5004 IP to QAM Modulator User Manual ANNEX Channel Plan CATV channel plan: Kanal- Mitten- Bild- Ton- Kanal- Mitten- Bild- träger Ton- träger Bereich Kanal Bereich Kanal frequenzen frequenz träger träger frequenzen frequenz Picture Sound Bands Channel Bands Channel Channel Middle Picture Sound...
  • Page 22 HDC-5004 IP to QAM Modulator User Manual 47...54 50,50 48,25 53,75 B IV 470...478 474,00 471,25 476,75 54...61 57,50 55,25 60,75 478...486 482,00 479.25 484,75 61...68 64,50 62,25 67,75 486...494 490,00 487,25 492,75 S 02 111...118 114,50 112,25 117,75 494...502 498,00 495,25 500,75...

  • Page 23: Appendix Db

    HDC-5004 IP to QAM Modulator User Manual Appendix DB Conversions of Power @ 75Ω / Umrechnungstabelle dBµV <-> dBm dBmV dBµV dBm 75Ω mW 75Ω -40.75 2.51 8.4E-05 -39.75 2.82 1.1E-04 -38.75 3.16 1.3E-04 -37.75 3.55 1.7E-04 -36.75 3.98 2.1E-04 -35.75 4.47 2.7E-04...
  • Page 24 HDC-5004 IP to QAM Modulator User Manual dBmV dBµV dBm 75Ω mW 75Ω -11.75 70.79 0.067 -10.75 79.43 0.084 -9.75 89.13 0.106 -8.75 100.00 0.133 -7.75 112.20 0.168 -6.75 125.89 0.211 -5.75 141.25 0.266 -4.75 158.49 0.335 -3.75 177.83 0.422 -2.75 199.53 0.531...

  • Page 25: Appendix A

    HDC-5004 IP to QAM Modulator User Manual Appendix A Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales.

  • Page 26: Safety Instructions

    HDC-5004 IP to QAM Modulator User Manual Safety instructions Read the safety instructions carefully before assembling or commissioning the device and ensure that you comply with them 1. Installation  Danger: The device may only be installed and started up by competent people (see EN 60065). ...
  • Page 27 HDC-5004 IP to QAM Modulator User Manual  Warning: Follow all instructions in the device-specific operating manual. 3. Maintenance  Danger: Maintenance tasks must always be carried out by competent people (see EN 60065).  Danger: Do not carry out servicing work during thunderstorms. There is a risk of electric shock (danger of death).

  • Page 28: Sicherheitshinweise

    HDC-5004 IP to QAM Modulator User Manual Sicherheitshinweise Sicherheitshinweise bitte vor Montage bzw. Inbetriebnahme des Gerätes sorgfältig lesen und befolgen. Installation Gefahr:Das Gerät darf ausschließlich von sachverständigen Personen (siehe EN 60065), installiert und in Betrieb genommen werden. Gefahr:Das Gerät und/oder die Verteilperipherie muß vor Inbetriebnahme gemäß EN 60728-11 vorschriftsmäßig geerdet sein (Potentialausgleich) und bleiben, auch wenn das Gerät ausgebaut wird.

  • Page 29: Wartung

    Reparatur, andernfalls droht Gefahr eines elektrischen Schlags (Lebensgefahr) und Brandgefahr. Warnung: (Bei optischen Sendern sowie deren Verteilperipherie) ziehen Sie den Netzstecker bevor das Gerät ausgebaut wird. Bei Fragen zur Reparatur wenden Sie sich an den IRENIS-Service: E-Mail: info@blankom.de , Kontakt: www.blankom.de...

  • Page 30: Entsorgung

    HDC-5004 IP to QAM Modulator User Manual Entsorgung Vorsicht: Entsorgen Sie das Gerät entsprechend den geltenden umweltrechtlichen Bestimmungen. Elektrische und elektronische Geräte dürfen nicht in den Hausmüll! Vorsicht: Entsorgen Sie Batterien (falls vorhanden), entsprechend den geltenden umweltrechtlichen Bestimmungen. Verpackungen können an uns zurückgeschickt werden. Wir kümmern uns um Recycling und/oder fachgerechte Entsorgung.

  • Page 31: Installation Guide For F-Connectors

    HDC-5004 IP to QAM Modulator User Manual Installation guide for F-connectors: / Installationshinweis für den F-Anschluß: Die LNB-Anschlüsse sind meist entsprechend gekennzeichnet The LNC –connectors at Multiswitches are almost marked as: HH= Horizontal High-Band HL = Horizontal Low-Band = LH VL = Vertical Low-Band = LV VH= Vertical High-Band = HV Elektronische Geräte gehören nicht in den Hausmüll, sondern müssen - gemäß...

  • Page 32: Contact

    HDC-5004 IP to QAM Modulator User Manual Contact: IRENIS GmbH Hauptstr. 29 31171 Nordstemmen- Germany Phone: +49 5069 4809781 IRENIS technical hotline VoIP +49 5069 4399 -860 or -8601 Managing Director: Dipl.Ing. Murad Önol Commercial Register: HRB 206370 / District Court Hildesheim Web: www.blankom.de E-Mail: info@blankom.de...
