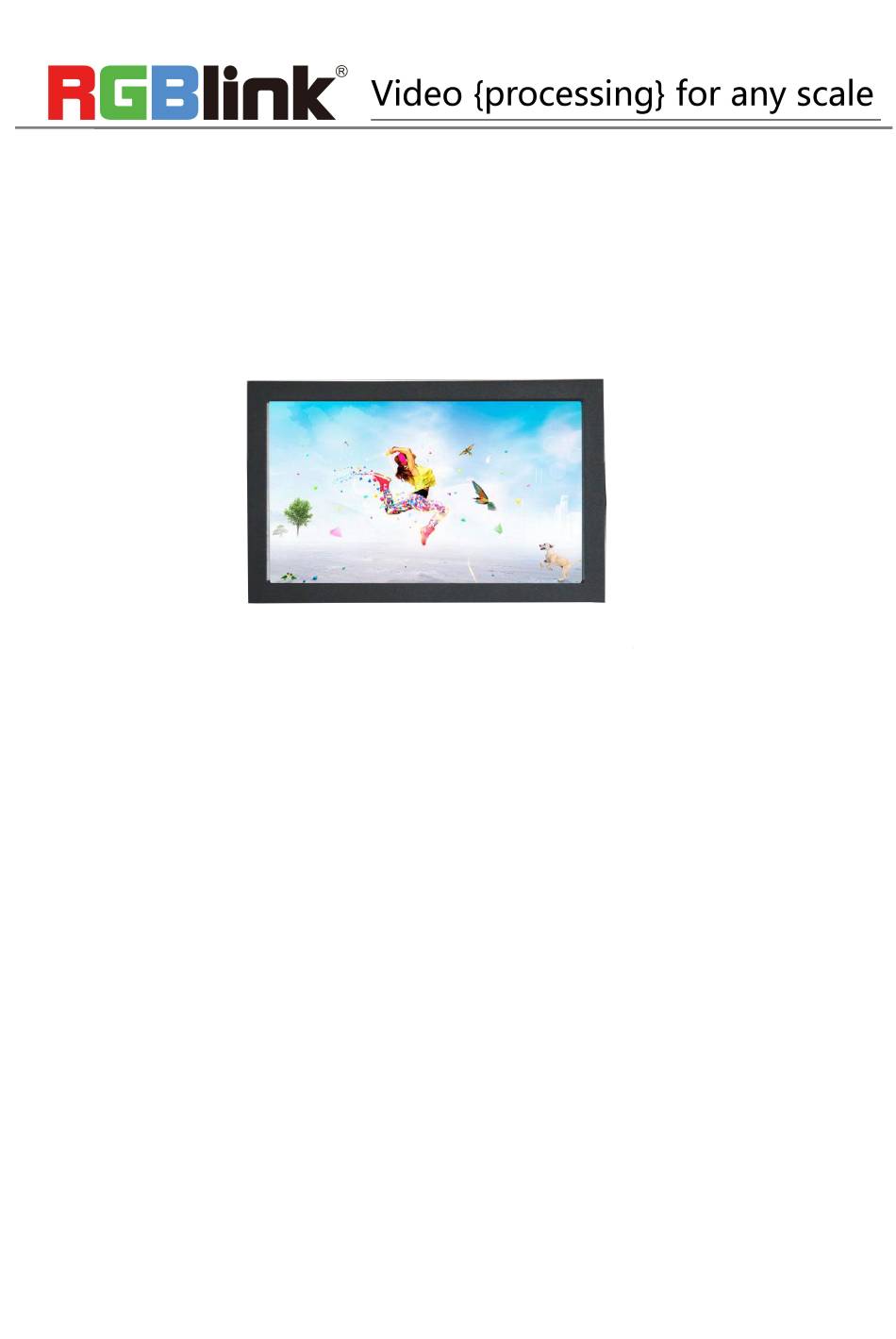

RMS 1A Quick Start
● Compact size for versatile mounting
● Display 2K resolutions
● Auto detect a wide range of resolution
● DVI input and loop
● Preview media file from USB
● Range of mounting accessory options

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMS 1A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RGBlink RMS 1A

  • Page 1 RMS 1A Quick Start ● Compact size for versatile mounting ● Display 2K resolutions ● Auto detect a wide range of resolution ● DVI input and loop ● Preview media file from USB ● Range of mounting accessory options...
  • Page 2: Table Of Contents

    Packing Configuration..............................4 Hardware Orientation...............................5 Front Panel................................5 Back Panel................................6 Mounting Accessory Installation..........................7 Table Stand Installation............................7 19 Inch Bracket Installation..........................8 Contact Information..............................9 © Xiamen RGBlink Science & Technology Co., Ltd. 1 / 10 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 3: Product Introduction

    Each RMS 1A is board with 1x DVI In, compatible with VGA and CVBS via adapter, 1 x DVI Loop which offers signal exactly the same as IN, 1 x USB which allows to preview media files from USB disk.
  • Page 4 System Connection RGBlink video processing solutions provide a range of flexible configuration options for professional applications. RMS 1A System Connection Diagram © Xiamen RGBlink Science & Technology Co., Ltd. 3 / 10 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 5: Packing Configuration

    Packing Configuration Power Adapter Note: the power adapter is plug interchangeable © Xiamen RGBlink Science & Technology Co., Ltd. 4 / 10 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 6: Hardware Orientation

    Hardware Orientation Front Panel LCD Screen © Xiamen RGBlink Science & Technology Co., Ltd. 5 / 10 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 7: Back Panel

    DVI+VGA LOOP Connect to the input of processor or next RMS 1A 12V DC Power connector Cooling Fan © Xiamen RGBlink Science & Technology Co., Ltd. 6 / 10 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 8: Mounting Accessory Installation

    Mount to a camera bracket 1 .Insert the T-type nylon gasket② into the stand③hole. 2. Mount RMS 1A①to the table stand. 3. Insert the gasket ④and tighten the inclination screw⑤ 4. You can mount the table stand to a traditional camera.
  • Page 9: 19 Inch Bracket Installation

    1.Use the M4*8 screws to attach the handle ① and the rack ③ 2. Connect 2 RMS 1A by means of the attachment bracket ⑥ on top and the bottom. Use the screws M4*8 ⑦and M3*5 ⑧ to fix the bracket.
  • Page 10: Contact Information

    All video products are designed and tested to the highest quality standard and backed by a full 3 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include...
