MIL-L1624XX
One Port Fiber Module
User Guide
(For use in MIL-S1600 and MIL-S2400 switches)

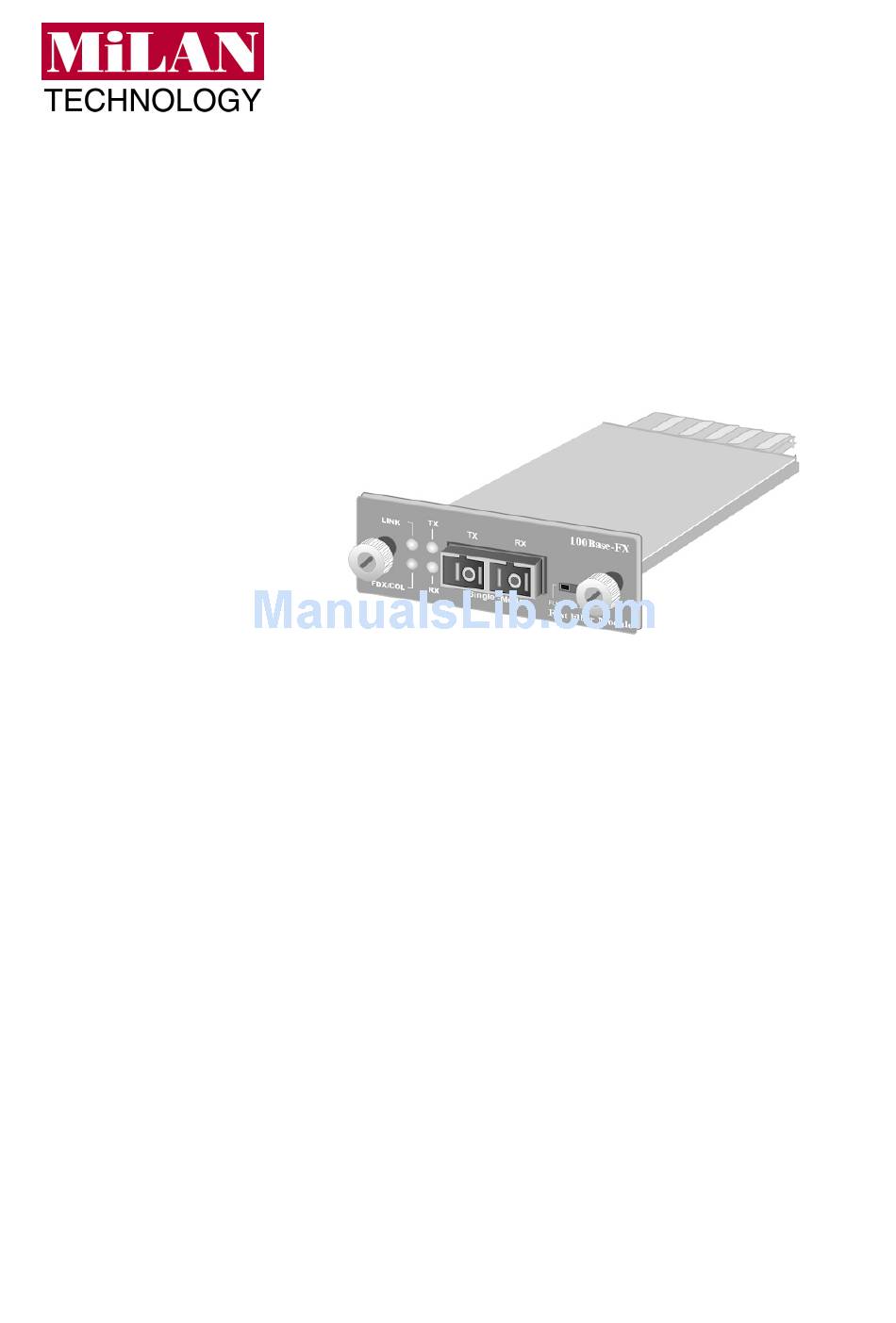

Figure 1.
Introduction
This User Guide introduces the 100FX Modules which can be
installed in the front panel of a MIL-S2400 or MIL-S1600 switch.
Each Optional 100FX Module comes with a one-port fiber connector.
The 100FX Modules are designed to extend the distance between
the switch and other devices.
The maximum distance connected by optical fiber is up to 2 Km
(multi-mode fiber) or 60 Km (single-mode fiber). You can regard this
fiber port as the backbone in the networking infrastructure. There are
five types of fiber port connectors including SC, ST, MT-RJ and VF-
45 in multi-mode and SC and MT-RJ in single-mode.
Advertisement
Table of Contents
Related Manuals for MiLAN MIL-L1624MT
Summary of Contents for MiLAN MIL-L1624MT
- Page 1 MIL-L1624XX One Port Fiber Module User Guide (For use in MIL-S1600 and MIL-S2400 switches) Figure 1. Introduction This User Guide introduces the 100FX Modules which can be installed in the front panel of a MIL-S2400 or MIL-S1600 switch. Each Optional 100FX Module comes with a one-port fiber connector. The 100FX Modules are designed to extend the distance between the switch and other devices.
- Page 2 Front Panel The Front Panels of the 100FX Modules include LED-indicators, two thumbscrews, DIP-switch, and one fiber port. The Front Panels of the 100FX Modules are shown as below. (Not shown is the MIL- 1624MT-60 single-mode module with MT-RJ connectors). MIL-S1624MT-60 not shown.
- Page 3 100FX Module with MT-RJ Connector Figure 5. 100FX Module with MT-RJ Connector 100FX Module with VF-45 Connector Figure 6. 100FX Module with VF-45 Connector Note : DIP-switch is to set the fiber port for Full-duplex or Half-duplex. MIL-L1624ST MIL-L1624MT MIL-L1624VF...
- Page 4 LED Indicators The LED-Indicators provide real-time information of operation status. The following table provides descriptions of LED Indicator status and their meaning. Status Blinks Fiber port is transmitting data. Blinks Fiber port is receiving data. Green The port is connected to a device. Link Yellow The port is operating in Full-duplex mode.
- Page 5 100FX MODULES Features & Specifications Conforms to the IEEE 802.3u 100Base-FX & 802.3x Full Duplex Flow Control standard One-port 100Mbps optical fiber module LED-indicators for TX, RX, Link, and FDX/COL ( 4 LEDs ). One DIP-switch to set the fiber port for Full-duplex or Half-duplex. Max.
- Page 6 sliding it in until it stops ( See Figure 7 ). Press it firmly until you feel the module snap into place. Never force, twist or bend the 100FX Module. Figure 7. Install the 100FX Module by inserting it into the guides and sliding it in until it stops 4.
- Page 7 100FX MODULES Optical Fiber Specifications The maximum distance between any two fiber optic devices is determined by a number of factors including the conversion modules used in the configuration. This table shows the specifications for each of the available modules and will assist in determining which fiber optic module is best for your installation.
- Page 8 For prompt response when calling for service information, have the following information ready: - Product serial number and revision - Date of purchase - Vendor or place of purchase You can reach MiLAN Technology technical support at: E-mail: support@milan.com Telephone: +1.408.744.2751 Fax: +1.408.744.2771 MiLAN Technology...
