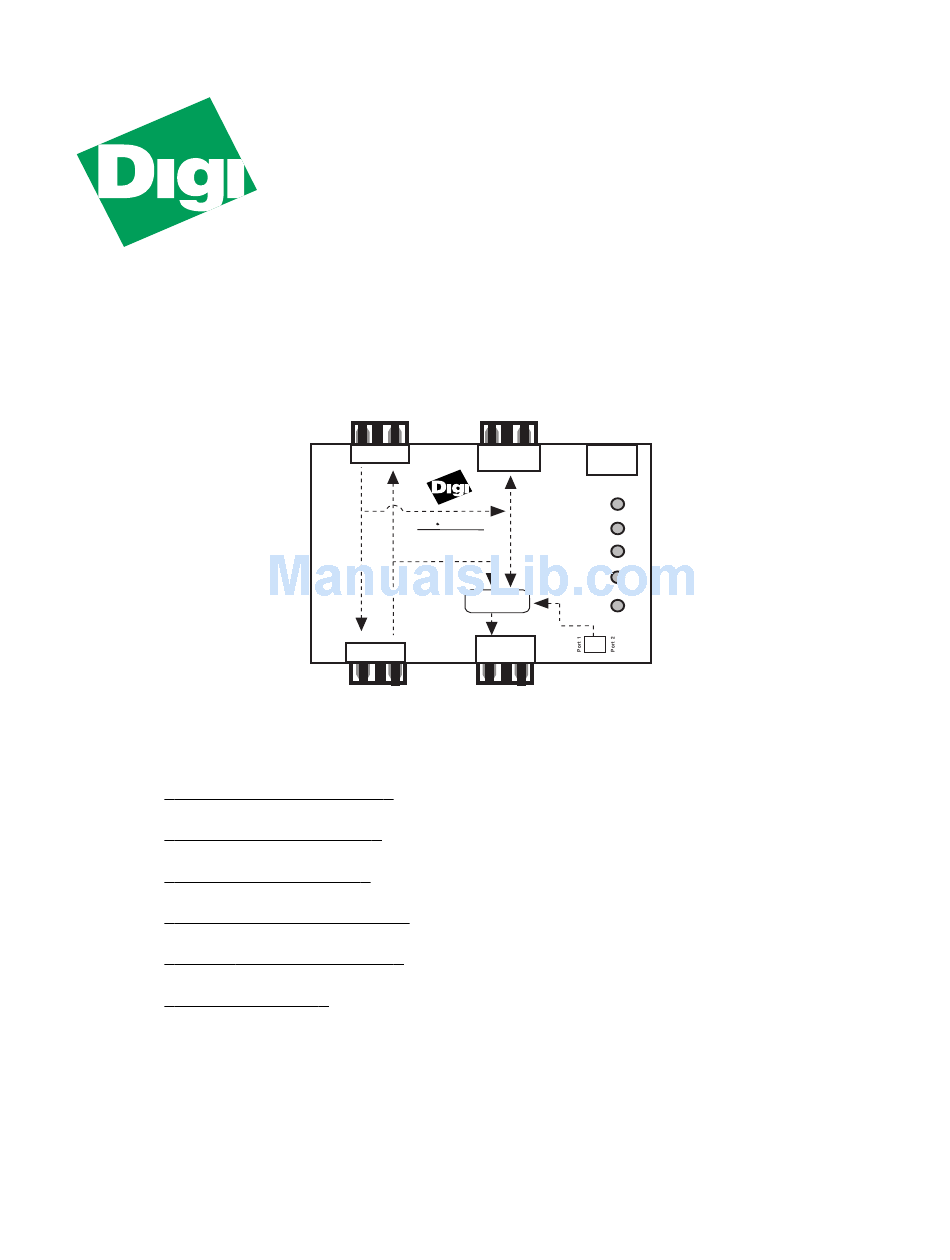

MIL•250FXC Transceiver Tap Port 1 Port 2 Installation Guide This guide includes the following information: “Introduction” on page 2 “Installation” on page 2 “Indicators” on page 3 “Switch Setting” on page 4 “Specifications” on page 4 “Legal” on page 6 100 Base FX Monitor 5 V DC...
MIL-250FXC. Th e o r y o f O pe ra t i on The MIL-250FXC is designed to “tap” the incoming data from the DCE and/or DTE lines to the Monitor port for performance evaluation and error detection. Model: MI L-250FXC...
In di c a tor s There are 5 LED indicators on the MIL-250FXC: • P1SD: Port 1 Signal Detect. This LED illuminates when the MIL-250FXC receives a signal on port 1. It is yellow. • MP1SD:Monitor Port One Signal Detect. This LED illuminates when the device receives a signal on Monitor Port One.
Install Guide • P2SD : Port 2 Signal Detect. This LED illuminates when the MIL-250FXC receives a signal on port 2. It is yellow. S witch Se t ti ng SW1: If it is in the Up position, then data coming into Port 1 will be transferred to Monitor Port 2.
Page 5
Supply Voltage Power S u p p ly External power is required for the MIL-250FXC. The system board draws 1.25 A at normal operation in room temperature of 25° C. • A 110 V AC wall mount power supply unit for domestic use (supplied).
L eg al Regulat o r y A pprovals • FCC Class A • UL 1950 • CSA 22 No. 950 • EN60950 • – EN55022 Class B – EN50082-1 Canad ia n EM I No tice This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.
