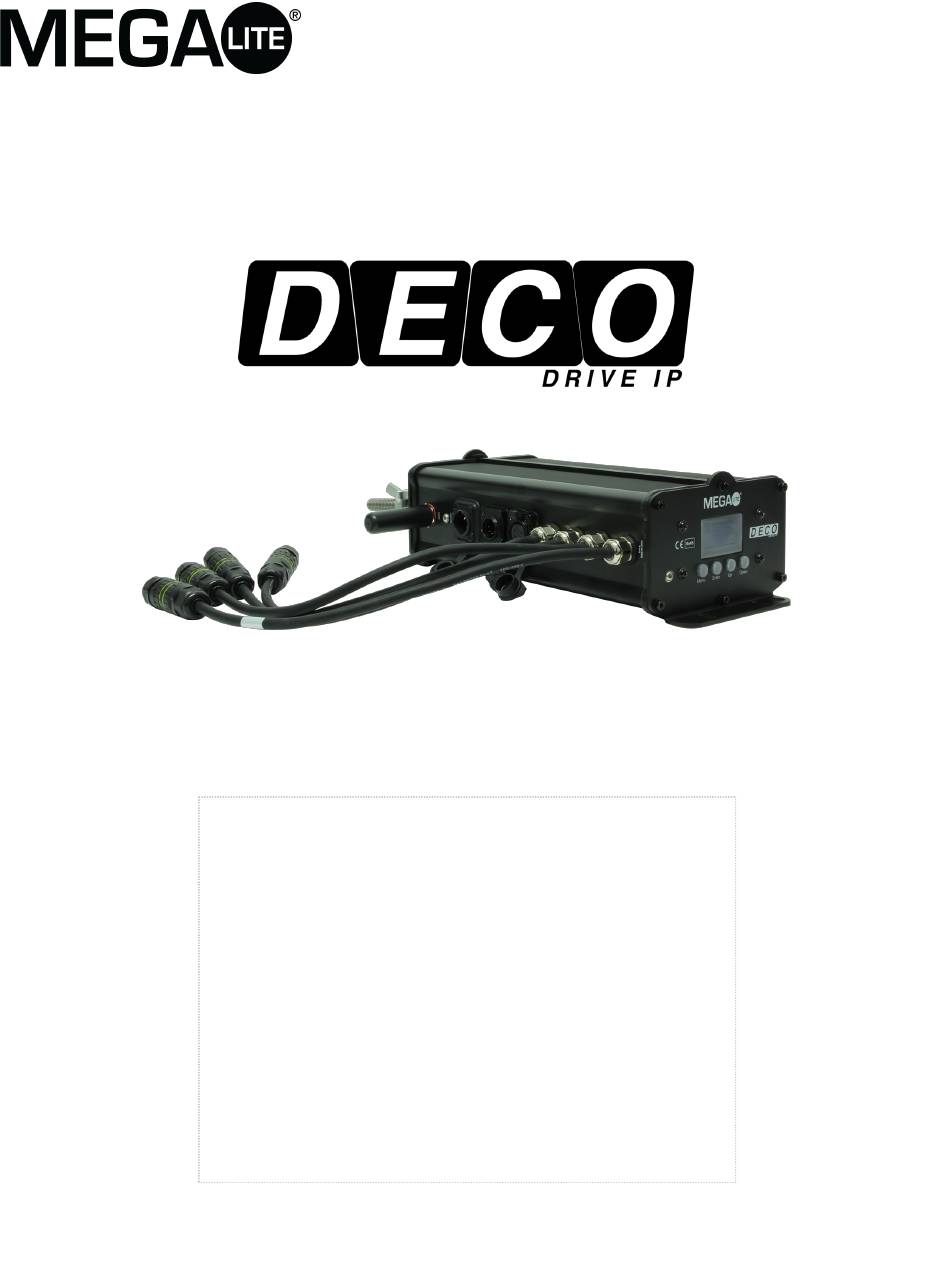

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information What Is Included Specifications Main Power Connection DMX-512 Connection Output Connection Control Board DMX Profile Size & Weight Cleaning & Maintenance Parts List Warranty Customer Service Customer Support... -
Page 2: Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 2. Do Not install the unit too close to a heat source. 3. Make sure cables are properly secured away from movement. 4. -
Page 3: Specifications
Specifications Part Numbers Fixture 5070– Deco Driver IP Mechanical Specifications Fastening System: M10 Clamp mount tread, Mounting hole, Accessory Din Rail Mounts Display: Digital Power Connection: True One (type) Cable Mounted to Nema 5-15 plug. Housing: IP rated extrusion DMX Connection: 5 Pin XLR in and out &... -
Page 4: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 90V to 264V automatically This unit must be earthed. (electronically grounded) There is no serviceable parts inside. Return to manufacture for factory service The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 90V to 264V from 50Hz to 60Hz Cable (USA) -
Page 5: Control Board
Control Board CONTROL BOARD Mega Lite Deco Drive IP Menu Enter Down DMX Address DMX Port Press Enter to select the output Port use the Up/Down to select from 01 to 04 Press Enter to select the Channel Mode use the Up/Down to select from options... - Page 6 Auto Auto programs This function allows you to play back preprograms Press Enter and use the Up/Down buttons to engage pre stored programs Mode Mode 1 will allow you to select from the 39 different stored colors. Color Strobe Press Enter to adjust strobe function from 00 to 99 (01-39) (00-99) Mode 2-17 will allow you to adjust the speed.
-
Page 7: Dmx Profile
DMX Profile Deco Drive IP 1 Channel Mode Init DMX Channel Function Description Value Dimmer LED Intensity 0-255 Deco Drive IP 2 Channel Mode Init DMX Channel Function Description Value LED Color Warm White LED Intensity 0-255 LED Color Cool White LED Intensity... -
Page 8: Size & Weight
Size & Weight 11.87” 4.12” 13.25” 6” 9.5” (With Power Cable) 2.5” Fixture Size 13.25" X 8.5" X 4.12" Fixture Packaged 14.75" X 12" X 6.75" Net Weight 8.8lb Gross Weight 9.8lb... -
Page 9: Cleaning & Maintenance
Cleaning and Maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. -
Page 11: Customer Service
Customer Support Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
