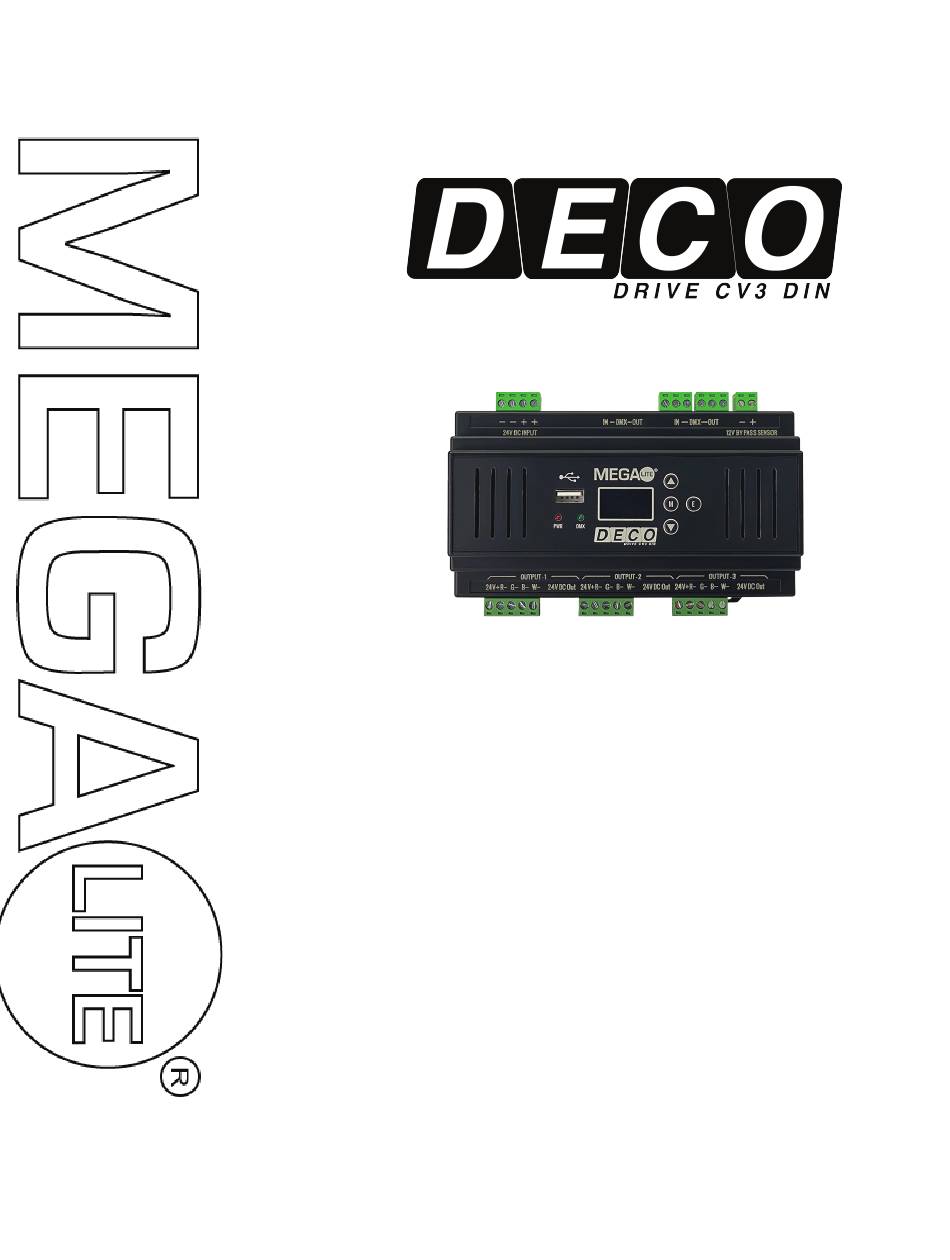

USER MANUAL
Table of Contents
Safety Information.........................2
What's Included.............................2
Specifications................................3
Main Power Connection................4
DMX 512 Connection....................5
Control Board................................6
DMX Profile...................................7
Size & Weight................................8
Cleaning & Maintenance...............9
Parts List.......................................9
Warranty......................................10
Customer Service........................11
Advertisement
Related Manuals for Mega Lite DECO
Summary of Contents for Mega Lite DECO
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information......2 What’s Included......2 Specifications........3 Main Power Connection....4 DMX 512 Connection....5 Control Board........6 DMX Profile........7 Size & Weight........8 Cleaning & Maintenance....9 Parts List........9 Warranty........10 Customer Service......11... - Page 2 Protection Against Mechanical Hazards Use secondary safety chain when hanging unit. Use quality clamps or bolts when positioning unit. Do not open unit while it is on. Risk of electrical shock. Mechanical What is Included 1pc Deco Drive CV3 Din 1pc User Manual...
-
Page 3: Specifications

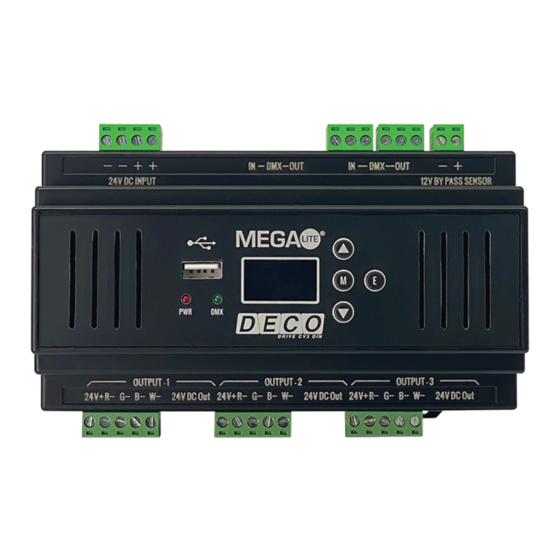

Specifications Part Numbers Fixture 5063 - Deco Driver CV3 Din Mechanical Specifications Housing: Black Plastic Fastening System: DIN Rail-mount 35mm Power Connection: 4 Pole Screw Terminal V-V+ DMX Connection: 3 Pole Screw Terminal in and out and RJ45 in and out... -
Page 4: Main Power Connection
This fixture requires a 294 Watt or greater 24V power supply (sold separately). Fixture requires a Minimum 14 Gage stranded wire from the power supply to the Deco Driver CV3 24V DC Input when placed next to each other. Longer distances will require higher cable gage. - Page 5 Output Connection The fixture is equipped with RJ45 and 5 Poll Screw Terminal for output to the lights. Different Deco Lighting Fixtures are equipped with either Cat6A or 5 Conductor stranded cable. Please consult the lighting fixtures manual for what type of cable your lighting fixture requires.
- Page 6 Main Control Menu The control board on the fixture is your interface to access and control all the functions on the unit. Its digital display gives you a code view of the options and functions. The following will explain each function and its options. There are also 2 LED indicators on -SYSTEM READY- the left side of the display.
- Page 7 Manual -SYSTEM MODE- 1. DMX Press E button to enter the Manual menu. Use the E button to select desired manualy adjusted color. Use the up/down keys to select. 2. Auto 3. Static 4. Manual Static function will let you select adjust intensity output via Red: 255 display Green: 255...
-
Page 8: Dmx Profile
DMX Profile Deco CV3 Din 1 Ch Mode DMX Ch Function Description Value Init Dimmer LED Intensity 0-255 Deco CV3 Din 2 Ch Mode Init DMX Ch Function Description Value LED Color Warm White LED Intensity 0-255 LED Color Cool White LED Intensity... -
Page 9: Cleaning & Maintenance
Rigging the Fixture When rigging a unit, it is very important that you follow common safety procedures. Rigging requires extensive experience including but not limited to, calculating working loads, material being used, and periodic safety inspections. If you lack these qualifications, do not attempt the installation yourself. -
Page 10: Warranty
General Terms & Conditions 1. All resellers must have approved and signed Reseller Application on file, including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status. 2. - Page 11 Customer Support MEGA-Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service dept. Monday - Friday 9am to 6pm CST (210)684-2600 service@mega.lighting...
