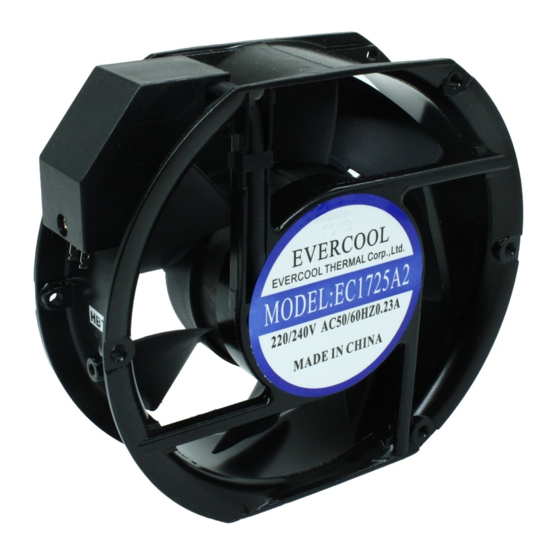

SPECIFICATION FOR APPROVAL
EVERCOOL MODEL NO: EC1725A2HBT
CUSTOMER MODEL NO: EC1725A2HBT
APPROVED BY
(AUTHORISED)
* Please confirm your acceptance by return fax or mail.
SPEC NO
20221026J01
THE PRODUCTION ACCORD WITH EUROPE UNION ROHS STANDARD
EVERCOOL THERMAL CO., LTD
NO. 123-8, HSING DE RD., SAN-CHUNG CITY,
TAIPEI HSIEN, TAIWAN, R.O.C.
TEL: 886-2-8512-2889 FAX: 886-2-8512-2890
URL:www.evercool.com.tw
EMAIL: coolest@ms14.hinet.net
CUSTOMER: Chip
DESCRIPTION: AC220V FAN
ISSUE DATE
2022/10/26
PAGE 1 OF 6
PAGE 2 OF 6
APPROVED
Alex
CHECKED
Xiongwei
DRAWN
Chenjie
SALES
Richard
EDITION
REVISED DATE
A0(F4)
2022/10/26
VER: 1
VER: 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC1725A2HBT and is the answer not in the manual?

Questions and answers

Related Manuals for EVERCOOL EC1725A2HBT

Summary of Contents for EVERCOOL EC1725A2HBT

  • Page 1 SPECIFICATION FOR APPROVAL CUSTOMER: Chip EVERCOOL MODEL NO: EC1725A2HBT CUSTOMER MODEL NO: EC1725A2HBT DESCRIPTION: AC220V FAN APPROVED BY APPROVED (AUTHORISED) Alex CHECKED Xiongwei DRAWN Chenjie SALES Richard * Please confirm your acceptance by return fax or mail. SPEC NO ISSUE DATE...

  • Page 2: Table Of Contents

    CONTENTS （目录） 1. SCOPE（ …………………………………………………………….3 范围） 2. ELECTRICAL ( …………………………………………………3 电气特性) 3. MATERIAL（ …………………………………………………….4 部件材质） 4. ENVIRONMENTAL（ ………………………………………… ..4 参考环境） 5. PROTECTION（ ………………………………………………...4 品质保证） 6. REOZONE DEPLETING SUBSTANCES（ ……… ……… …4 环境保护） 7. NOISE（ ……………………………………………………………..5 噪音） 8. RELIABILITY（ 可靠性测试） ………………………………………………5 9.

  • Page 3: Scope（范围

    1. SCOPE（范围）: THIS SPECIFICATION DEFINES THE ELECTRICAL AND MECHANICALCHARACTERISTICS OF THE ACBRUSH FAN.THE FAN MOTOR IS WITH TWO PHASES AND TWO POLES. （本承认书定义了交流式无刷风扇的电气特性和机械特性。此风扇马达为两相二极极式。 ） 2. ELECTRICAL（电气特性）: ITEM DESCRIPTION RATED VOLTAGE（额定电压） ~220VAC OPERATION VOLTAGE（允许电压） ~200-240VAC Starting voltage（起动电压） ~150V (ON/OFF) RATED CURRENT A（额定电流） 0.27A±10% 0.30A Locked current（锁定电流）...

  • Page 4: Material（ 部件材质

    3. MECHANICAL（部件材质）: 3-1.DIMENSIONS（尺寸） SEE DIMENSIONS DRAWING（参考尺寸图画） 3-2.FRAME（框）铝合金烤漆 3-3.IMPELLER（扇叶）P B T. UL94V-0（防火料 94V-0） 3-4.BEARING SYSTEM（轴承类别）BALLBearing（滚珠轴承） 3-5.WEIGHT（重量）GRAMS（820G） 4.NVIRONMENTAL（参考环境）: 4-1.OPERATING TEMPERATURE（运行温度） -10 TO +70 DEGREE C 4-2.STORAGE TEMPERATURE（储存温度） -30 TO +80 DEGREE C 4-3.OPERATING HUMIDITY（运行湿度） 5 TO 90% RH 4-4.STORAGE HUMIDITY（储存湿度） 5 TO 95% RH 5.ROTECTION（品质保证）: 5-1.DROP TEST（落体试验）...

  • Page 5: Noise

    7. NOISE IS MEASURED AT RATED VOLTAGE IN ANECHOIC（在无响室额定电压下之噪音测试） CHAMBER IN FREE AIR AS BELOW（在空气自由流动的测试室） ： Air flow （风流方向） Fan（风扇）Microphone（麦克风） Noise is measured rated voltage in free air in anechoic chamber with B & KSound level meter with microphone at a distance of one meter from the fan intake.The background noise is 18dBAmax.

  • Page 6: Outline（ 外形尺寸图

    11.OUTLINE（外形尺寸图） 12.NOTES（注意事项） 12.1 Please do not touch the impeller and never carry the fan the lead wires. The bearings and the lead wires may be damaged. （请不要碰触扇叶和拉扯线材，以免损坏轴承及导线。 ） 12.2 For the purpose of MIS, please specify the Model No. on every order. （便于订单管理, 请在每一订单上详细注明其型号.）...
