SPECIFICATION FOR APPROVAL
EVERCOOL MODEL NO:
CUSTOMER MODEL NO:
APPROVED BY
(AUTHORISED)
* Please confirm your acceptance by return fax or mail.
SPEC NO
20220513J01
THE PRODUCTION ACCORD WITH EUROPE UNION ROHS STANDARD
EVERCOOL THERMAL CO., LTD
NO. 123-8, HSING DE RD., SAN-CHUNG CITY,
TAIPEI HSIEN, TAIWAN, R.O.C.
TEL: 886-2-8512-2889 FAX: 886-2-8512-2890
URL:www.evercool.com.tw
EMAIL: coolest@ms14.hinet.net
CUSTOMER:

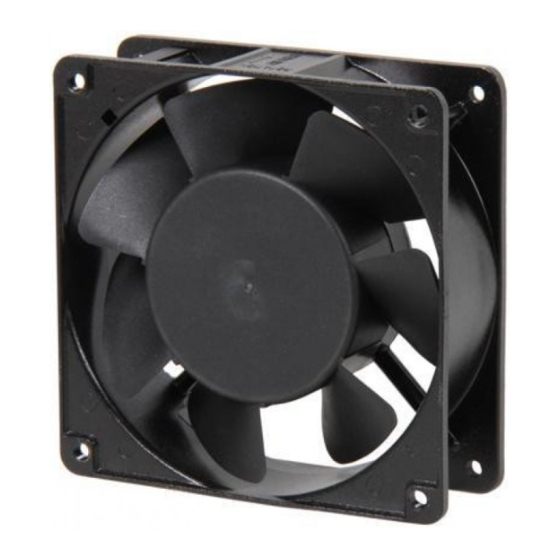

DESCRIPTION: AC220V FAN
ISSUE DATE
2022/5/13
P A G E 1 O F 6
CHIP
EC1238A2LST
EC1238A2LST
APPROVED
Alex
CHECKED
Xiongwei
DRAWN
Chenjie
SALES
Richard
EDITION
REVISED DATE
A0
2022/5/13
V E R :
1
Advertisement
Table of Contents
Related Manuals for EVERCOOL EC1238A2LST
Summary of Contents for EVERCOOL EC1238A2LST
- Page 1 EDITION REVISED DATE 20220513J01 2022/5/13 2022/5/13 THE PRODUCTION ACCORD WITH EUROPE UNION ROHS STANDARD EVERCOOL THERMAL CO., LTD NO. 123-8, HSING DE RD., SAN-CHUNG CITY, TAIPEI HSIEN, TAIWAN, R.O.C. TEL: 886-2-8512-2889 FAX: 886-2-8512-2890 URL:www.evercool.com.tw EMAIL: coolest@ms14.hinet.net P A G E 1 O F 6...
- Page 2 CONTENTS （目 录） 1. SCOPE（ …………………………………………………………….3 范 围） 2. ELECTRICAL ( …………………………………………………3 电气特性) 3. MATERIAL（ ……………………… ……………………………. 4 部件材质） 4. ENVIRONMENTAL（ …… …………………………………… ..4 参考环境） 5. PROTECTION（ ………………………… …………… ………...4 品质保证） 6. REOZONE DEPLETING SUBSTANCES（ … … … …… … …4 环境保护）...
- Page 3 1. SCOPE（范围）: THIS SPECIFICATION DEFINES THE ELECTRICAL AND MECHANICAL CHARACTERISTICS OF THE AC BRUSH FAN.THE FAN MOTOR IS WITH TWO PHASES AND TWO POLES. （本承认书定义了交流式无刷风扇的电气特性和机械特性。此风扇马达为两相二极极式。 ） 2. ELECTRICAL（电气特性）: ITEM DESCRIPTION RATED VOLTAGE（额定电压） ~220VAC OPERATION VOLTAGE（允许电压） ~200-240VAC Starting voltage（起动电压） ~150V (ON/OFF) RATED CURRENT A（额定电流）...
- Page 4 3. MECHANICAL（部件材质）: 3-1.DIMENSIONS（尺寸） SEE DIMENSIONS DRAWING（参考尺寸图画） 铝合金烤漆 3-2.FRAME（框） 3-3.IMPELLER（扇叶） P B T. UL94V-0（防火料 94V-0） 3-4.BEARING SYSTEM（轴承类别） Sleeve Bearing（含油轴承） 3-5.WEIGHT（重量） GRAMS（430G） 4. NVIRONMENTAL（参考环境）: 4-1.OPERATING TEMPERATURE（运行温度） -10 TO +70 DEGREE C 4-2.STORAGE TEMPERATURE（储存温度） -30 TO +80 DEGREE C 4-3.OPERATING HUMIDITY（运行湿度） 5 TO 90% RH 4-4.STORAGE HUMIDITY（储存湿度）...
- Page 5 7. NOISE IS MEASURED AT RATED VOLTAGE IN ANECHOIC（在无响室额定电压下之噪音测试） CHAMBER IN FREE AIR AS BELOW（在空气自由流动的测试室） ： Air flow （风流方向） Fan（风扇） Microphone（麦克风） Noise is measured rated voltage in free air in anechoic chamber with B & K Sound level meter with microphone at a distance of one meter from the fan intake.
- Page 6 11.OUTLINE（外形尺寸图） 12. NOTES（注意事项） 12.1 Please do not touch the impeller and never carry the fan the lead wires. The bearings and the lead wires may be damaged. （请不要碰触扇叶和拉扯线材，以免损坏轴承及导线。 ） 12.2 For the purpose of MIS, please specify the Model No. on every order. （便于订单管理, 请在每一订单上详细注明其型号.）...
