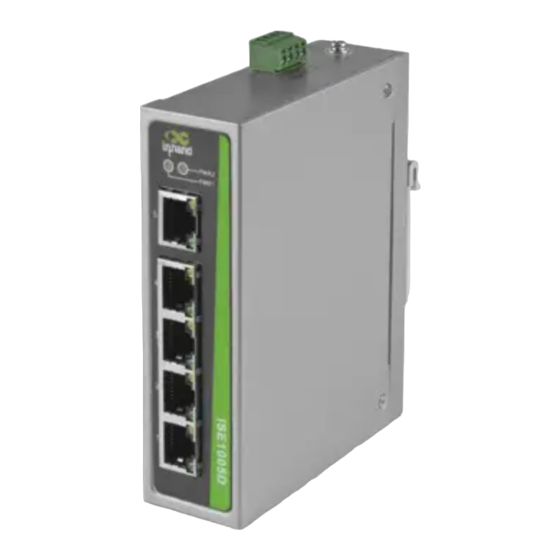

- Page 1 InHand Networks InSwitch ISE-P Series Quick Installation Manual InHand Networks www.inhandnetworks.com Version: V1.0 - 1 -...
- Page 2 FEATURES ⚫ ⚫ Protocol: Size: IEEE802.3 10/100/1000M 24mm (W) x 100mm (H) x 61.8mm (D) ⚫ Electrical Ports: (3 or 5 Ports Model) 2~8 10/100M or 10/100/1000M RJ45 ports 40mm (W) x 100mm (H) x 61.8mm (D) and CAT5 cable is used (8 Ports Model) ⚫...
- Page 3 Power Connection Diagram AC/DC input cable connection diagram for 3 or 5 AC/DC input cable connection diagram for 8 Ports Ports Model Model [NOTE]: Before connecting the device to the AC/DC power inputs, make sure the AC/DC power source voltage is stable.
