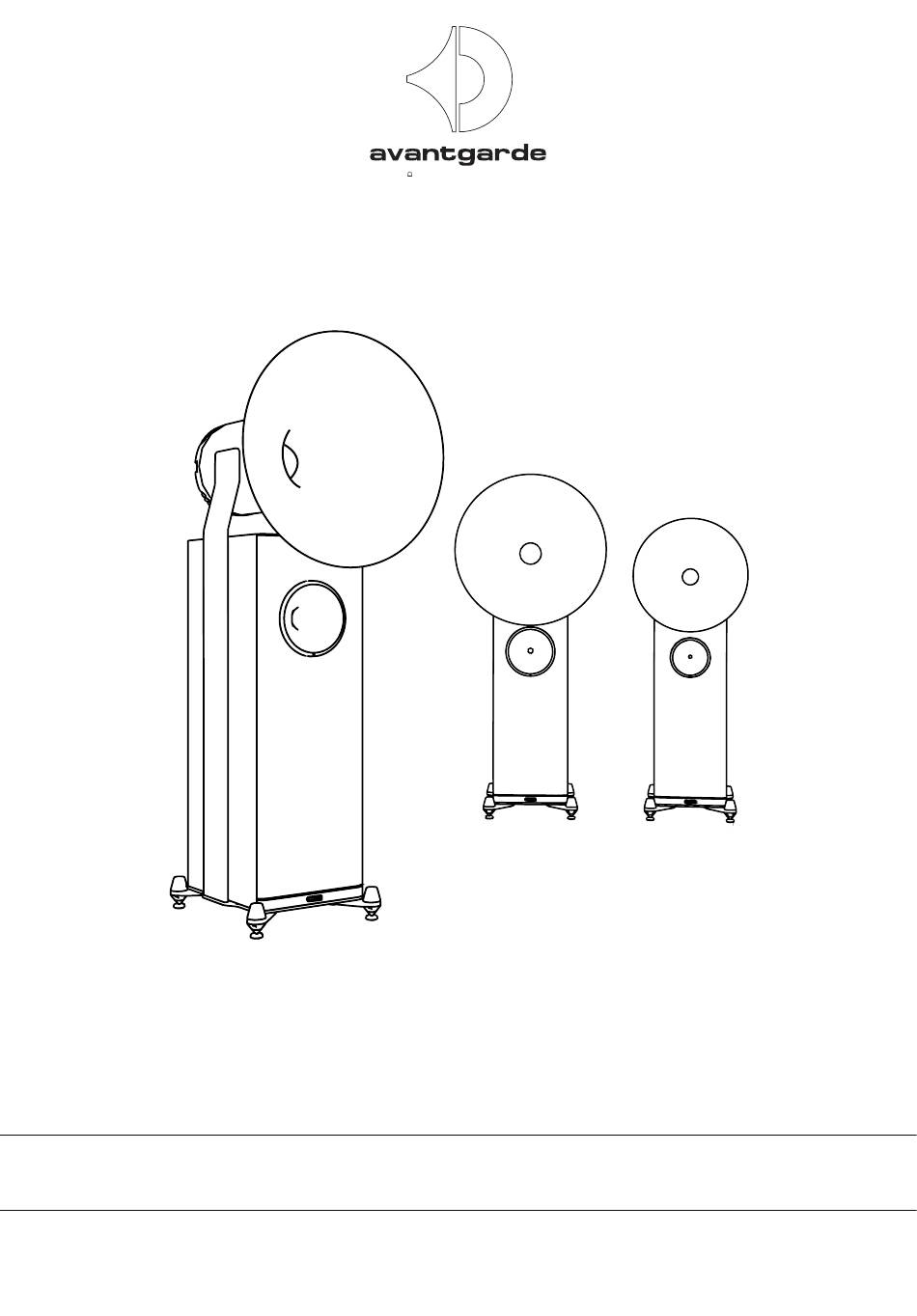

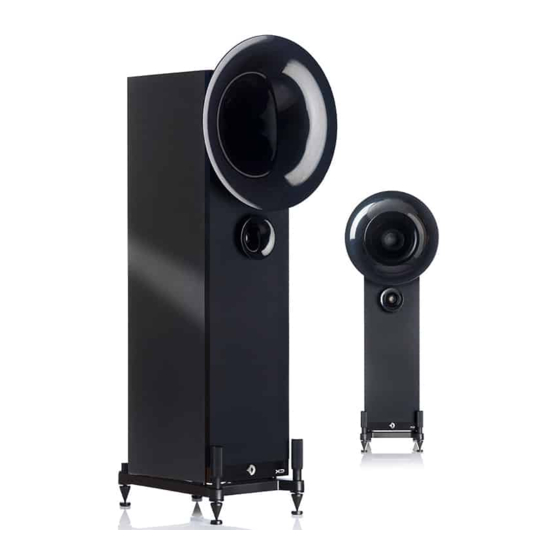

- Page 1 User Manual UNO SD & DUO SD & DUO GT Version 1.1...
- Page 2 Listen & Love...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION SAFETY INFORMATION PRECAUTIONS ON INSTALLATION OPERATING VOLTAGE SET UP CONTENT OF PACKAGES UNPACKING ADJUSTABLE FEET & SPIKES ANGLE ADJUSTABLE FEET & SPIKES OPERATION SAFETY PRECAUTIONS CONNECTION PASSIVE VERSION – SINGLE WIRING CONNECTION PASSIVE VERSION – BI WIRING CONNECTION ITRON VERSION –... -
Page 4: Safety Information
SAFETY INFORMATION SAFETY INFORMATION PRECAUTIONS ON INSTALLATION CAUTION Do not move or carry the speakers by holding the horn assembly. To prevent fire, shock or damage, do not expose the components to rain or moisture. Place the components of the system on a flat solid surface. Conditions for operation: room temperature 5 –... -
Page 5: Content Of Packages
CONTENT OF PACKAGES CONTENT OF PACKAGES UNO SD, DUO SD & DUO GT UNO SD, DUO SD & DUO GT 2 x cardboard box with the 2 x speakers. 2 x power cable (3m) for passive version 4 x power cable (3m) for iTRON version 8 x feet with Teflon glides (installed in the foot frame mechanism 2 x 0,8m SPKR cable between bass amplifier &... -
Page 6: Unpacking
UNPACKING UNPACKING UNO SD & DUO SD DUO GT Please note the very heavy weight of the speaker system when Please note the very heavy weight of the speaker system when unpacking and installing the system! We strongly advise doing this... - Page 7 HEIGHT ADJUSTMENT OF FEET ANGLE ADJUSTMENT OF FEET UNO SD, DUO SD & DUO GT UNO SD, DUO SD & DUO GT The loudspeaker stands on 4 x rotatable base frame arms �. On de‐ On delivery, the 4 x rotatable base frame arms � are mounted on livery, standard feet with Teflon glides �...
-
Page 8: Safety Precautions
Use high quality cable with solid speaker plugs (spades, bananas etc). SPKR BRIDGE DSP BASS AMP FUSE ITRON MAINS WARNING SPEAKER TYPE UNO SD DUO SD ELECTRICAL SHOCK HAZARD DO NOT OPEN! MODEL NO. BASSAMP-G3-500 110 – 240V ~ 50/60HZ ORIGIN MADE IN GERMANY MAX POWER CONSUMPTION –... -
Page 9: Connection Passive Version - Bi Wiring
CONNECTION – PASSIVE VERSION CONNECTION – PASSIVE VERSION SINGLE–WIRING BI–WIRING AMP SWITCH HIGH AMP SWITCH HIGH SPEAKER TYPE UNO G3 DUO G3 SPEAKER TYPE UNO G3 DUO G3 MODEL NO. PASSIVE CROSSOVER SWITCH MODEL NO. PASSIVE CROSSOVER SWITCH only to be used with marked speaker type only to be used with marked speaker type ORIGIN MADE IN GERMANY... - Page 10 AC outlet and turn on the ITRON module � and the MODE subwoofer DSP amplifier. WARNING ELECTRICAL SHOCK HAZARD SPEAKER TYPE UNO SD DUO SD DO NOT OPEN! MODEL NO. BASSAMP-G3-500 110 – 240V ~ 50/60HZ MAX POWER CONSUMPTION – 550W...
- Page 11 OPERATION – ITRON VERSION OPERATION – ITRON VERSION AUDIO SOUND ADJUSTMENTS GAIN ADJUSTMENTS The 3 x TOTAL GAIN switches � allow the adjustment of the gain of + 1.5 the speakers to the strength of the line level signal from the connected preamp.
-
Page 12: Speaker Level Inputs
PASSIVE VERSION – SPEAKER LEVEL INPUTS ITRON VERSION – BALANCED XLR INPUT WARNING WARNING ELECTRICAL SHOCK HAZARD ELECTRICAL SHOCK HAZARD SPEAKER TYPE UNO SD DUO SD SPEAKER TYPE UNO SD DUO SD DO NOT OPEN! DO NOT OPEN! MODEL NO. -
Page 13: Input Select Switch
TOTAL GAIN POWER SWITCH, INPUT SELECT SWITCH & LED BRIGHTNESS POWER MODE SETTINGS WARNING WARNING ELECTRICAL SHOCK HAZARD ELECTRICAL SHOCK HAZARD SPEAKER TYPE UNO SD DUO SD SPEAKER TYPE UNO SD DUO SD DO NOT OPEN! DO NOT OPEN! MODEL NO. -
Page 14: Dsp Software Installation
OPERATION – SUBWOOFER DSP AMP OPERATION – SUBWOOFER DSP AMP DSP VOLUME SETTINGS DSP SOFTWARE INSTALLATION Additional settings can be programmed with the Avantgarde Control software. WARNING ELECTRICAL SHOCK HAZARD SPEAKER TYPE UNO SD DUO SD DO NOT OPEN! MODEL NO. -
Page 15: Dsp User Interface
“body” to the sound character of certain voices and instruments. � Please note that all changes in the Avantgarde control software immediately become audible in the speaker. This way it is easy If the crossover frequency is purposely set to a lower frequency, to verify the changes by listening and fine adjust if required. -
Page 16: Fine Tuning
FINE TUNING FINE TUNING ROOM PLACEMENT TOE–IN & TOE OUT Due to the controlled dispersion characteristics of the horns the By facing the speakers inwards (toeing–in) or outwards (toeing–out) speaker will excite significantly less unwanted reflections from the you can further affect the focus and tonal balance of the system. room walls compared to conventional speakers. -
Page 17: Listening Height
. In order to avoid any kind of sound degradation, the usual glass–fuse is replaced as standard in all Avantgarde E–FUSE controlled devices by a massive copper bolt to bridge the power. For whatever reason this copper bolt may at any time be replaced by a conventional (according to the imprint on the device sticker) slow blow glass fuse. -
Page 18: Cleaning
If at the sole descretion of do not allow the exclusion or limitation of Avantgarde Acoustic it is necessary to ship incidental or consequential damages, so the product to the manufacturer, please the above limitations may not apply to you. - Page 19 Avantgarde Acoustic GmbH Nibelungenstrasse 349 D–64686 Lautertal Germany Tel: +49.6254.306 100 email: info@avantgarde-acoustic.de www.avantgarde-acoustic.de UNO SD & DUO SD & DUO GT USER MANUAL Version 1.1, December 2022...
