Romlair V Installation And Maintenance Instructions Manual

9668-D Heinrich Hertz Drive, San Diego, CA 92154
PH: 619-946-1224
SHIPPING INSPECTION
Romlair Model V, VS, and VA fans are thoroughly
inspected and test run at the factory.However, damage
may occur during handling and shipping. Upon
receiving unit, check for any damage and report it
immediately to the shipper. Also check to see that all
accessory items are accounted for.
INSTALLATION
LIFTING
When lifting the fans into place, attach an acceptable
chain or strap to the four windband mounting brackets.
It is important not to lift the fan by the motor,
windband, or accessories.
Carefully move the fan to the desired location and
fasten securely to the roof curb. Use fasteners to suit
construction and material. Fasteners are not supplied
by Romla Ventilator Company.
ELECTRICAL CONNECTIONS
The motor's amperage and voltage rating must be
checked for compatibility to the supply voltage prior to
final electrical connection. Consult local and national
electrical codes regarding supply wiring requirements.
PRE START-UP CHECKS
Check all fasteners for tightness. Movement may
occur during shipment and it is very important that all
fasteners are secure, This is very important on the
bearings and propellers. Manually rotate the propeller
by hand to make sure it turns freely and does not
make contact with the fan housing.
READ AND SAVE THESE INSTRUCTIONS
INSTALLATION AND MAINTENANCE INSTRUCTIONS

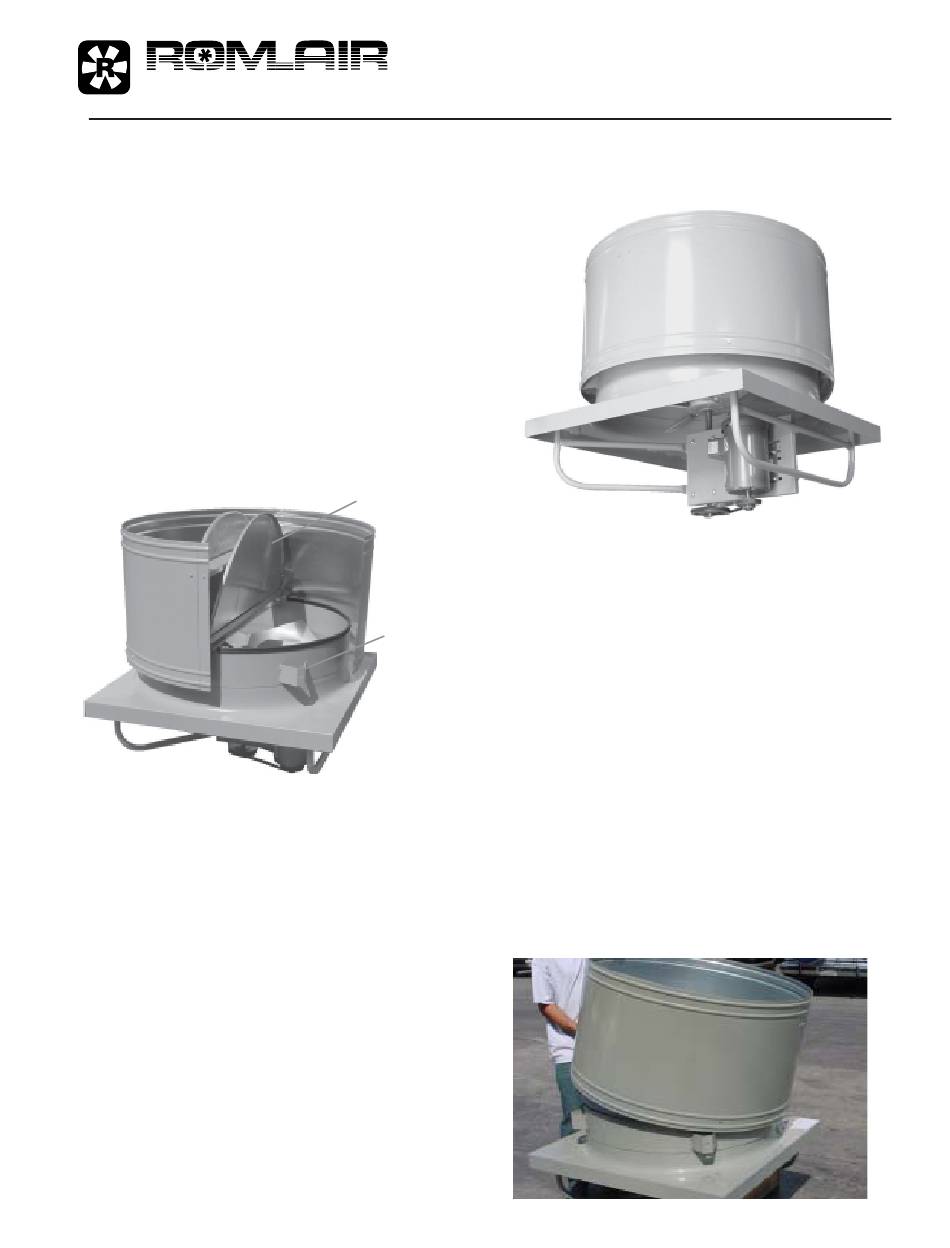

Damper Lid
Lifting Lug
MODEL V, VS, & VA
UPBLAST PROPELLER ROOF FANS
Direction of propeller rotation is critical. Reversed
rotation will result in poor air performance, motor
overloading and possible burnout. Rotation should
correspond to the rotation arrow located on the fan
propeller.
SERVICE ACCESS
REMOVABLE WINDBAND FOR FAN ACCESS
By simply removing the bolts from the windband
mounting brackets, the windband can be removed.
With the windband removed, access to the fan can be
gained through the butterfly dampers. This service
feature applies to models VS,VA, & V.
Step 1:
Remove the 1/4-20 bolts from the windband mounting
brackets, and then left up and placeto the side.
One person can do this on the smaller sizes, however,
on the larger sizes twomen may be required.
See Figure 1.
Figure 1
1
