ICMA S001 Technical Information Sheet

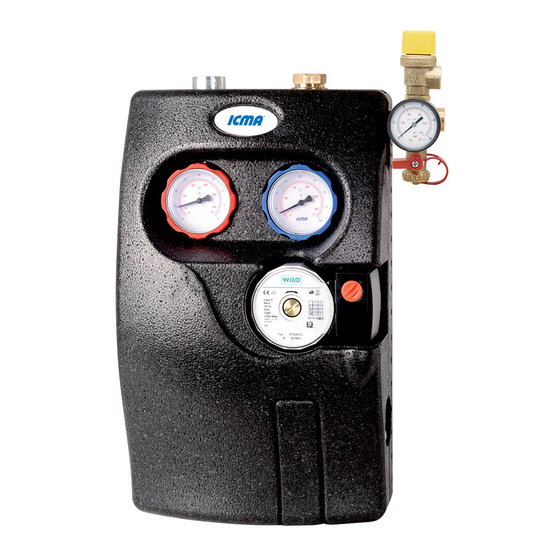

Art.S001-S002 SOLAR MODULE WITH
DELIVERY AND RETURN CONNECTIONS

FUNCTION

Series S001 and S002 circulation units
are applied to the primary circuit of
solar systems and oversee management
of the solar panel - storage tank fluid
thermodynamic cycle for subsequent
supply to utilities
distribution circuits.
They consist essentially of a circulator
with appropriate performance (rate of
flow/head) and regulation and control
devices governing the operating circuit.

TECHNICAL FEATURES

Fluid used:
Permitted temperature range:
Max. ambient temperature:
Max. operative pressure:
Min. pressure on intake
opening with temperatures of:
Min. pressure for opening on/off
and check valve:
Safety valve
Calibration of safety valve:
Safety valve temperature range: -30÷160°C
Connections of safety valves:
Further information
Manometer scale:
Thermometer scale:
System connections:
Connection with expansion tank: 3/4" M
Filling/emptying connections
with hose connection:
Component materials
Body
Thermometer
Seals
Sealing elements
Flat seals
Insulation shell
ICMA s.p.a. via Garavaglia, 4 20012 Cuggiono (MI) – ITALY - Tel. +39 02 97249134 / +39 02 97249135 Fax +39 02 97241550
via hydraulic
Water, glycol solutions
(glycol 25%÷50% max)
-10 °C / +160°C
+40°C
10 bar
+50 °C : 0,05 bar
+95 °C : 0.3 bar
+110 °C : 1 bar
∆p:2Kpa (200 mm c.a.)
6 bar
1/2" F
0÷6 bar
0÷160 °C
3/4" M
Ø 13 mm
Brass EN 12165 CW617N
Steel/Alluminium
PTFE
EPDM-Perox
Betaflex
PPE, Conducibility λ(∆T):
0.041 (W/mK)
www.icmaspa.it
Technical Information Sheet 07/2013 - ENG
Art.S001
Pump model: - Wilo
- Grundfos "Solar 15-65"
Centre-to-centre distance:
Electrical power supply:
Operatine temperature:
Max. temperature:
Max. operating pressure:
Protection level:
Water flow (m
e-mail: sales@icmaspa.it
Art.S002
"Solar ST20/6"
130 mm
230V - 50Hz
-10°C÷110°C c.a.
140°C for max 2 hours
10 bar
IP 44
Pump hydraulic features
Wilo "Solar ST20/6"
Pump hydraulic features
Grundfos "Solar 15-65"
3
/h) (1, 2, 3 = Fast pump)
1
