ICMA TAS001 Manual

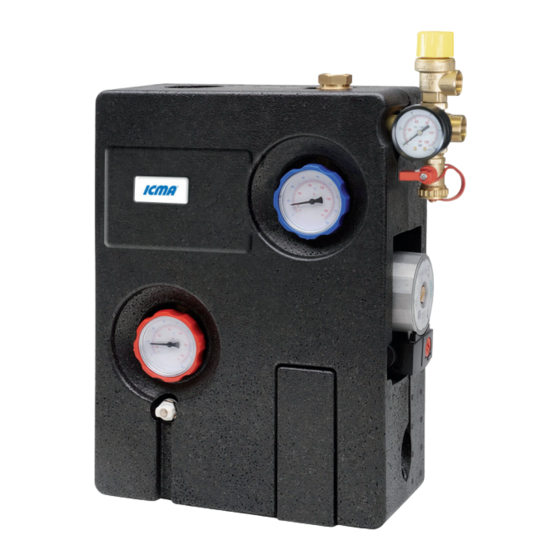

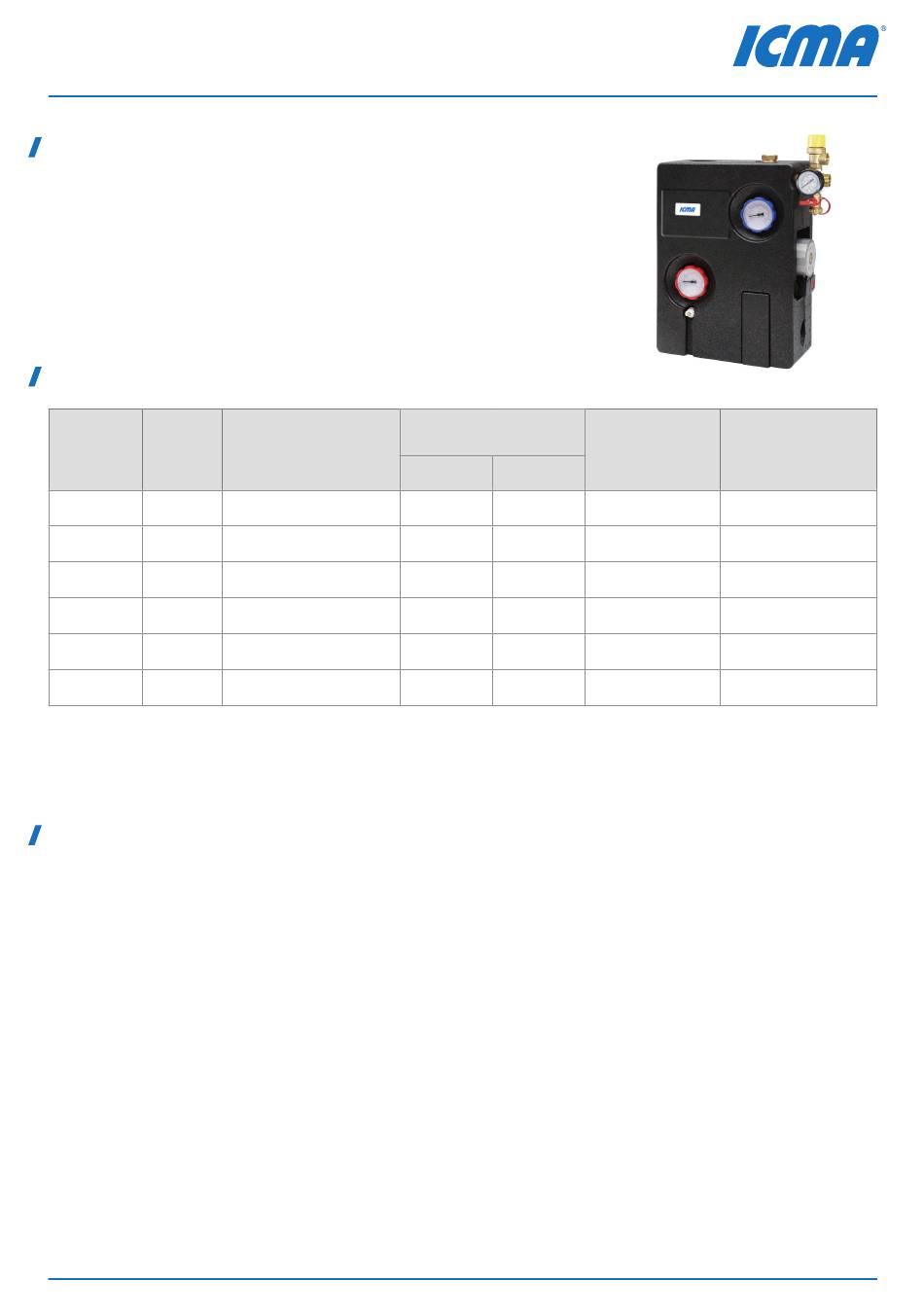

Solar module
Art. TAS001
Function
The solar module is employed in the primary circuits of solar
systems to manage the thermodynamic cycle of the heat-transfer
fluid between the solar panels and the hot water storage tank.
The TAS001 module is also equipped with electronic controller which,
through a sophisticated monitoring system and safety functions,
ensures the total protection of the system during its operation.
Product range
Art. Size
●
TAS001 3/4"
TAS001● 3/4"
TAS001 3/4"
TAS001 3/4"
TAS001 3/4"
TAS001 3/4"
●
Products equipped with circulators "Wilo ST 20/6" and "Grundfos 15/6" are intended for sale in non-EU countries.
*To be purchased separately in case of connection with electronic controller with PWM signal.
Technical specifications
PERFORMANCE
Fluids used:
Maximum percentage of glycol:
Maximum operating pressure:
Calibration of safety valve:
Temperature of the heat transfer fluid:
Safety valve temperature range:
Minimum pressure on the intake side:
Opening check valves minimum pressure:
Manometer scale:
Thermometers scale:
Circulators:
Icma SpA - Via Garavaglia, 4
20012 Cuggiono (MI) ITALIA
Circulator
Wilo ST 20/6
Grundfos 15/6
Taco ES2 15-70/130
UPM3 15-75
ELECTRONIC CIRCULATOR
Wilo RSTG 15/7.5
ELECTRONIC CIRCULATOR
Wilo Para ST 15/6
ELECTRONIC CIRCULATOR
Circulator control
signal
ON/OFF PWM
√ X
√ X
√ X
√ √
√ √
√ X
Water and glycol solutions
50%
10 bar
6 bar
See circulator specifications page 7
+160°C
See circulator specifications page 7
Δp: 2Kpa (200 mm c.a.)
0 ÷ 10 bar
0 ÷ 160°C
See circulator specifications page 7
1
TECHNICAL DATA SHEET - 07/2022 - ENG
PWM signal
cable
X TAS001AE05
X TAS001AE05G
X TAS001AES05166
NOT INCLUDED* TAS001AE05S163
INCLUDED TAS001AE05S164
X TAS001AE05S165
