INSTALLATION MANUAL
Specialists in Digital TV Distribution Solutions
DW42
FREE-TO-AIR HYBRID DISTRIBUTION AMPLIFIER

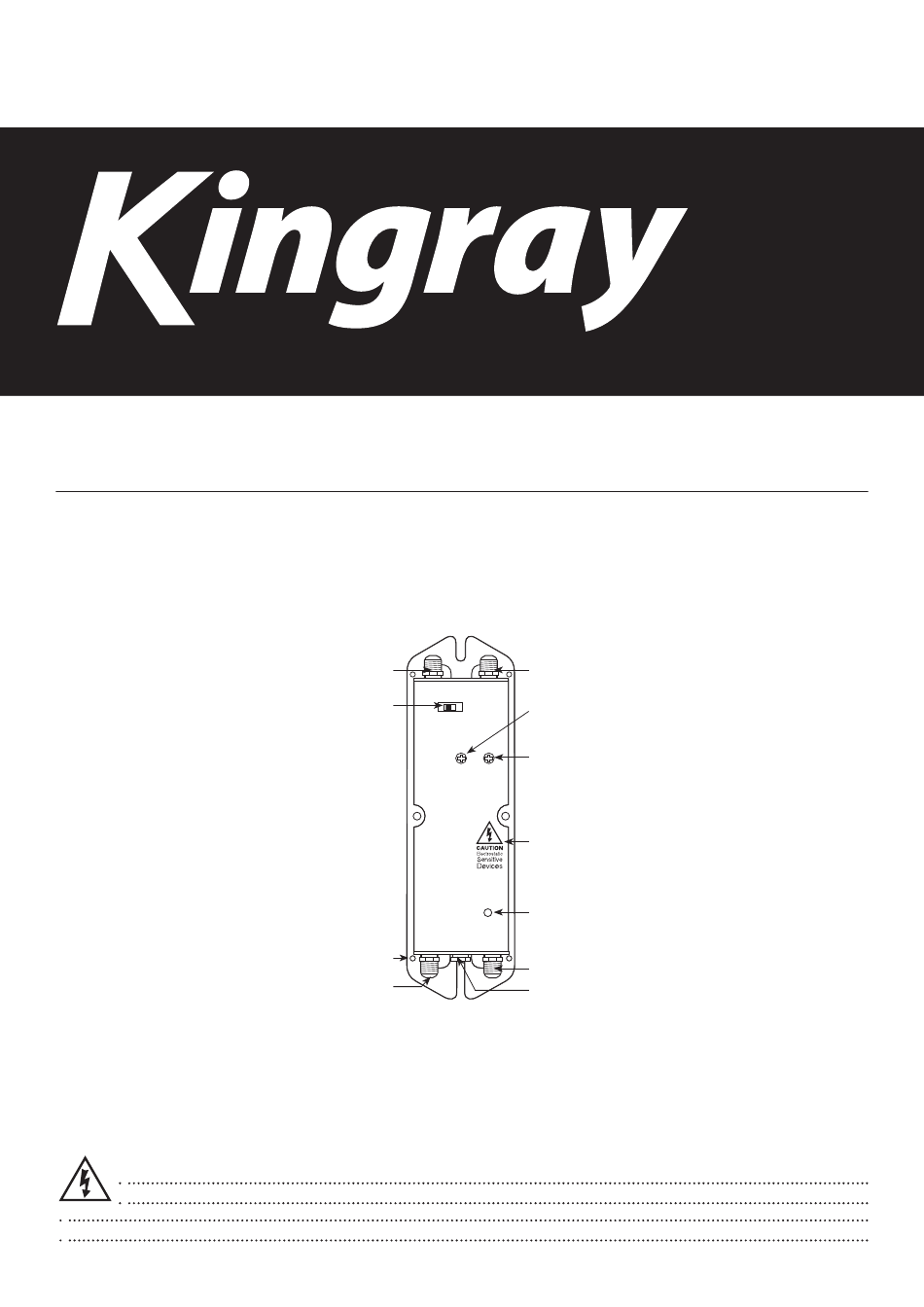

Fig. 1 (Lid removed)
Optimised for digital TV signal amplification.
Thank you for selecting an Australian designed and built amplifier.
The DW42 is an economical, low noise
Free-to-Air distribution amplifier for use in all analogue and digital applications. It features separate or combined inputs
with high output, adjustable gain and equalisation via the two mid-stage gain controls. See Fig.1.
CAUTION: This amplifier contains devices that are sensitive to Electrostatic Discharge (ESD).
WARNING: Do not connect power directly into the input sockets otherwise damage will occur.
VHF Input
Separate
or Combined
Input Switch
Earth
Poin
t
RF Output
UHF or
Combined
Input
20dB VHF
Gain Control
(174-300 MHz)
20dB UHF
Gain Control
(470-860 MHz)
Electrostatic
Warning
Power LED
Test Point
12-18V DC
Jack
