Issue 2011-05-04
Product Description

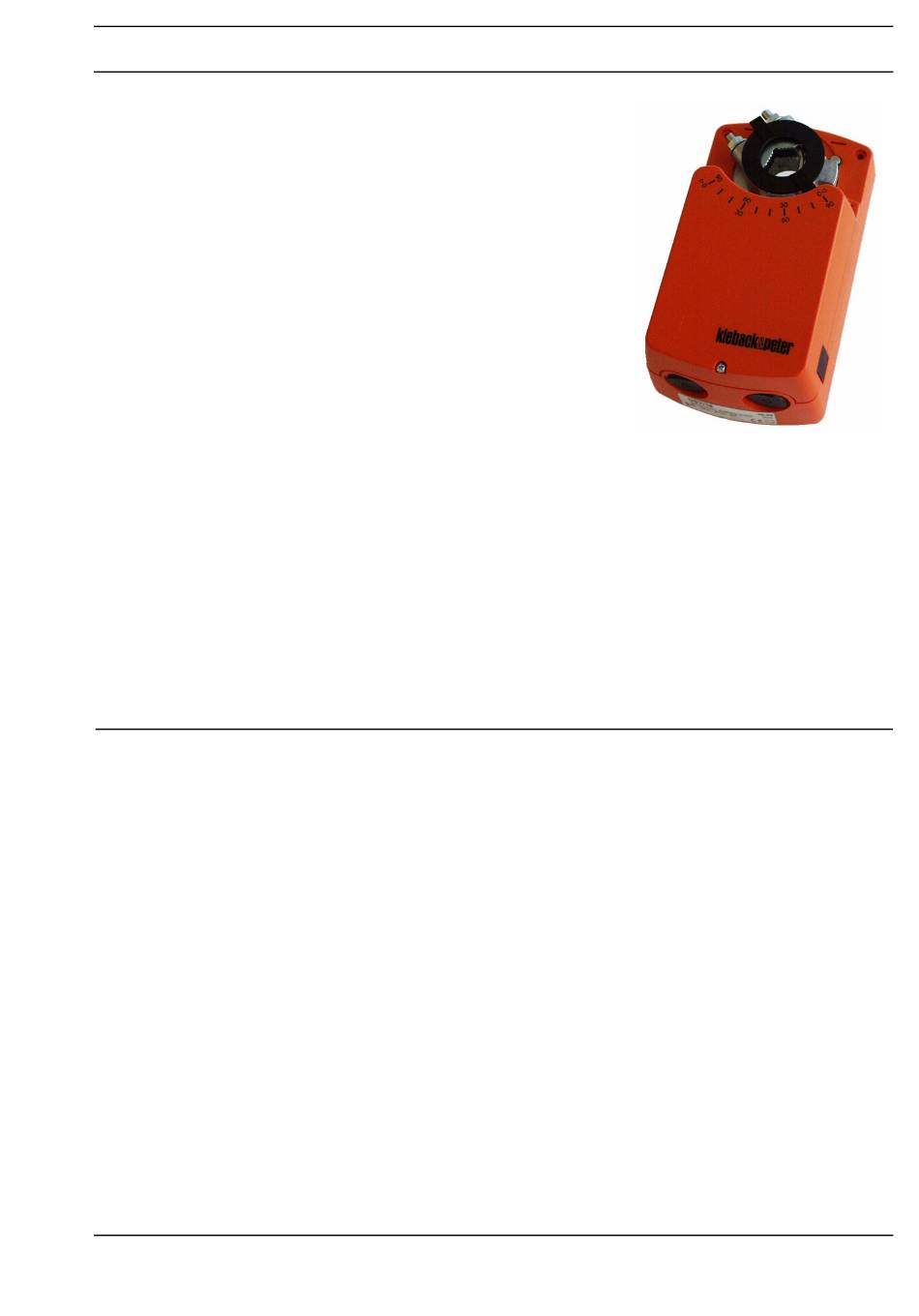

DSY/4..32 Actuating Drives
Application
DSY/4, DSY/8, DSY/16, DSY/24 and DSY/32 actuating drives with
continuous control are used to control air dampers in VAC systems.
The drives are equipped with a universal adapter and are mounted
directly on the air damper axle.
Content
Important Information Regarding Product Safety ..................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Accessories .........................................................................................................................................................3
Dimensions ..........................................................................................................................................................4
Connection...........................................................................................................................................................4
Mounting and Installation.......................................................................................................................................5
Commissioning ......................................................................................................................................................6
Setting rotational direction and rotational angle limitation DSY/4 ........................................................................6
Setting rotational direction DSY/8..32..................................................................................................................7
Rotational angle limitation DSY/8..32 ..................................................................................................................9
DSY/8..32/E auxiliary switch setting ..................................................................................................................10
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Změny vyhrazeny - Zmiany zastrzeżone - Возможны изменения -
A változtatások jogát fenntartjuk - 保留未经通知而改动的权力
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
Datasheet 3.50-32.016-01-EN
DSY/4..32
Page
A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kieback&Peter DSY/4
Summary of Contents for Kieback&Peter DSY/4
-
Page 1: Table Of Contents
DSY/4..32 DSY/4..32 Actuating Drives Application DSY/4, DSY/8, DSY/16, DSY/24 and DSY/32 actuating drives with continuous control are used to control air dampers in VAC systems. The drives are equipped with a universal adapter and are mounted directly on the air damper axle. -
Page 2: Important Information Regarding Product Safety
Important Information Regarding Product Safety Safety Instructions This data sheet contains information on installing and commissioning the product "DSY/4..32". Each person who carries out work on this product must have read and understood this data sheet. If you have any questions that are not resolved by this data sheet, you can obtain further information from the supplier or manufacturer. -
Page 3: Item
Technical Data 24 V AC ±20%; 24 V DC ±10% Nominal voltage Power consumption In operation DSY/4 = 2.5 W; DSY/8..32 = 2.5 W In end position DSY/4 = 0.75 W; DSY/8..32 = 0.3 W Control DSY/4 Control signal Y = DC 0 to 10 V; Ri > 100 kΩ... -
Page 4: Dimensions
Datasheet 3.50-32.016-01-EN Issue 2011-05-04 DSY/4..32 Product Description Dimensions DSY/4 DSY/8..32 Connection DSY/4 0..10 V DC 24 V AC/DC 0 V AC/DC 0 V DC 0..10 V DC DSY/8..DSY/32 DSY/8/E..DSY/32/E 0..10 V DC 24 V AC/DC 0 V DC 0 V AC/DC Additional connection for auxiliary 0..10 V DC... -
Page 5: Mounting And Installation
Issue 2011-05-04 Datasheet 3.50-32.016-01-EN Product Description DSY/4..32 Mounting and Installation WARNING Contact with live components of the building’s electrical system can cause death due to electric shock. Mount or remove only when power is switched off. Comply with VDE guidelines and local wiring regulations when mounting/removing. -
Page 6: Commissioning
Issue 2011-05-04 DSY/4..32 Product Description Commissioning Setting rotational direction and rotational angle limitation DSY/4 WARNING Contact with live components of the building’s electrical system can cause death due to electric shock. - Disconnect the actuator from power before removing the cover. -
Page 7: Setting Rotational Direction Dsy/8..32
Issue 2011-05-04 Datasheet 3.50-32.016-01-EN Product Description DSY/4..32 Setting rotational direction DSY/8..32 WARNING Contact with live components of the building’s electrical system can cause death due to electric shock. - Disconnect the actuator from power before removing the cover. (1) Cover screw (2) Sliding switch for manual adjustment Fig. - Page 8 Datasheet 3.50-32.016-01-EN Issue 2011-05-04 DSY/4..32 Product Description Adjusters O and S The Y control signal is preset to 0 to 10 V (Y1) and 0 to 20 mA (Y2) (adjuster O = 0, adjuster S = 10). Using both adjusters O (starting point) and S (working range), the input of the Y control signal can be changed.
-
Page 9: Rotational Angle Limitation Dsy/8..32
Issue 2011-05-04 Datasheet 3.50-32.016-01-EN Product Description DSY/4..32 Rotational angle limitation DSY/8..32 The maximum working range (rotational angle) of actuating drives DSY/8..32 is 90° (delivery setting). The adapter can be reinserted if the rotational angle needs to be limited. Setting Example Proceed as follows to limit the rotational range to 0°to 60°... -
Page 10: Dsy/8..32/E Auxiliary Switch Setting
Datasheet 3.50-32.016-01-EN Issue 2011-05-04 DSY/4..32 Product Description DSY/8..32/E auxiliary switch setting (1) Adapter with position indicator (2) Operating pins with the two micro- switches (3) Connection terminal for auxiliary switches (4) Pressure pin for manual adjustment Actual product not shown...
