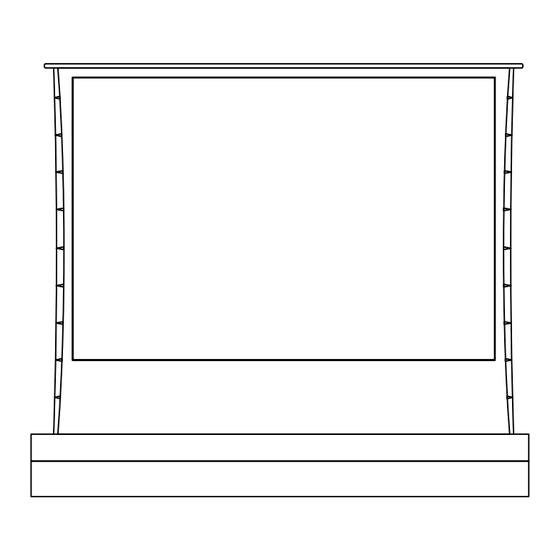

- Page 1 Phoenix Instruction manual for Phoenix floor rising projector screen Please read this manual before installing and using the projection screen. Retain this manual for future reference.
- Page 2 Screen (1pc) Remote control (1pc) Adjustment rod (1 pc) Power cable (1 pc) Items listed here may change without prior notice. The company reserves the right to all of the listed items.
-
Page 3: Important Safety Tips
Important Safety Tips WARNING: Incorrect installation and improper use may lead to mechanical failure or personal injury. Considerations for installing / using this product 1. Handle with care to avoid damage. 2. Do not expose the product to rainwater or any other form of moisture. 3. -
Page 4: Operating Methods
The adjusting rod come with the screen, but it’s not recommended to use it. The height of the screen has been pre-set before leaving the factory, if you need to adjust the height of the screen, please contact Carson Screens. - Page 5 Screen Control Methods 1. External DC/AC 12V power control method a. DC/AC 12V trigger signal goes from o to on, the screen turn on and runs upward; b. DC/AC 12V trigger signal from on to o , the screen turn o and downward operation;...
- Page 6 Screen Control Methods (cont.) 3. Central control: Connect the port to the 6P network cable RS485 Port Settings Baud rate: 2400 2. Data length: 8 3. Parity check: N 4. Starting bit: 1 5. Stop bit: 1 Control code “ Up” command: 0xFF 0xAA 0xEE 0xEE 0xDD 2.
- Page 7 Screen Control Methods (cont.) AC trigger linkage setting between projector and projection screen: Connect the AC trigger to the power interface of the projector first. 2. In the case of power on, press the "set" button behind the AC trigger with a paper clip or something similar.
-
Page 8: Specifications
Specifications... -
Page 9: Troubleshooting
Troubleshooting Screen Nature of fault Probable cause Solution Screen does not go Low battery in remote Replace battery up or down, non responsive Power cable not Connect the power connected cable Motor in thermal Let motor cool for 15 protection mode after minutes, then retry extended period of use Screen not fully closing... - Page 10 enquiry@carsonscreens.com.au carsonscreens.com.au...
