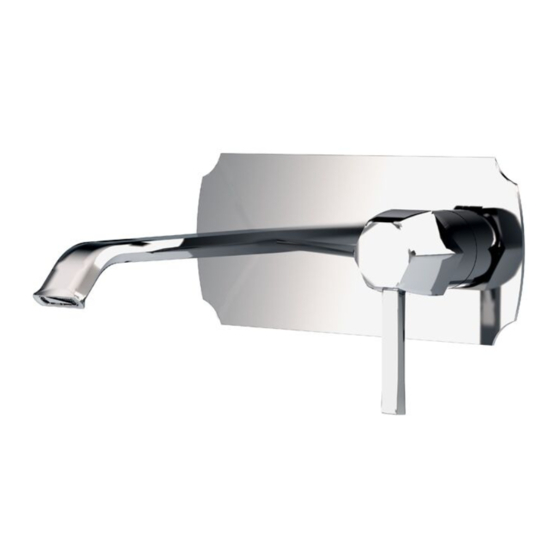

BELLOSTA Stresa 1405/3K Installation Instruction

BELLOSTA Stresa 1405/3K Installation Instruction

Advertisement

RICAMBI / SPARE PARTS
755129
MANUTENZIONE E PULIZIA
Per una corretta manutenzione e pulizia di questo
prodotto, raccomandiamo alcuni semplici accorgimenti:
• Utilizzare detergenti neutri , spruzzando il prodotto
direttamente su un panno morbido onde evitare
infiltrazioni
• Evitare sempre il contatto con prodotti acidi o abrasivi
• Risciacquare bene con abbondante acqua per
eliminare eventuali residui ed asciugare sempre con un
panno morbido
• Effettuare una pulizia periodica al fine di prevenire le
formazioni calcaree
La BELLOSTA CARLO & C. non è RESPONSABILE di
danni derivati dall'utilizzo di prodotti impropri per la
pulizia.
DESIGN
MADE IN ITALY
EQB
Questo prodotto è stato realizzato interamente
in Italia con l'utilizzo di materie prime di altissima
qualità
025002
106005
144016 X ART.1405/3K, 1405/3/1K
164004 X ART.1605/3K, 1605/3/1K
COD. 755129
COD. 106005

MAINTENANCE AND CLEANING

For a proper maintenance and cleaning, we
recommend the following:
• Use neutral detergents , avoiding to spray directly
on taps to avoid residual infiltration
• Avoid contact with acid or abrasive products
• Rinse with water and always dry with a clean cloth
to avoid residue of detergent
• Perform a periodic cleaning to prevent limestone
deposits
BELLOSTA CARLO & C. cannot be held responsible for
damages due to an improper use of detergents
MADE IN ITALY
This product has been entirely manufactured
in Italy, by top quality raw materials.
Rubinetti d'autore dedicati a te
ISTRUZIONI DI INSTALLAZIONE / INSTALLATION INSTRUCTION
COD. 144016
ART. 1405/3K
ART. 1605/3K
Per installatore: Al fine di garantire la durata del prodotto installare rubinetti con filtro da pulire periodicamente. Effettuare risciacquo
delle tubazioni prima di installare il prodotto (PUNTO 1)
Eventuali residui se finissero all'interno della cartuccia potrebbero cusarne il danneggiamento
For installator: In order to guarantee a long duration of the product install valves with filter, which have to be regulary cleaned (POINT 1). Carry
COD. 164004
out the rinsing of the pipes before install the tap.
Some external materials may demage the cadrige if not removed before installation
1
IMPORTANTISSIMO
COD. 025002
4
IMPORTANTE
IMPORTANT
PAVIMENTO
FLOOR
ALLINEARE
ALIGN
IMPORTANTE
IMPORTANT
PAVIMENTO
FLOOR
D
stresa
ART. 1405/3/1K
ART. 1605/3/1K
3
2
ART.
1405/3K, 1605/3K
1405/3/1K, 1605/3/1K
5
215
ART.
1405/3K
1605/3K
1405/3/1K
1605/3/1K
Max. 170
Mantenere un apertura sul muro
di circa 45 per garnatire perfetto
montaggio della piastra
MURO
FINITO COMPRESO
RIVESTIMENTO
--------------
ENDED WALL
INCLUSIVE
OF COVERING
Y MISURA IDEALE
Y IDEAL MEASURE
X
X
Y
35-50
42,5
Dimensioni
della piastra
Wall Plate
Dimension
A
