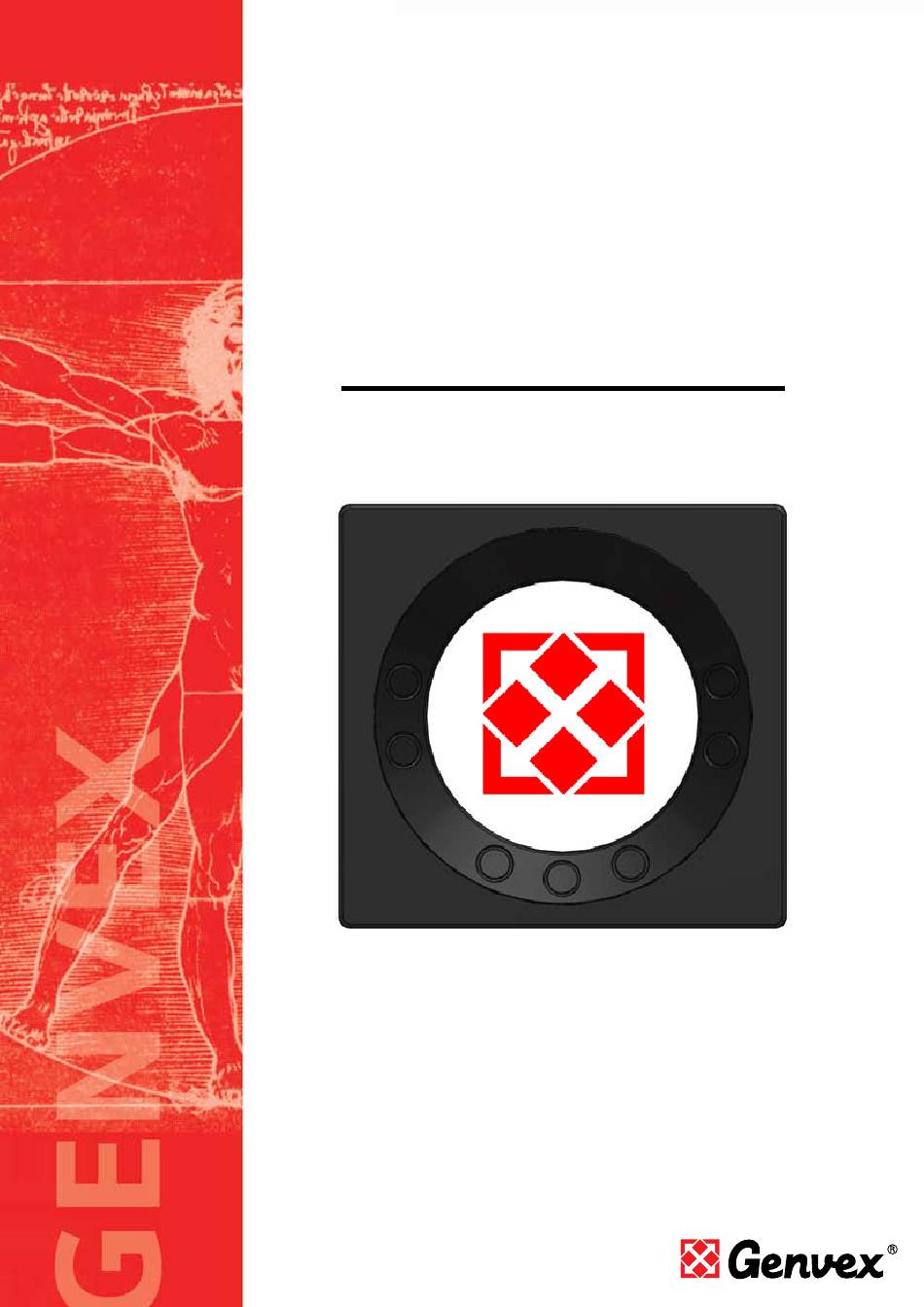

- Page 1 User ManUal Optima 300 DESIGN Version V1.02 - 0209...
-
Page 2: Table Of Contents
Optima 300 Table of contents Page 1. Control panel ............3 2. Installation..............4 2.1 Installation of the control panel ........4 2.2 Mounting ..............4 3. Start-up ..............5 4. Operating..............6 4.1 Operating and changing data in the operating menu............6 4.2 Daily operating options ..........7 4.3 Main menu ...............8 4.4 Schedule for week program........16 4.5 Schedule for defrosting..........16... -

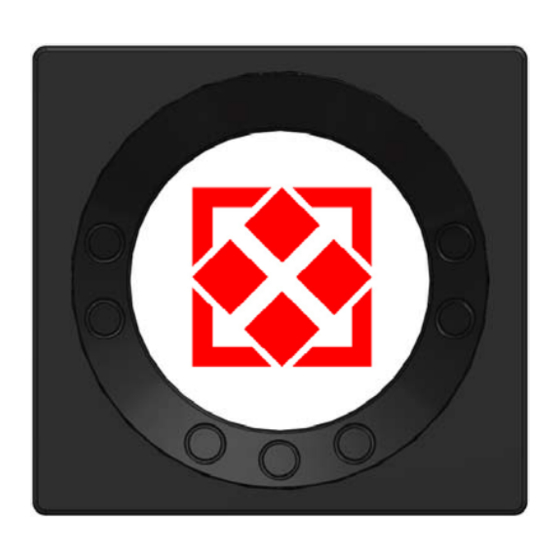

Page 3: Control Panel
SD-card. However, the help texts will not appear on the screen and the data logs will not be saved. 4: In order for a computer to read the data logs, it must have the Genvex data logger program installed. -
Page 4: Installation
Optima 300 2. Installation At the bottom of the control panel there is access to: 2.1 Installation of the control panel A: Terminal board. Connection to main circuit board B: SD card The control panel is intended for hanging on a wall. The C: Room sensor control panel must be positioned in the home at a height D: Light sensor... -
Page 5: Start-Up
Optima 300 3. Start-up The first time the device is started, the control panel display will show: “Choose language”. Click “Next” to switch between Danish, English, German and French. Press “Enter” when the desired language is shown in the display. The control panel will now read the current program version in the selected language according to the IC circuit’s version on the main circuit board in the device. -
Page 6: Operating
Use the button beside the after-heat symbol to change All Genvex heat pumps of type GE VP/VPC and GE between ON or OFF. If the symbol is set at ON and the Premium for houses and are delivered with Optima 300... -
Page 7: Daily Operating Options
Optima 300 4.2 Daily operation options regulate between the entered values in items 09 and 10 and, when operating, between the entered values in items 07 and 08. Both will The menu item with the Display symbol depend on how dark the room is. This menu is divided into 12 menu items Lightness day. -
Page 8: Main Menu
Enter the selected password here and use this Use this function to configure and change the date. also in item 12 to enter items 13 to 18. If you forget your password, contact Genvex Service department for assistance. To change the password, enter a new password in this item and press enter. - Page 9 Optima 300 temperature difference to which the temperature should be lowered. Example: May = 5, If the temperature is set to 21ºC and you then June = 6, enter – 2.0º, the device will aim at 19ºC. If the July = 7, speed has been changed manually on the August = 8, button under daily operation, the program will...
- Page 10 Optima 300 configured room temperature in item 1 before the cooling may start. (Cooling costs money). The set-point can be configured to between 3°C and 10°C. The default setting is 5°C. Item 3: Cooling ON / OFF For devices of type VP that are not equipped with automated cooling, the set-point must be configured to OFF. For devices with automated cooling of type VPC or Premium, the set-point can be configured to ON and the device will cool when the item performance increases to over the configured temperatures in item 2. If cooling is...
- Page 11 Optima 300 Light day pause • Press Arrow down to display the current speeds This function can be used to configure and change how of the fans and the opening of the bypass long the break should be for light in the display during the valve and the opening of the water valve: daytime. Light night pause This function can be used to configure and change how long the break should be for light in the display during the night-time.
- Page 12 Optima 300 alarm will be given when these are short circuited equipment and can be performed without the use of and the device will stop. the main regulating valve. Configuring the air volumes Change filter ON without expert advice is not recommended. Incorrect Error: The filters must be changed configuration can lead to major energy consumption. The Pressure switch ON default setting is 40%. Error: The high-pressure switch is disconnected due to excessive pressure in the cooling system.
- Page 13 Optima 300 Item 17: Timer levels 3 and 4 If automatic reconnection is used for speeds 3 or 4, you can enter how many hours the installation should run on level 3 or 4 before it is automatically returns to level 2. The set-point can be set to between 1 and 9 hours.
- Page 14 Optima 300 Item 27: Help functions (R9) Item 28: Device stop Help functions with relay 9 can be used for the following: It is possible to ensure that the device cannot stop by • If the set-point is configured to 0, the help relay is using the button for the icon: turned off.
- Page 15 Optima 300 point to ON, the volume of diffusion air will be lowered configured to ON. If there is no extra relay circuit board, when the fresh air temperature falls below the configured the set-point must be configured to OFF. The default temperature. If the set-point is configured to OFF, there setting is OFF will be no reduction of the diffusion air volume. This configuration is used when there is a pre-heat surface on Item 39: Extra electric pre-heat the fresh air. If the extra electric pre-heat is set to ON in item 38, the The default setting is OFF set-point must be configured to the desired fresh air temperature to which the electric pre-heat surface should...
-
Page 16: Schedule For Week Program
Optima 300 4.4 Schedule for weekly program Monday Tuesday Wednesday Hours Speed Red. Hours Speed Red. Hours Speed Red. nutes nutes nutes Thursday Friday Saturday Hours Speed Red. Hours Speed Red. Hours Speed Red. nutes nutes nutes Sunday 4.5 Schedule for defrosting Hours Minutes Speed Red. -
Page 17: Schedule For Set-Points
Optima 300 4.6 Schedule for set points Headline Default: Configuration area: Dato: Dato: Dato: Dato: Temperature 10 - 30 Cooling 3 - 10 Cooling ON/OFF ON / OFF Timer levels 3 and 4 ON / OFF Change filter 1 - 6 Level 1 Supply Level 2 Supply Level 3 Supply... -
Page 18: Function
Optima 300 5. Function 5.2 Extra capacity Electrical after-heat: 5.1 Control system Optima 300 If there is a greater requirement for heat that the unit can supply, the electric after-heat can be configured (additional equipment) to ON in the main menu with the Room regulation: shortcut key. The room temperature is controlled by the room sensor T2, which is fitted in the control panel. If a temperature of e.g. 21°C has been configured, the compressor will... -
Page 19: Connection To Pc
The data logger software is for configuring and monitoring be a page number in the bottom corners of the logging Genvex devices. The hardware part of the data logger area. Change the page by clicking on the red arrow. is required if you want a connection to the device. The... - Page 20 Optima 300 Zoom – To make the picture bigger or smaller password. The password is not supplied. View average – To view an average of the graphs in the selected window. Clock/week program in control system – Opens the box below.
-
Page 21: Direct Data Logging
Optima 300 Folders for the log files can also be selected, e.g. it is recommended to create a folder under “Documents” got logs and get the program to suggest this folder as default. Generally: Note that: • The loggings are not connected to the set-up, i.e. although the solution is taken from either the hard disc or from the control panel, it may not necessarily Click on “Receive data”... -
Page 22: Maintenance
Optima 300 7. Maintenance wheels are not removed, as this will lead to disequilibrium and cause a higher level of noise and also cause wear to Follow the following instructions to achieve optimal the fans. performance: Air supply and extraction valves: Before opening the device, turn off the power, Clean the valves by drying with a dry cloth. -
Page 23: Troubleshooting
• Defective sensor. Press the red button for RESET. If the error is not one of those listed above, please contact your installer or the GENVEX customer centre 8.2 The device is not running The device stops: Check the following: •... - Page 24 Fax: +351 229 065 125 E-Mail: paulo.neto@iberterm.com Presented by: Web: www.iberterm.com Slovenia Pichler & CO d.o.o. 2000 Maribor Tel.: +386/ (0) 2/460 13 50 Fax: +386/ (0) 2/460 13 55 E-Mail: pichler@pichler-co.si Published by Genvex A/S, Sverigesvej 6, DK-6100 Haderslev www.genvex.dk...
