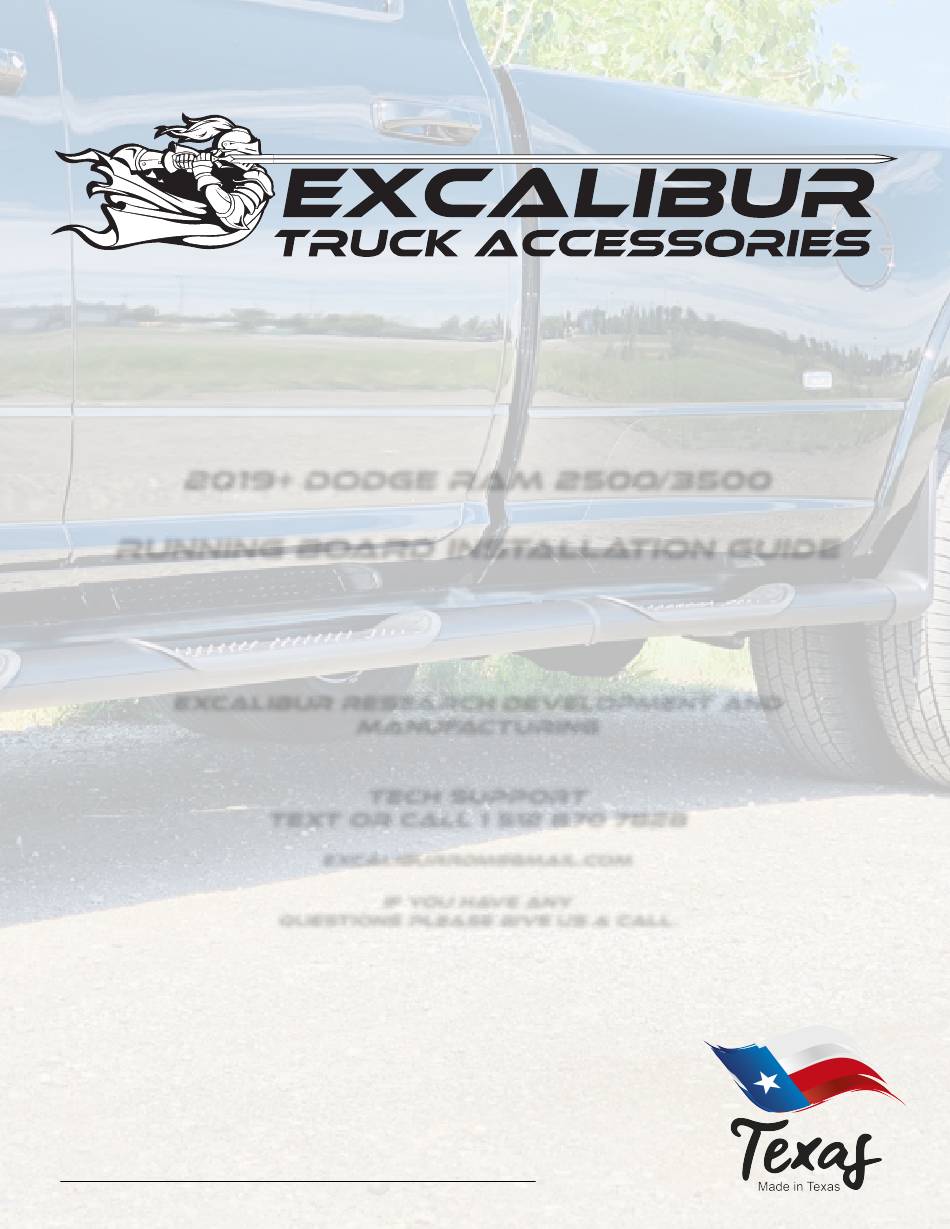

- Page 1 2019+ dodge ram 2500/3500 running board inst alla tion guide Excalibur research development and manufacturing tech support text or call 1 512 870 7828 excaliburrdm@gmail.com If you ha ve any questions please give us a call. excaliburtruckusa.com...
-
Page 2: Parts List
10mm Socket or Combination 1. ASSEMBLE THE RUNNING Wrench BOARDS. 18mm Socket with 24’’ extension. Install the mud guards on the running boards prior to installation. Breaker bar. Locate and identify the left and Box cutter or sharp knife right mud guard. OPTIONAL: Wax based under coating to cover brackets and hardware at the end of the install. - Page 3 Single and dual rear wheel plastics remov al. On the 2019 and up Ram 2500 and 3500 pickup trucks the lower section of the box is protected by a plastic valance. This plastic needs to be removed to allow for the running board seal to sit against the body.
- Page 4 2. INSTALL MOUNTING HARDWARE. 1. LOCATE CAB BRACKET MOUNTING LOCATIONS. Using the supplied “feeder tube”, located in the hardware package included with the cab brackets, insert the supplied 12 Located on the sill of the vehicle there will be “elevator” bolts into the factory mounting locations. three factory mounting locations.
- Page 5 5. (A) ADD THE BASE BRACKETS. 4. MOUNT THE CAB BRACKET SUPPORT NOTE: THE IF THE CAB BRACKETS ARE CORRECTLY INSTALLED THE FRONT BRACKETS Using the supplied M8 Bolt and flat washer insert the bolt from WILL BE DIFFERENT FROM THE REST OF THE the outside of the vehicle towards the inside of the vehicle REAR BRACKETS.
-
Page 6: Passenger Side
6.6, 8.0 SINGLE REAR REAR BRACKET CROSSMEMBER LOCATIONS FOR 8.0 BED AND 6.6 BED. WHEEL REAR BRACKET INST ALLA TION. 1. LOCATE THE MOUNTING LOCATIONS FOR THE REAR BRACKETS. The rear bracket will be mounted to the factory box mounting bolt. (shown on the left) and a 10 mm drilled hole. - Page 7 6.6, 8.0 SINGLE REAR WHEEL REAR BRACKET INST ALLA TION cont. 5. SECURE THE FRONT OF THE BRACKETS. Re align the passenger bracket and thread the supplied M8 flanged nuts onto the blind fastener. TIP: ON VEHICLES WITH A DEISEL ENGINE, PULL THE DPF LINES OUTWARD 6.
- Page 8 8.0 DUALL Y REAR BRACKET INST ALLA TION. PASSENGER DRIVER SIDE 1. LOCATE THE REAR BRACKET MOUNTING LOCATIONS. Using the above picture for reference, locate the mounting location for the driver side and passenger rear brackets. ALL PICTURES BELOW ARE SHOWN ON PASSENGER SIDE 2.
-
Page 9: Driver Side
DRIVER SIDE 5. BOLT THE REAR BRACKET TO THE TOP MOUNT. With all the hardware in place, make sure all the fasteners on the rear brackets are tight. As seen in the above picture there should be a large amount of clearance around the DPF Filler lines. - Page 10 7. PLACE THE RUNNING BOARD ON THE BRACKETS. 8. SNUG THE BOLTS ATTACHING THE RUNNING BOARDS TO THE BRACKETS. With the rear bracket install complete, place the running boards on the bace brackets, aligning the T-Bolts with the With the running board placed on all the cab brackets slots in the bracket.
- Page 11 SS self drilling screws. the inst all should now be complete. please pass this booklet on to the end user as it has informa tion on maintenance and warranty. for ANY technical difficulties please phone excalibur truck accessories 1 512 870 7828...
-
Page 12: Warranty
The following terms and conditions apply to this warranty; This warranty is only in effect to the original purchaser and shall not apply if the Excalibur Running Boards have been removed from the original vehicle which they were installed on.
