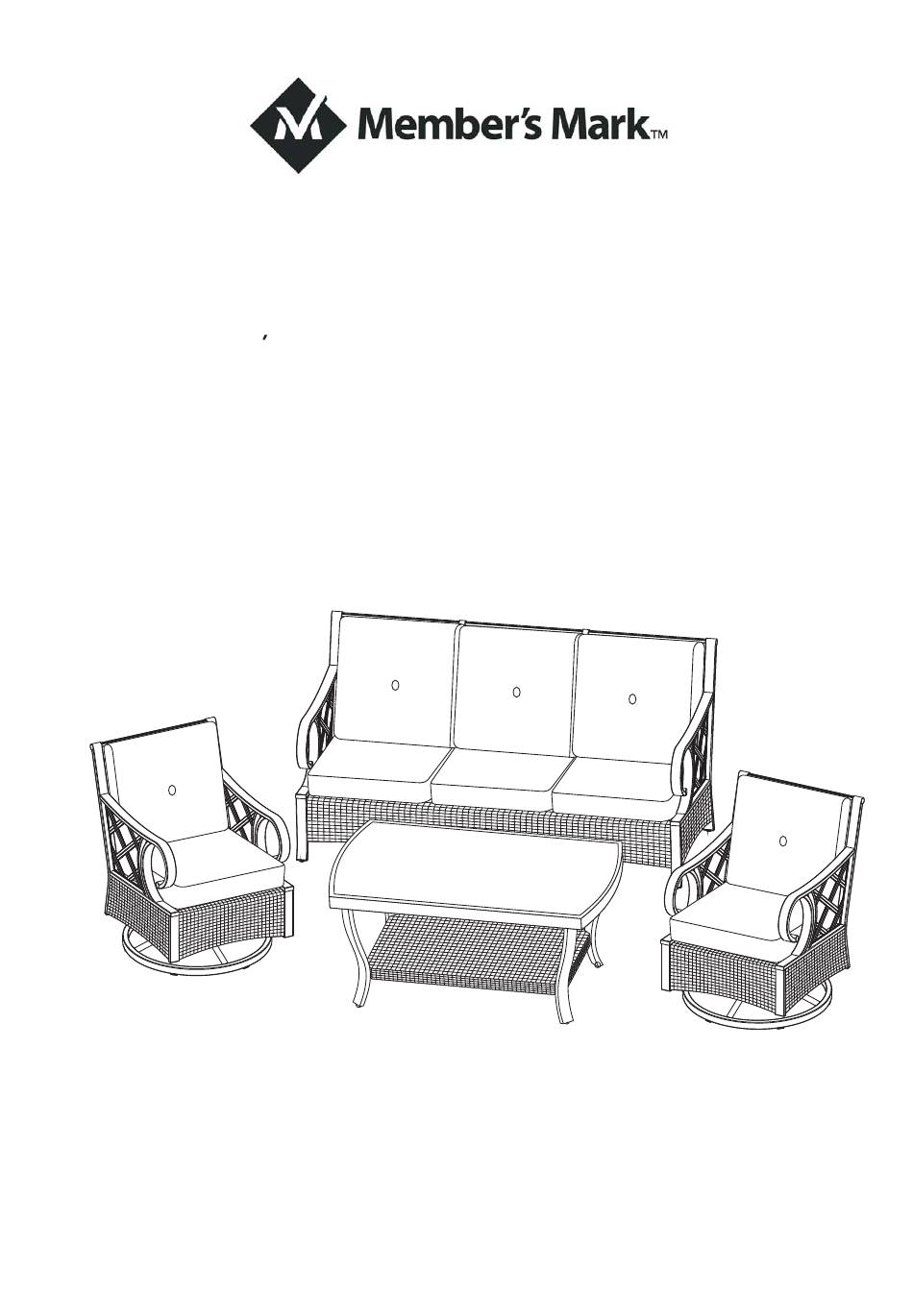

Assembly Instructions & User's Manual
for
Members Mark Napa 4pc Deep Seating Set
Item Number:
Model Number: AGT14723-4SC
Customer Assistance
: 1-800-416-3511
(spare/replacement parts)
or Email: customerservice@agio-usa.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 1
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Advertisement
Table of Contents
Related Manuals for Members Mark Napa AGT14723-4SC
Summary of Contents for Members Mark Napa AGT14723-4SC
- Page 1 Assembly Instructions & User's Manual Members Mark Napa 4pc Deep Seating Set Item Number: Model Number: AGT14723-4SC Customer Assistance : 1-800-416-3511 (spare/replacement parts) or Email: customerservice@agio-usa.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Table of Contents Quality Statement.............3 Important Safety Information..........3 Before Assembly..............3 Package Contents............4 Product Information............5 Sofa Components...............6 Hardware..............6 Tools................6 Step1-Step2...............7 Coffee Table Components..............8 Hardware..............8 Tools................8 Step1-Step4............9-10 Care & Use and Storage Instructions........11 Warranty Information............11 Page 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime. -
Page 4: Package Contents
Package Contents 1Set / 1Ctn Box 1 of 1： Component Description Quantity Swivel Glider Sofa Coffee Table Furniture Cover Page 4 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 5: Product Information
Product information Factory Weight Description Dimensions Part No. Assembly Capacity 250lb per seat Swivel Glider AGT14723 32"W*26.5"D*36"H A.Foot Cap FC0768 Factory Weight Description Dimensions Part No. Assembly Capacity 250lb per seat, AGT14706 32.75"W*72.5"D*36"H Sofa total 750lb A.Foot Cap-1 FC0607 B.Foot Cap-2 FC0710 Factory Weight... -
Page 6: Components
Components SOFA FRAME B MIDDLE LEG Part No. AK1466 Part No. AK1467 Qty 1 Qty 1 Hardware (H1) (H2) 5/16" X 35 MM BOLT Ø8.5 X 1.5 MM WASHER PART NO: PART NO:HW0820 HW0861 Qty: 3 Qty: 3 Tools (H3) HEX BOLT DRIVER PART NO:HW0006 Qty: 1... -
Page 7: Step1-Step2
Step 1 - Step 2 Step 1 (H1) (H3) (H2) 5/16" X 35 MM BOLT HEX BOLT DRIVER Ø8.5 X 1.5 MM Qty: 3 Qty: 1 WASHER Qty: 3 NOTE: Bolts must be FULLY tightened. Step 2 Page 7 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 8: Components
Components TABLE TOP LEG CONNECTOR BRACKET TABLE LEG Part No. AT53050 Part No. AT53051 Part No. AT53052 Qty 1 Qty 1 Qty 4 Hardware (H1) (H2) (H3) 1/4" X 20 MM BOLT 1/4" X 30 MM BOLT Ø6.5 X 1.0 MM WASHER PART NO:HW0802 PART NO:HW0817 PART NO:HW0004... -
Page 9: Step1-Step4
Step 1 - Step 4 Step 1 (H4) (H1) Ø18 X Ø6.5 X 1.0 MM 1/4" X 20 MM BOLT WASHER Qty: 8 Qty: 8 Hand tighten only 2-3 turns. Step 2 (H3) (H2) Ø6.5 X 1.0 MM WASHER 1/4" X 30 MM BOLT Qty: 8 Qty: 8 Hand tighten only 2-3 turns. - Page 10 Step 3 (H5) HEX BOLT DRIVER Qty: 1 NOTE: Bolts must be FULLY tightened. Step 4 Page 10 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
-
Page 11: Care & Use And Storage Instructions
Care & Use Instructions CARE AND MAINTENANCE FRAMES Cleaning - Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and dry thoroughly. Maintenance - Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. - Page 12 Distributed by Sam's West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in China Page 12 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
