Assembly Instructions & User's Manual
for

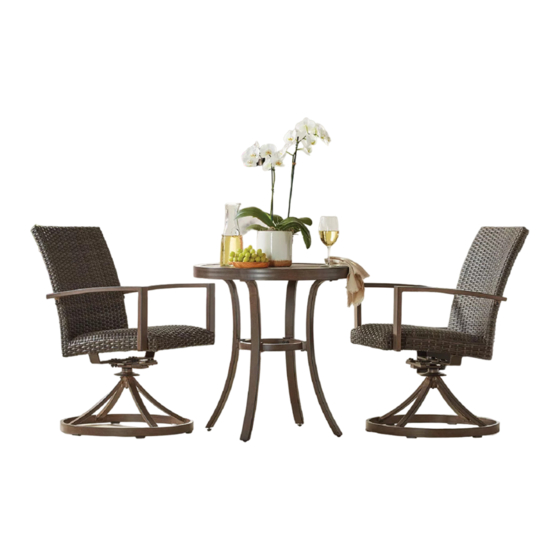

Members Mark Fremont 3pc Bistro Set
Item Number:
Model Number: BFV01301-3P
Customer Assistance
: 1-800-416-3511
(spare/replacement parts)
or Email: customerservice@agio-usa.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 1
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Members Mark Fremont BFV01301-3P
Summary of Contents for Members Mark Fremont BFV01301-3P
- Page 1 Assembly Instructions & User's Manual Members Mark Fremont 3pc Bistro Set Item Number: Model Number: BFV01301-3P Customer Assistance : 1-800-416-3511 (spare/replacement parts) or Email: customerservice@agio-usa.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Page 1...
-
Page 2: Table Of Contents
Table of Contents Quality Statement.............3 Important Safety Information..........3 Before Assembly..............3 Package Contents............4 Product Information............5 Swivel Rocker Components..............6 Hardware..............6 Tools................6 Step1.................7 Table Components...............8 Hardware..............8 Tools................8 Step1-Step4............9-10 Care & Use and Storage Instructions.........11 Warranty Information............11 Page 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 3: Quality Statement
Quality Statement Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime. -
Page 4: Package Contents
Package Contents 1Set / 2Ctn Box 1 of 2： Component Quantity Description Swivel Rocker Table Leg Leg Connector Bracket Box 2 of 2： Component Description Quantity Table Top Page 4 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 5: Product Information
Product information Weight Factory Description Dimensions Part No. Capacity Assembly 250lb per seat Swivel Rocker BFV01301 23.75" W *27.25" D *36" H A.Foot Cap FC0359 Weight Factory Description Dimensions Part No. Capacity Assembly 28" RD * 28"H Table ALE16819 A.Foot Cap FC0614 Page 5 Need Assistance? Visit us at: samsclub.com/membersmarkhelp... -
Page 6: Components
Components CHAIR FRAME SWIVEL BASE & ROCKER Part No. SR0299 ASSEMBLY Qty 1 Part No. SR0230 Qty 1 Hardware (H1) (H2) (H3) 5/16" X 35 MM BOLT Ø8.0 X 2.3 MM SPRING WASHER "U" METAL PLATE PART NO:HW0820 PART NO:HW0003 PART NO:HW0760 Qty: 4 Qty: 4... -
Page 7: Step1
Step 1 (H1) (H2) (H3) 5/16" X 35 MM BOLT Ø8.0 X 2.3 MM SPRING WASHER U" METAL PLATE Qty: 4 Qty: 4 Qty: 2 (H4) (H6) (H7) 5/16" NUT HEX WRENCH-1 HEX WRENCH-2 Qty: 4 Qty: 1 Qty: 1 CAUTION: 1.Note the horseshoe shape of the rocker plate. -
Page 8: Components
Components TABLE TOP LEG CONNECTOR BRACKET TABLE LEG Part No. AT73129 Part No. AT73130 Part No. AT73131 Qty 1 Qty 1 Qty 4 Hardware (H1) (H2) (H3) 1/4" X 32 MM BOLT Ø18 X Ø6.5 X1.5 MM WASHER Ø6.5 X 1.0 MM WASHER PART NO:HW0860 PART NO:HW0712 PART NO:HW0004... -
Page 9: Step1-Step4
Step 1 - Step 4 Step 1 (H1) (H2) 1/4" X 32 MM BOLT Ø18 X Ø6.5 X1.5 MM Qty: 4 WASHER Qty: Hand tighten only2-3 turns. Step 2 (H1) (H3) 1/4" X 32 MM BOLT Ø6.5 X 1.0 MM WASHER Qty: 8 Qty: Hand tighten only 2-3 turns. - Page 10 Step 3 (H4) HEX BOLT DRIVER Qty: 1 NOTE: Bolts must be FULLY tightened. Step 4 Page 10 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
-
Page 11: Care & Use And Storage Instructions
Care & Use Instructions CARE AND MAINTENANCE FRAMES Cleaning - Use mild soap and warm water. Do not use abrasive materials, cleansers or bleach products. Rinse with clean water and dry thoroughly. Maintenance - Periodically clean and dry thoroughly. Be sure to drain any water accumulated inside the frames. - Page 12 Distributed by Sam's West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in China Page 12 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
