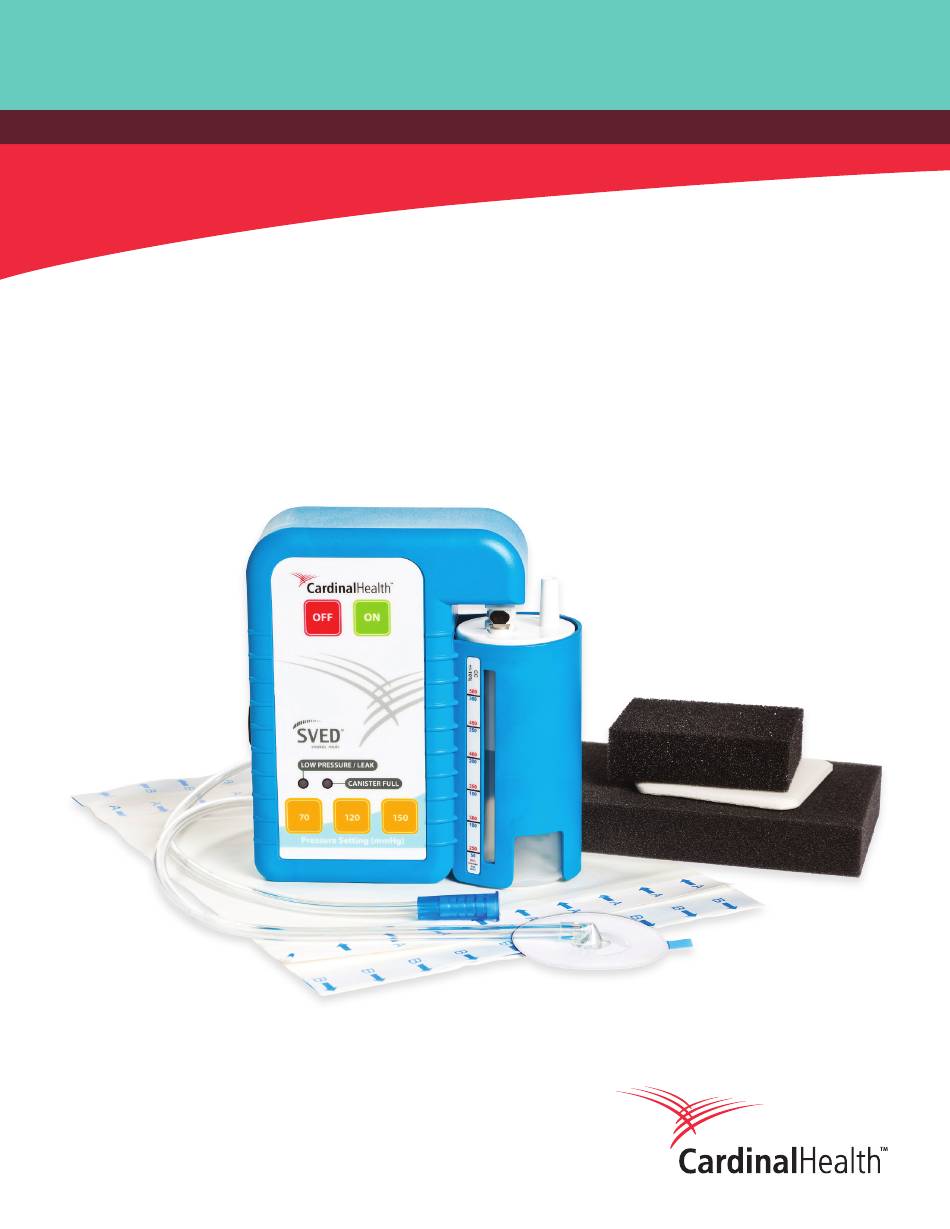

- Page 1 Cardinal Health™ SVED ® Patient User Manual Cat. 6701132...
- Page 3 • Keep the Cardinal Health SVED device turned on at all times unless there is bleeding from the wound or instructed by your Healthcare Professional. • Do not change the settings on the Cardinal Health SVED device unless you are told to do so by your Healthcare Professional. Things to ask your Healthcare Professional •...
- Page 4 CAUTION: This Cardinal Health™ SVED® PATIENT User Manual is not a guarantee or warranty. It is intended only as an operational guide. For additional information and questions, please contact the Cardinal Health Customer Service department at 1.866.484.6798. In order for the Cardinal Health™ SVED® to provide safe, reliable, and proper performance, the following conditions must be met.
-
Page 5: Table Of Contents
1.3 Precautions ................................ 4 1.4 Additional Precautions ............................4 1.5 Safety Tips ................................. 5 2. Introduction to the Cardinal Health™ SVED device ......................6 2.1 Getting to know the device ..........................6 2.2 Charging the Battery ............................6 2.3 Changing the Canister ............................8 2.4 Disconnecting the Device .......................... -
Page 6: Important User Information
Precautions should be taken for patients with infected wounds, active bleeding, difficult wound hemostasis, or who are on anticoagulants. When placing the Cardinal Health™ NPWT foam dressing in close proximity to blood vessels or organs, take care to ensure that they are adequately protected with overlying fascia, tissue or other protective barriers. -
Page 7: Safety Tips
KEEP THERAPY ON The Cardinal Health™ SVED® device should be operated at least 22 hours out of every 24 hour period. Contact your Healthcare Professional if therapy stops or if the device is OFF for more than 2 hours in a 24 hour period. -
Page 8: Introduction To The Cardinal Health™ Sved Device
2.2 Charging the Battery The Cardinal Health™ SVED® device has an internal battery that provides up to 18 hours of operation from a single full-charge. When the battery is running low, an alarm will sound to let you know you must plug in the device to charge the battery. - Page 9 Therapy Timer / Display Figure 2 Additional Battery Information NOTE: The Cardinal Health™ SVED® is designed to permit use of the product while the internal battery is charging. The device will continue to operate properly while charging is taking place. Average Battery Life The specified battery life of the Cardinal Health™...
-
Page 10: Changing The Canister
Once the battery is fully charged, the AMBER LED will extinguish indicating the charge cycle is complete. When the Cardinal Health™ SVED® device is disconnected from the AC power source, the device will automatically switch over to the internal battery and continue to operate without interruption. - Page 11 4. To remove the canister, press the silver canister release button located above the canister, grasp the canister at the bottom and pull downward (Figure 4). Canister Release Exudate Collection Canister Figure 4 5. Cap and dispose according to local, state and federal regulations. Ask your Healthcare Professional how to properly dispose of a used canister.
-
Page 12: Disconnecting The Device
Ask your Healthcare Professional about care of your dressing during bathing. NOTE: The Cardinal Health™ SVED® device should be operated at least 22 hours out of every 24 hour period. Contact your Healthcare Professional immediately if therapy is terminated or is off for more than 2 hours in a 24 hour period. -
Page 13: Operating Instructions
3. Carefully check dressing for vacuum or fluid leaks and repair with additional Polyurethane drape material as needed. 4. The Cardinal Health™ SVED® should be operated at least 22 hours out of every 24 hour period. Remove the Cardinal Health™ NPWT Dressing if therapy is terminated or is off for more than 2 hours in a 24 hour period. -
Page 14: Alarm Operation
NOTE: In the event of an emergency, please contact your treating physician, caregiver, or your local emergency responders. NOTE: If an Alarm Condition persists and cannot be resolved, please contact Cardinal Health for further assistance. -
Page 15: Care And Cleaning
Caregiver. WARNING: The Cardinal Health™ SVED® device should only be used with the supplied A.C. Adapter. Use of an incorrectly rated adapter could create a shock hazard for the patient or caregiver and/or severely damage the device. -
Page 16: Ac Power Adapter Inspection
A.C. Adapters are available from Cardinal Health. WARNING: The Cardinal Health™ SVED® device should only be used with the supplied A.C. Adapter. Use of an incorrectly rated adapter could create a shock hazard for the patient or caregiver and/or severely damage the device. -
Page 17: Specifications
Relative Humidity Range ......................20 - 75% Non-condensing Atmospheric Pressure Range........................50 kPa to 110 kPa Service life of Cardinal Health™ SVED® ........................3 years CAUTION: Federal law restricts this device to sale by or on the order of a physician. -
Page 18: Symbols
5.1 Explanation of Symbols Device Consult Instructions for Use Alternating Current Not protected IPXO Class II, Internally against the harmful Powered Equipment effects of water Type B, Applied Part Dressings Consult Instructions for Use Fragile Keep Dry Method of Sterilization -- Ethylene Oxide Single Use Only Expiry Date... -
Page 19: Electromagnetic Compatibility
Cardinal Health™ SVED® Device The Cardinal Health™ SVED® device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Cardinal Health™ SVED® device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Cardinal Health™... - Page 20 Field strengths from fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radio, AM and FM radio broadcast, and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Cardinal Health™...
-
Page 21: Replacement Parts
NOTE: Part numbers for Canisters, Dressings and Disposable Accessories may be obtained by visiting the Cardinal Health website (www.cardinalhealth.com). NOTE: In order to assure the highest safety, quality and efficacy of the products, the Cardinal Health™ SVED® device should only be used with Cardinal Health™ NPWT components, and Cardinal Health™ NPWT components should only be... -
Page 22: Questions & Information
CustomerServiceNPWT@cardinalhealth.com For questions or comments regarding the content of this User’s Manual, please contact Cardinal Health at the above address. Please contact Cardinal Health Customer Service at 1.866.484.6798 for issues concerning the product and its use. Always consult a physician and product instructions for use prior to application. - Page 24 1500 Waukegan Road Waukegan, IL 60085 USA 07/15 cardinalhealth.com © 2015 Cardinal Health. All Rights Reserved. CARDINAL HEALTH, the Cardinal Health LOGO, SVED, SENSISKIN and SPEEDCONNECT are trademarks or registered trademarks of Cardinal Health. US Pat. 7,532,953, 7,608,066, 8,066,243. EMERGO EUROPE...
