Lorenz PULSE 5 Manual

The LORENZ PULSE 5 is one of the newest
developements in the field of Pulse-Induction Metal
Detectors. It is probably the most sensitive and
stayable metal detecting device of it's kind presently
available. The LORENZ PULSE 5 is the result of many
years of research and developement. A lot of efforts
have been put into making this new product and
especially in the new metal classification facility
offered with the LORENZ PULSE 5.
The Pulse - Induction principle is specially suitable
for searching at depth. The performance of this
electronic device is unaffected by salt water, most
types of soil or temperature changes. The LORENZ
PULSE 5 is therefore a reliable tool to locate metal
objects at great depths even under the worst
environmental conditions.
The LORENZ PULSE 5 is a high quality specialist
Detector and it is designed to be used with both,
small or large coils. Large coils offer extreme depth
capabilities for big metal objects because of the
strong and deep going magnetic field produced.
Small coils are preferably used while searching for
small objects like single coins or Gold nuggets.
This model offers a great range on non-ferrous
metal objects in general. A very simple operation
is guaranteed by four controls of which only one
1. Safety information
For reasons of safety it is advisible to read this
operating manual first before turning the Lorenz
Pulse 5 on. Special attention should be paid to the
following notes.
Check out, if the plug-in type recharger supplied
with the Lorenz Pulse 5 fits with the AC mains of
your country. The AC plug of the recharger is inter-
changeable and therefore can be used at any
countries mains. See chapter 7 for more detailed
information. The supplied recharger will work at
AC voltages of 90 V-264 V (see lable).
Damaged connecting cables or searchcoils should
no longer be used, because of possible electrical
shock.
To avoid short circuits, wrong polarity or electrical
shock only spareparts and accessories offered by the
manufacturer of the LORENZ PULSE 5 should be
used.
When digging for metal objects war material could
O R E N Z
P U L S E 5
reset button will be necessary to operate during
work. At the same time this detector model offers
a number of features which are new for a Pulse-
Induction Metal Detector. Quality electronics and
very special designed electronic - circuitry produce
benefits in terms of easy of use as well as sensitivity.

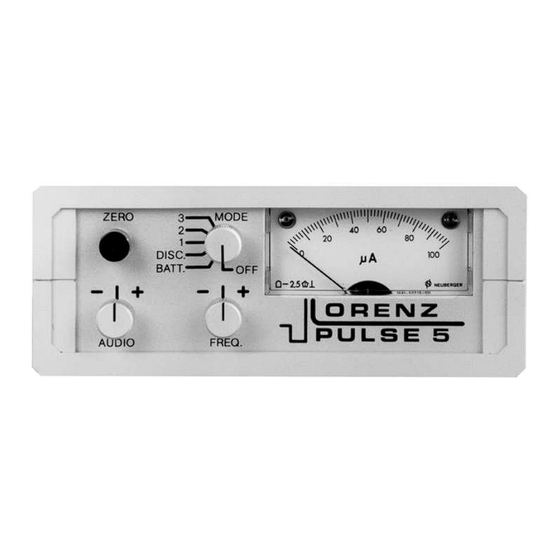

The LORENZ PULSE 5 gives a visual indication on
the meter for every metal being located. This
conductivity meter reading helps to classify metal
objects. The target classification circuitry is only
weakly affected by the size of a metal object and
therefore identifies small coins as well as large
pieces of metal. The Detector also emits an audible
sound by way of either a speaker or headphones.
Detection depths achieved (in air tests) are almost
the same in the ground and therefore considerably
higher than those possible with standard Pulse-
Induction or Sinewave VLF - TR Detectors.
The LORENZ PULSE 4 & 5 Metal Detectors are
recognised as representing the highest quality and
newest developements in professional metal
detecting equipment.
We as a manufacturing firm always try to keep the
highest standard on our products, therefore
alternations of the design, specifications as well as
the availability subject to change without notice.
also be found. Precautions should be taken in advance
especially when big objects have been located.
Special kinds of mines could be triggered by the
strong magnetic field produced by the searchcoil.
Please understand that we as the manufacturer of
the LORENZ PULSE 5 can't be made liable for any
kind of damage caused by or in conjunction with our
products.
Design and specifications subject to change without
notice!
