DENAGO City 1.0 Manual

MONITOR-
The following instructions will outline how to remove, replace
and adjust your settings on your Denago City 1.0 eBike
REMOVING STEP 1
UNPLUG the wiring harness to the monitor.
You can follow the cable about 12" where you
will find 3 connectors. Unplug the one with the
GREEN INTERNAL. (it is okay if you unplug the
wrong one just plug it back in) Remove this
cable from the clip holding the cables together.
REMOVAL STEP 2- Removing the HMI
This item has a direct cable to the monitor, and
you must remove this item to be able to
replace the monitor. YOU MIGHT HAVE to
loosen up the brake lever (4mm Allen bolt on
top and bottom of lever bracket) to get a clear
path to the bolts and clamp that hold the HMI
in place. Remove both (2) bolts on the HMI
bracket using your 3mm Allen key.
You are now ready to install your new monitor!
Please let us know if you have any comments and/or follow up questions!
CS@BIKE.com or 1-877-755-2453(BIKE)
Removal, Replacement and Settings

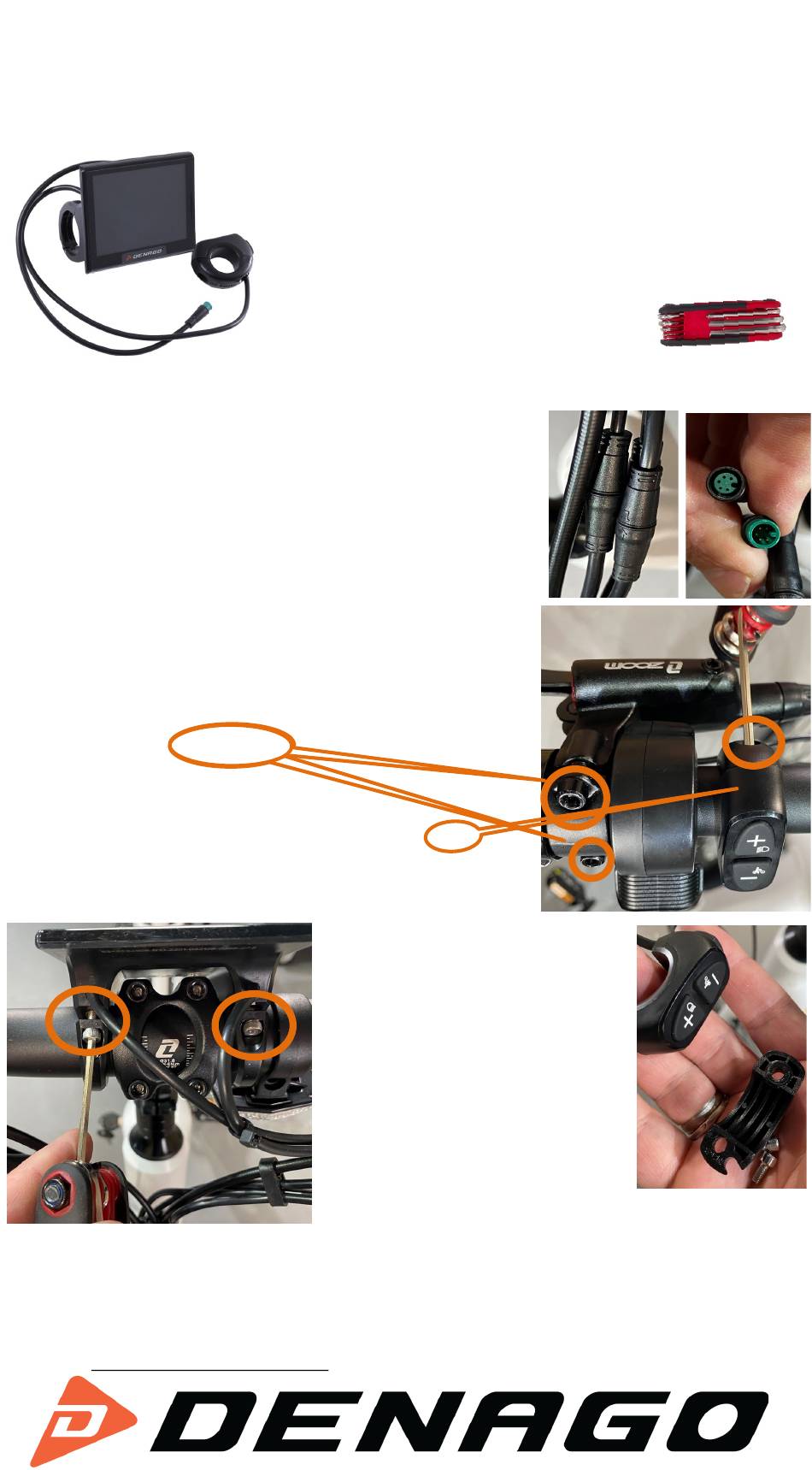

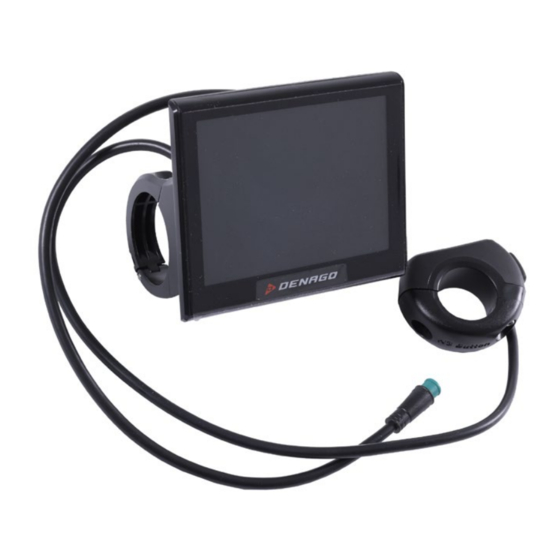

Your monitor comes with the HMI (Human
Machine Interface and all cables ready to be
installed. You will also need to check your
settings once you have installed the unit
Tools you will need-
YOUR DENAGO Multi Tool- 3mm Allen key
REMOVAL STEP 3-
Removing the MONITOR
The monitor is
connected with 2
brackets on the handle
bar. Remove both Allen
bolts using your 3mm
Allen Key. The brackets
have a hinge. Remove
monitor.
