Summary of Contents for Osaka PRO 08D

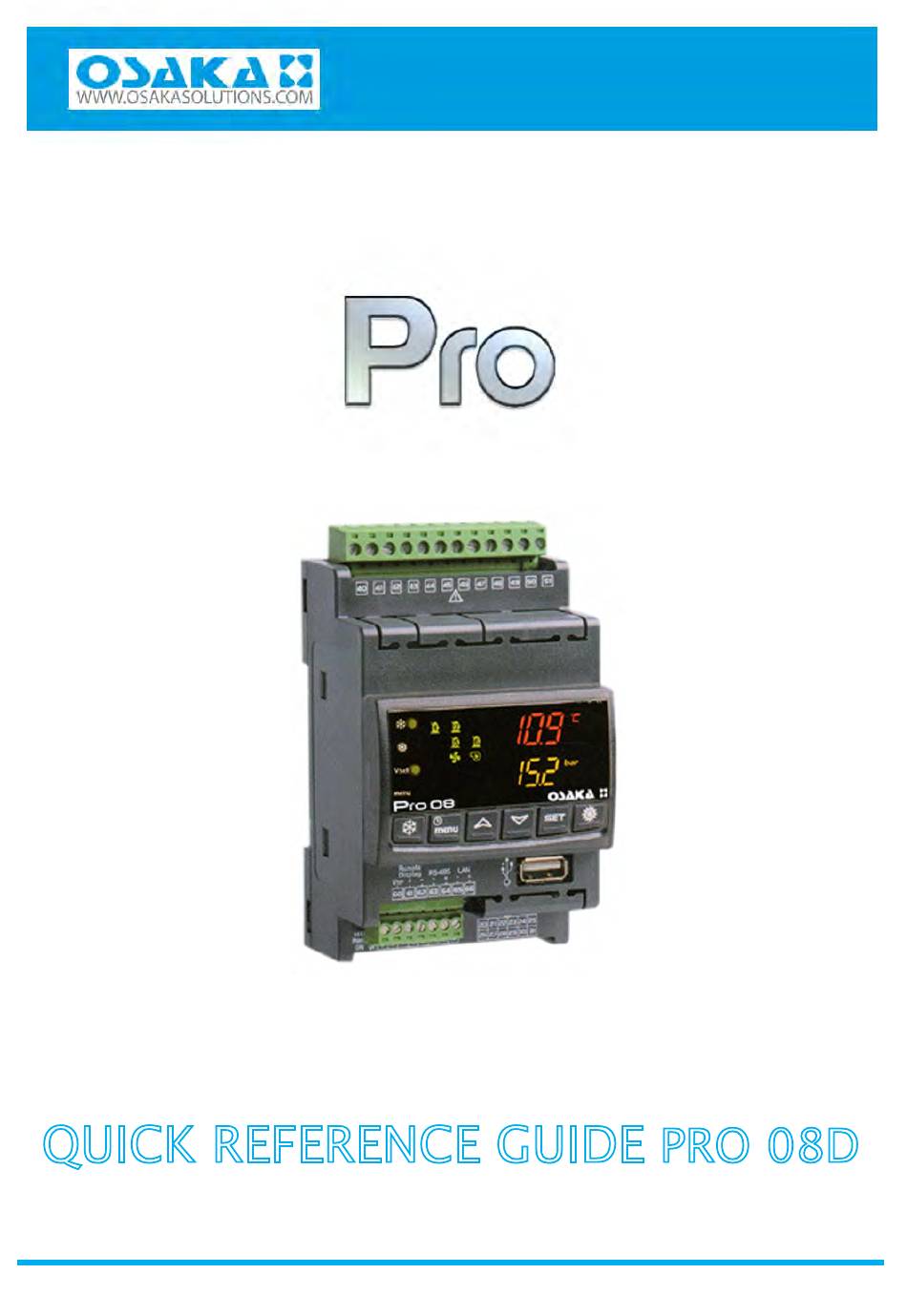

- Page 1 Q Q U U I I C C K K R R E E F F E E R R E E N N C C E E G G U U I I D D E E P P R R O O 0 0 8 8 D D...
- Page 2 In case of applications in industrial environments, the use of mains filters (our mod. FT1) in parallel with inductive loads could be useful. OSAKA reserves the right to modify or change its products without prior warning. Page 2 / 13...
- Page 3 Quick reference guide PRO 08D 2. Inputs and outputs – Basic configurations CARATTERISTICHE - FEATURES PRO 08D Alimentazione - Power supply 24 Vac/dc TF20 (24) Ingressi sonde - Probe inputs 0÷1V - 0÷5V - 0÷10V - 0÷20mA 6 config 4÷20mA - NTC - PTC - DI...
-
Page 4: Power Supply
Quick reference guide PRO 08D 2.1 Power Supply Separate the power supply of the PRO from the power supply to the other electrical devices inside the electrical box. Do not connect the secondary of the transformer with ground 2.2 Analog inputs (Probes PTC-NTC, Digital inputs) If used as digital inputs, contacts DON’T have to be with voltage but free of voltage. - Page 5 Quick reference guide PRO 08D 2.3 Analog inputs (4÷20mA pressure transducers, 0÷20mA probes) 2.4 Analog inputs (0÷1V pressure transducers, 0÷5V - 0÷10V ratiometric) 2.5 Analog inputs (0÷1V - 0÷10V probes) Page 5 / 13...
- Page 6 Quick reference guide PRO 08D 2.6 Analog out puts (0÷10V - 4÷20mA signal for condensing contro l or for actuators/ servo-motors drive) 2.7 Analog outputs (0÷10V configured to drive remote relays) Page / 13...
-
Page 7: Digital Inputs
Quick reference guide PRO 08D 2.8 Digital inputs 24V Voltage contacts. 2.9 Digital outputs (relays) 2.10 Connection of PRO-V-GRAPH keyboard Respect the polarity of connections to avoid the damaging of the PRO-V-GRAPH. Page / 13... -
Page 8: How To Start
PRO 08D to read/write variables. The PC c an communicate with the PRO 08D only if the settings in t he devices are aligned; this means that the PC and the PRO 08D have to work in the same network. - Page 9 Quick reference guide PRO 08D o Choose “Properties” and double click on “Internet Protocol (TCP/IP)” o In this window set the following parameters (as showed in the picture): IP address: 192.168.0.200 (or the address relative to your network) Subnet Mask: 255.255.255.0 o Click “OK”...
- Page 10 Quick reference guide PRO 08D If you want to change the device setting, please follow this procedure. Launch the browser in your computer and write the following web site address: http://192.168.0.250 (if your IP is different, write the correct one): Insert the password of the application or the default one, and click OK.
- Page 11 3.2 Intranet / Ethernet connection (Local Area Network) The Intranet or Internet connection should be managed by the system administrator that will assigns one free IP address to reach the PRO 08D. This number is an IP address similar to the Osaka one: 192.168.0.250.
-
Page 12: Port Address
Quick reference guide PRO 08D If the connection is correct, in this window you will see the following information: 3.3 Port address Port address allows remote computers to connect to a specific computer through a private LAN. The ports that have to be opened are: •...
