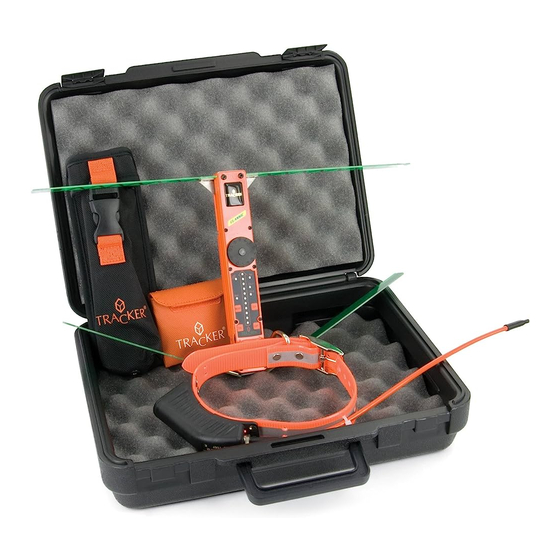

- Page 1 Classic Receiver...
- Page 2 Notes...
- Page 3 2. Be careful to keep the receiver dry and minimize exposure to rain, snow or other liquids. 3. Changes or modifications to this receiver, not approved by Tracker Radio Systems, Inc. could void your authority to operate this receiver under FCC regulations. FCC ID: MWBFTV-466 This device complies with part 15 of the FCC rules.
-
Page 4: Table Of Contents
Table of Contents: Features Receiver Upgrades Integrated Antenna Operating the Receiver Controls Turning ON and OFF Changing Channels Setting the Gain NEAR Mode Frequency Fine Adjustment Plug-ins Automatic Shut-off Changing the Batteries Maintenance Using your System Getting Started Effective Range Advanced Topics and Special Situations Obstacles Signal Bounce... -
Page 5: Features
Features: • Fixed crystal receiver capable of monitoring a maximum of two frequencies • Available in Frequencies ranging from 216 MHz through 220 Mhz • Manual gain control mode • Row of 11 LEDs indicate strength of signal • Near button (attenuator) to assist in locating transmitters at short distances •... -
Page 6: Receiver Upgrades
Receiver upgrades: The Classic is sold as a one or two dog unit. If your receiver was purchased to monitor a single frequency, you can return the receiver to Tracker Radio and have a second crystal installed to monitor a second collar. Charges are assessed for upgrading and shipping. - Page 7 Grasp the receiver in one hand with your thumb close to the gain wheel. For best results, be careful not to touch the antenna as you track. In particular, do not allow the rear antennas to rest on your wrist or forearm, as this can affect the bearing accuracy. Correct way to hold Receiver...
-
Page 8: Controls
Controls: front Signal wheel (not volume) Low Battery Light for Receiver Channel Indicators Channel 1 = red Not In Use Channel 2 = green Channel Button Near Light Near Button Signal Strength Lights ON Switch OFF Switch Collar Fine Tuner Speaker Silencer Plug back... -
Page 9: Turning On And Off
Frequency Fine Adjustment: All transmitters exhibit a certain amount of frequency drift based on temperature and atmospheric conditions. Tracker has incor- porated an adjustment wheel on the left side of the receiver to fine-tune the frequency in order to assure maximum distance tracking and adjusting the pitch of the beep to make it more audible. -
Page 10: Plug-Ins
rotate the wheel to maximize the received signal (as indicated by the LEDs or speaker). The adjustment wheel will modify the frequency reception for each channel. If tracking two dogs, try to set the wheel so a strong signal is heard on both dogs. Headphone Plug/Sound cut-off: Headphone Jack Sound on... -
Page 11: Automatic Shut-Off
Automatic Shut-off: The Tracker receiver features an automatic shut-off circuit that will guard against running down the batteries if the receiver is inad- vertently left on. Most receivers are set to shut down after 15 minutes if the ON button is not re-pushed. -
Page 12: Maintenance
Maintenance: The CLASSIC receiver is designed to provide years of trouble-free operation. You can prolong the life of your system by following these simple suggestions: 1. Store the unit in a dry place at room temperature when not in use. -
Page 13: Using Your System
A Transmitter broadcasts a distinctive pulse in a specific frequen- cy in all directions. The Classic receives the signal and provides an indication of the signal strength. The signal strength of the transmitter detected by the receiver will depend on many factors such as distance to the transmitter, presence of obstacles, signal bounce and antenna polarization. - Page 14 the signal received, either by attenuating (reducing the strength of the signal) or creating a reflection that will indicate a “false position” where the signal will “bounce off” an object. Understanding how the signal is influenced by these factors will vastly improve your ability to locate your dog.
- Page 15 It is important to remember the characteristics of a line-of-sight situation as it will aid in “reading” the signal in the field. HINT! Pay particular attention to the gain control setting. It is much easier to track a transmitter when the gain is set at the low- est setting that yields an audible signal.
- Page 16 (open fields, forested area, etc.). By this point, you should have mastered the few controls that are required on the Tracker receiver. This is important as your attention should be focused on analyzing the signal rather than operating the receiv- er.
-
Page 17: Effective Range
changed the strength of the signal will change significantly. If this occurs, review the initial angle to create a possible candi- date bearing to the transmitter or eliminate this bearing (bounce signal). • Implement a “process of elimination” strategy. If the signal is difficult to “read”... -
Page 18: Advanced Topics And Special Situations
in gain from 1 to 2 is very small as compared to the change in gain from 5 to 6, i.e. gain at 1 to 2 is for 50 to 100 ft. while gain at 5 to 6 is for ⁄... -
Page 19: Overhead Utilities
on the transmitter parallel to the ground. Then turn on the receiver and test the signal strength with the antennas parallel and perpendicular to the antenna on the transmitter. Knowing the optimal orientation of the receiver can aid in radio-location. Overhead Utilities Power lines are excellent re-radiators of radio waves and can complicate radio-location. -
Page 20: Transmitters
Receiver to be in a depression than the transmitter. TRANSMITTERS: For many applications, Tracker markets transmitters with the Classic receivers, as a package. See the Quick Start Guide for your transmitter type or download off of www.trackerradio.com TROUBLESHOOTING: Receiver will not turn on 1. - Page 21 Distorted Audio or loss of Signal 1. If audio is distorted all the time, send unit in for repair. 2. Check frequency fine adjustment for both channels Antenna/s loose or too tight 1. DO NOT try to tighten or adjust the front antennas, this can damage the circuit board and will void your warranty.
- Page 22 Reduced reception 1. If low Battery Indicator is on, change batteries in receiver. 2. Replace battery/s in collar (transmitter). 3. If available, compare reception with another Receiver with same transmitter. If range is considerably less, send unit in for service. Gain control abrupt change 1.
-
Page 23: Specifications
Max 70 mA Sensitivity >-130 dB /.078ºV Operating temperature -14 to 131° F (-10 to + 55° C) Available Frequencies 216.000-220.000 MHz Tracker Inc. reserves all the rights for any specification change. The equipment complies the essential requirements of EU directive 1999/5/EY. - Page 24 Tracker Radio Location Systems 800 South Industry Way Suite 160 Meridian, Idaho 83642 (208) 514-4719 (800) 900-2113 www.trackerradio.com...
