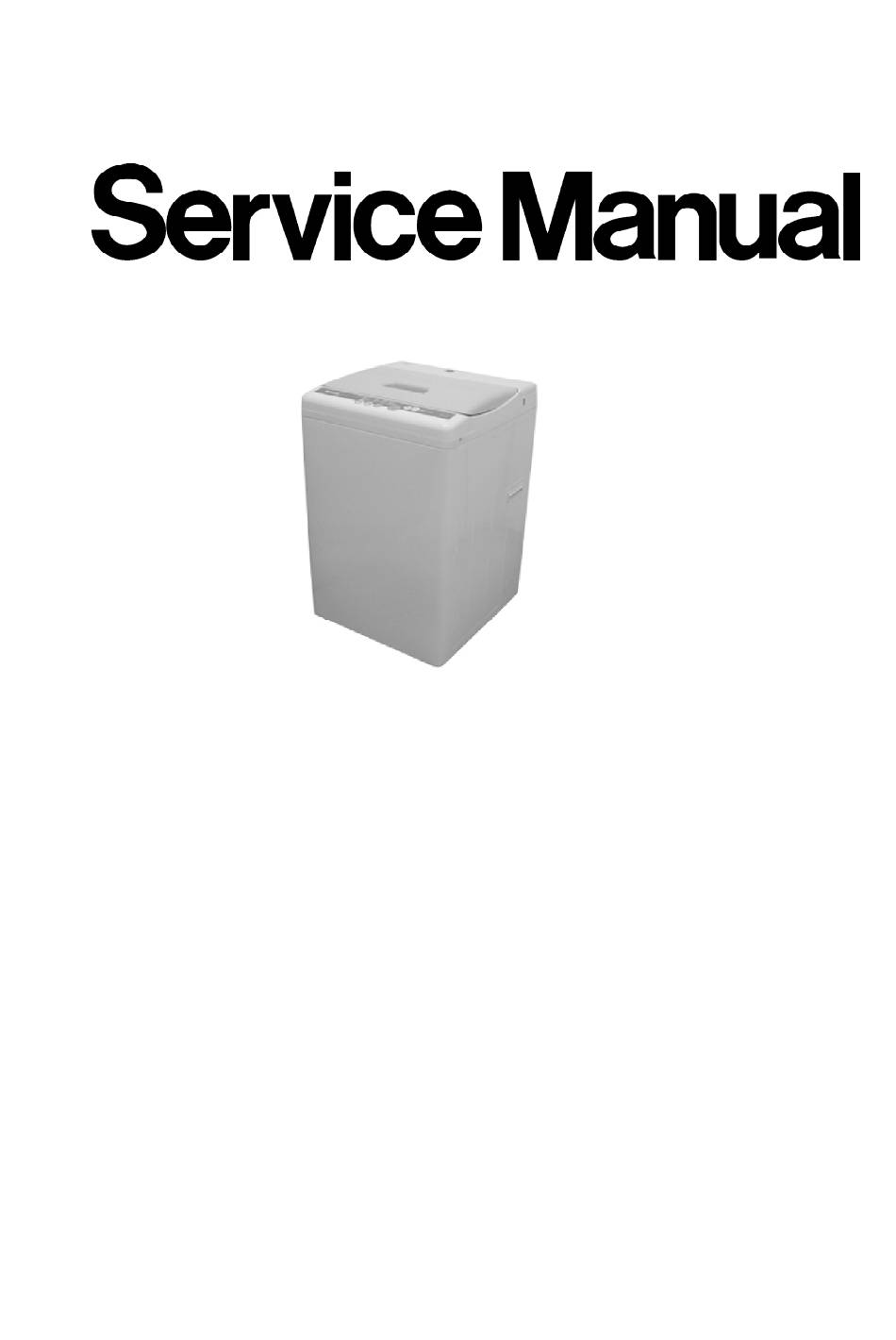

Panasonic NA-F42J2T Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Washer
  5. NA-F42J2T
  6. Service manual
Panasonic NA-F42J2T Service Manual

Panasonic NA-F42J2T Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SPECIFICATIONS
NA-F42J2T / NA-F60H / NA-F5000T
MODEL
Power Source
Dimension
Water Level Selector
(Standardized Water
Amount)
Standardized Water
Consumption (Normal)
Operating Water
Pressure
Pulsator r.p.m
Spin r.p.m
Machine Weight
ORDER NO.MEL0010045C3
Specifications
NA-F42J2T
NA-F60H
AC 220V ~ 240V
50 Hz
Width
Depth
582 mm
620 mm
Water Load
Height
53 litres
Medium
41 litres
Low
34 litres
Extra Low
18 litres
140 litres
0.3 ~ 10 kgf / cm2
(8 ~ 25 Iitres / min)
120 r.p.m
820 r.p.m
29 Kg
1
Washing Machine
NA-F5000T
Height
870 mm
Cloth Load
49 litres
37 litres
32 litres
17 litres

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA-F42J2T and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic NA-F42J2T

Summary of Contents for Panasonic NA-F42J2T

  • Page 1 ORDER NO.MEL0010045C3 Washing Machine NA-F42J2T / NA-F60H / NA-F5000T SPECIFICATIONS Specifications MODEL NA-F42J2T NA-F60H NA-F5000T Power Source AC 220V ~ 240V 50 Hz Dimension Width Depth Height 582 mm 620 mm 870 mm Water Level Selector Water Load Cloth Load...

  • Page 2: Feature And Technical Explanation

    MODEL NA-F42J2T NA-F60H NA-F5000T Power Consumption Input 320w, Output 160w (Motor) Safety Switch Lid and Unbalance Switch Buzzer Cycle End Buzzer, Give an Alarm Thermal Protector Motor Rinse Case Softener Dispenser Bleach Inlet Lint Filter Auto Power Off Pressure Hose...

  • Page 3: Weight Sensor

    1.2. Weight Sensor Sense by inertia movement on pulsator which create changes at the capacitor terminals which give a wave signal. This wave is change to number of frequency and load weight is judge by this number of pulse. For normal course, strong course before weight, process start without water, the pulsator will turn for 4.2 sec.

  • Page 5: Wash Cycle

    1.4. Wash Cycle COURSE SOAK WATER WASH RINSE SPIN LEVEL TIME CYCLE TIME Maximum NORMAL HIGH 15 min. Maximum Maximum 30 sec. Rinse 8 min. 60 min. MEDIUM cycle 2 times STRONG Minimum Minimum Maximum 12 min. 6 min. 30 sec. MEDIUM Rinse Approx.

  • Page 6: Installation Instruction

    — MEDIUM 30 sec. cycle 38 sec. 2 times CARE 2. INSTALLATION INSTRUCTION 2.1. Check Installation Location 2.2. Connect supply water hose...
  • Page 7 (Note) - Firmly tighten part B of the faucet joint, otherwise water leakage will result. - When the hose must be reinstalled (after you move, for example), turn B to the left until about 4 mm or the thread becomes visible, then carry out the procedure described above.

  • Page 8: Troubleshooting Guide

    FOR THE CASE OF UNEVEN FLOOR 3. TROUBLESHOOTING GUIDE When diagnosing a problem, because the electronic circuitry is so complex, sometimes a condition is mistakenly thought to be a malfunction when it is not perform check and troubleshooting beginning with parts to which load is applied, similarly to troubleshooting for conventional mechanical circuitry.

  • Page 9: Test Running Without Water

    4. TEST RUNNING WITHOUT WATER 4.1. Method to test running without water. 1. Set the power switch to “OFF”. 2. Press and hold both the “Reserve and water level” buttons with one hand. 3. Set the power switch to “ON”. 4.

  • Page 10: Error Indication Table

    released). 5. Within three seconds, press the “Reserve” button one or two times to set the desired check procedure. (Carry out check B and Number of times the “Reserve” Check Check Lamp illumination condition Operation condition Contents button is Procedures pressed End Signal When the end buzzer sounds...
  • Page 11 Check if abnormalities listed below are seen in the external water hose. Is the hose connected? Is it clogged with lint? Is it crushed? Is the tip soaked in water? Is a small pipe used? Is a part of hose at a height of over 10cm midway? Is the hose lay down? Check if the lid is open Close the lid.
  • Page 12 6. SHEMATIC DIAGRAM 7. DISASSEMBLY INSTRUCTIONS AND ADJUSTMENT WARNING BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE MACHINE, DISCONNECT THE ELECTRICAL POWER SUPPLY FROM THE WALL OUTLET. Caution to be observed when trouble shooting Electronic components of the print circuit board is MOS TYPE FET. When replace and trouble shooting of the print circuit board, make sure body is grounded before beginning repair work.
  • Page 13 difference between the set and body of the worker completely. 7.1. Print circuit board replacement 1. Open the lid. And remove 1 panel packing. 2. Remove 1 screw mounting the panel face A. 3. * Slide to right-ward to remove the panel face A. * Push from lower side to remove the panel face A.
  • Page 14 Hold the wire connectors properly, increase to remove connectors from the P.C. Board. 7. Remove connectors from the P.C. Board. 7.2. Pressure sensor, safety switch and feed valve replacement. 1. Remove 2 screws mounting the panel A. * Do not lost the feed port gasket when removing the panel A. 2.
  • Page 15 Pressure sensor replacement. A. Remove 2 pawls mounting the pressure sensor. B. Remove lead wire connector. C. Remove the air hose. Safety switch replacement. A. Remove 2 screws mounting the safety switch. B. Remove lead wire connector. Feed valve replacement. A.
  • Page 16 Rise up the body B against the wall. Remove 4 screws mounting the outer tub cover. Remove a screw mounting the pulsator. * Do not remove screw mounting the pulsator completely and pull up-ward to remove. Remove the spinner shaft flange nut by using nut remover HW- 25K.
  • Page 17 Pull up the tub up-ward to remove. Place the machine on its front side. Remove 4 screws mounting the spinner plate B. Remove 4 screws mounting the mechanism case. 7.4. Motor replacement 1. Place the machine on it’s front side. 2.
  • Page 18 8. EXPLODED VIEWS AND REPLACEMENT PARTS LIST 8.1. Small Standardized Parts...
  • Page 19 Ref. Part Name Model/Part No. Remarks NA-F42J2T NA-F60H NA-F5000T Pan Head Screw XSN5+10BNS XSN5+10BNS XSN5+10BNS Pan Head Screw XSN5+14BNS S’pore Domestic Special Washer X-W0651 X-W0651 X-W0651 Special Screw XSSAXW673 XSSAXW673 XSSAXW673 Special Tapping Screw XTWAXW507A XTWAXW507A XTWAXW507A Special Tapping Screw...
  • Page 20 8.3. Replacement Part List-A...
  • Page 21 Ref. Part Name Model/Part No. Remarks NA-F42J2T NA-F60H NA-F5000T Kabus Grey Panel A AXW01306EW0U AXW01306EW0U AXW01306EW0U White Panel A AXW01306EW0D AXW01306EW0D AXW01306EW0D Kabus Grey Panel A Packing AXW01376FK0U AXW01376FK0U AXW01376FK0U White Panel A Packing AXW01376FK0D AXW01376FK0D AXW01376FK0D Kabus Grey Lid Unit...
  • Page 22 8.5. Replacement Part List-B...
  • Page 23 Ref. Part Name Model/Part No. Remarks NA-F42J2T NA-F60H NA-F5000T Body A Unit AXW001A6EW0U AXW001A6EW0U Kabus Grey Body A Unit AXW001A6EW0D AXW001A6EW0D White Body A Unit AXW001A6EW0U S’pore Re-export (KY) Body A Unit AXW001A6EWOD S’pore Re-export (W) Body A Unit AXW001A6EW5U S’pore DoM (KY) Body A Unit AXW001A6EW5D S’pore DoM (W)
  • Page 24 8.7. Replacement Part List-C...

  • Page 25: Packing Instructions

    Ref. Part Name Model/Part No. Remarks NA-F42J2T NA-F60H NA-F5000T Outer Tub Cover AXW332456N01E AXW332456N01E AXW332456N01E Pulsator AXW05015WP0E AXW05015WP0E AXW05015WP0E Shaft Bushing AXW050459V0E AXW050459V0E AXW050459V0E Spinner Shaft Flange Nut AXW15178052E AXW15178052E AXW15178052E Spinner Flange Washer B AXW15198020E AXW15198020E AXW15198020E Balancer Unit...

  • Page 26: Replacement Part List

    8.9. Replacement Part List Packing Parts List Ref. Part Name. Model/Part No. Remarks NA-F42J2T NA-F60H NA-F5000T Protection Case A AXW90016GM00 Protection Case A AXW90016GJ00 Protection Case A AXW90016GK00 S’pore Re-export Protection Case A AxW90016GH00 S’pore Domestic Protection Case A AXW90016GG00...
  • Page 27 Pad Packing AXW90076EW00 AXW90076EW00 AXW90076EW00 Washboard Bag AXW90576BA00 AXW90576BA00 AXW90576BA00 Washboard Unit AXW002W6BA0E AXW002W6BA0E AXW002W6BA0E Staple AXW904102400 AXW904102400 AXW904102400...
