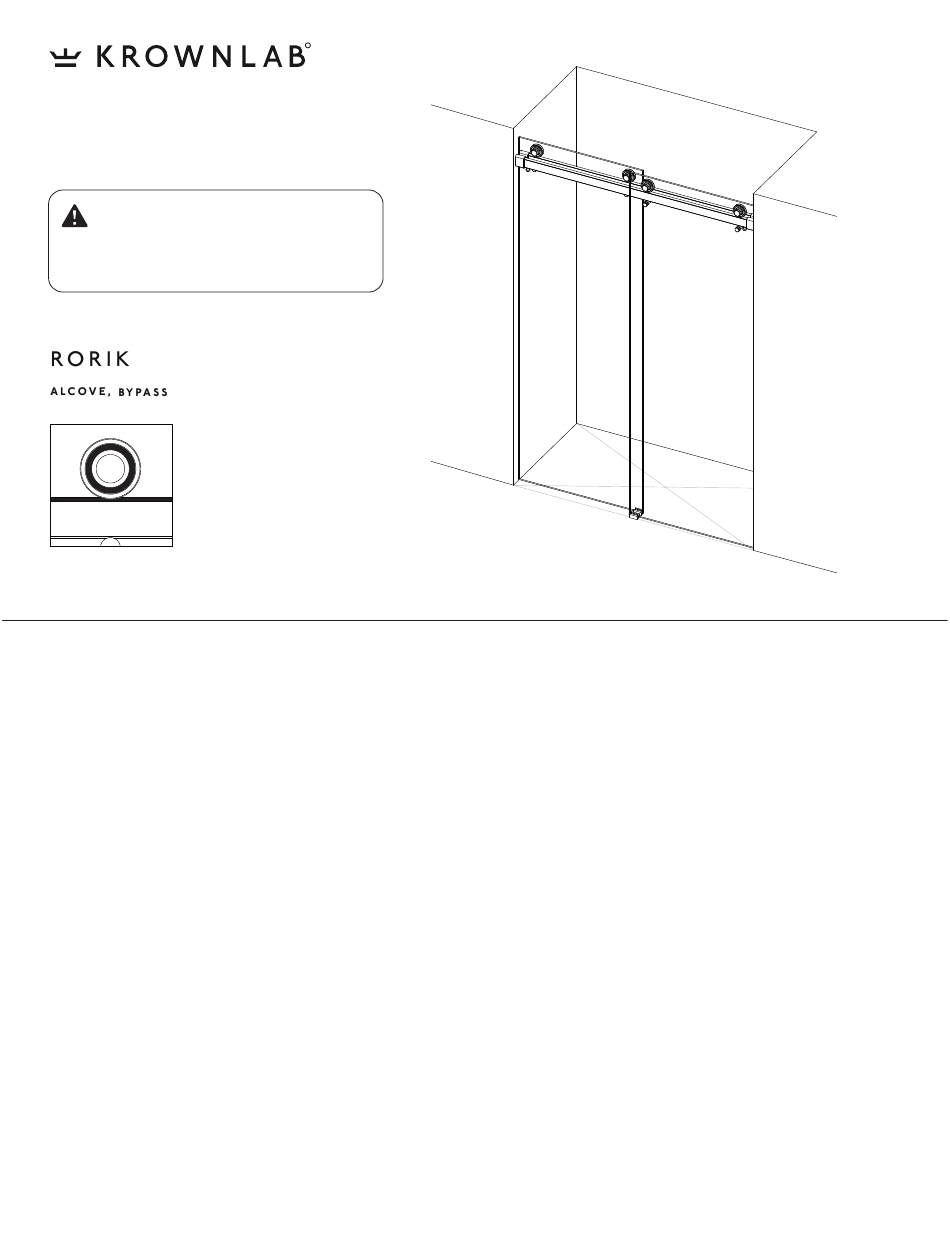

I N S TA L L AT I O N I N S T R U C T I O N S
To deviate, or to not comprehensively
and precisely follow all Krown Lab, Inc
provided specifications and installation
instructions can result in unsafe or
hazardous site conditions that can cause
bodily harm or death.
Product may be covered by pending and awarded U.S. patents. For more information visit www.krownlab.com
1.
T O O L S + M AT E R I A L S
T O O L S
• 1/4" socket
• Torque wrench capable of measuring 110 in-lbs (9.5 ft-lbs)
• Miter saw and carbide toothed blade
• #3 Philips driver and extension
• 3/8" tile or masonry drill bit
• Imperial allen wrench kit
M AT E R I A L S
• Clear glazing silicone
• Blue painters tape
• Pencil or other non permanent marking tool
• Bottom glazing channel (optional)
• Glass panels fabricated for your project
R

Advertisement

loading
Need help?

Need help?

Do you have a question about the RORIK and is the answer not in the manual?

Questions and answers

Related Manuals for Krownlab RORIK

Summary of Contents for Krownlab RORIK

  • Page 1 Product may be covered by pending and awarded U.S. patents. For more information visit www.krownlab.com T O O L S + M AT E R I A L S T O O L S •...
  • Page 2 V E R I F Y C O M P O N E N T S B A S E K I T Track assembly Bearing kit Panel stop kit End cap kit Door stop kit Glass bottom guide kit Track socket kit S Y S T E M O P T I O N S A N D A D D I T I O N S Seal kit...

  • Page 3: G L A S S I N S P E C T I O N

    Inspect all outside edges on the glass panels to ensure they are flat polished and have 1mm chamfers. Reference Rorik glass specs for additional information: www.krownlab.com/downloads D E T E R M I N E T R A C K C E N T E R L I N E H E I G H T...
  • Page 4 M A R K T R A C K C E N T E R L I N E Mark the track centerline height determined in the previous step. Transfer this mark to both sides of the opening using a level.
  • Page 5 M A R K M O U N T I N G H O L E L O C AT I O N S On each side of the opening, mark points 1/2” above and below the track centerline on the lateral position lines made in the previous step.
  • Page 6 M E A S U R E A N D C U T T R A C K S Measure your opening width at the track centerline. Determine your track length: TRACK LENGTH = OPENING WIDTH – 3” Before cutting the track, - Ensure springs are clear of cut zones and end caps and loose nuts are removed.
  • Page 7 T E M P O R A R I LY I N S TA L L R E A R T R A C K Install the track into the rear sockets one end at a time. Center track so that each end is partially inserted in the track sockets.
  • Page 8 T I G H T E N T R A C K S O C K E T S Take down the track and remove the track sockets from the wall. Be sure to note which numbered socket goes on which side! Set screws are likely to be in unique positions from socket to socket.
  • Page 9 M O V E D O O R S T O P S Locate the door stops and slide each to the ends of the track. Leave loose for now. AT TA C H B E A R I N G A S S E M B L I E S Attach the bearing assemblies on the door as shown.
  • Page 10 O P T I O N A L I N S TA L L L O W E R D O O R S E A L Install the adhesive backed door bottom seal on your door panel as shown. I N S TA L L B O T T O M G U I D E Mark the center of the shower opening below the track.
  • Page 11 I N S TA L L D O O R PA N E L Carefully guide the bottom of the door panel into the bottom guide and hang the door on the track. Note that door panel travel is not constrained. Slide the panel to the closed position.
  • Page 12 O P T I O N A L I N S TA L L D O O R S E A L S Install fin seal: -Cut seal to length: SEAL LENGTH = door height – 8” -Trim bottom as shown. Do not force seal onto glass.
  • Page 13 I N S TA L L D O O R P U L L S Attach door pulls. S E T D O O R T R A V E L Reposition the door stops to set the desired travel of the door panel.

  • Page 14: Care And Maintenance

    Enjoy your exceptional new Krownlab Sliding Door System. Visual product representations herein may differ from the actual products. Components and details are subject to improvement changes. © 2019 Krownlab. All Rights Reserved. Krownlab and the Krownlab logo is registered Trademark of Krown Lab, Inc.
