Summary of Contents for Krownlab Baldur Glass Mount Bypassing Doors

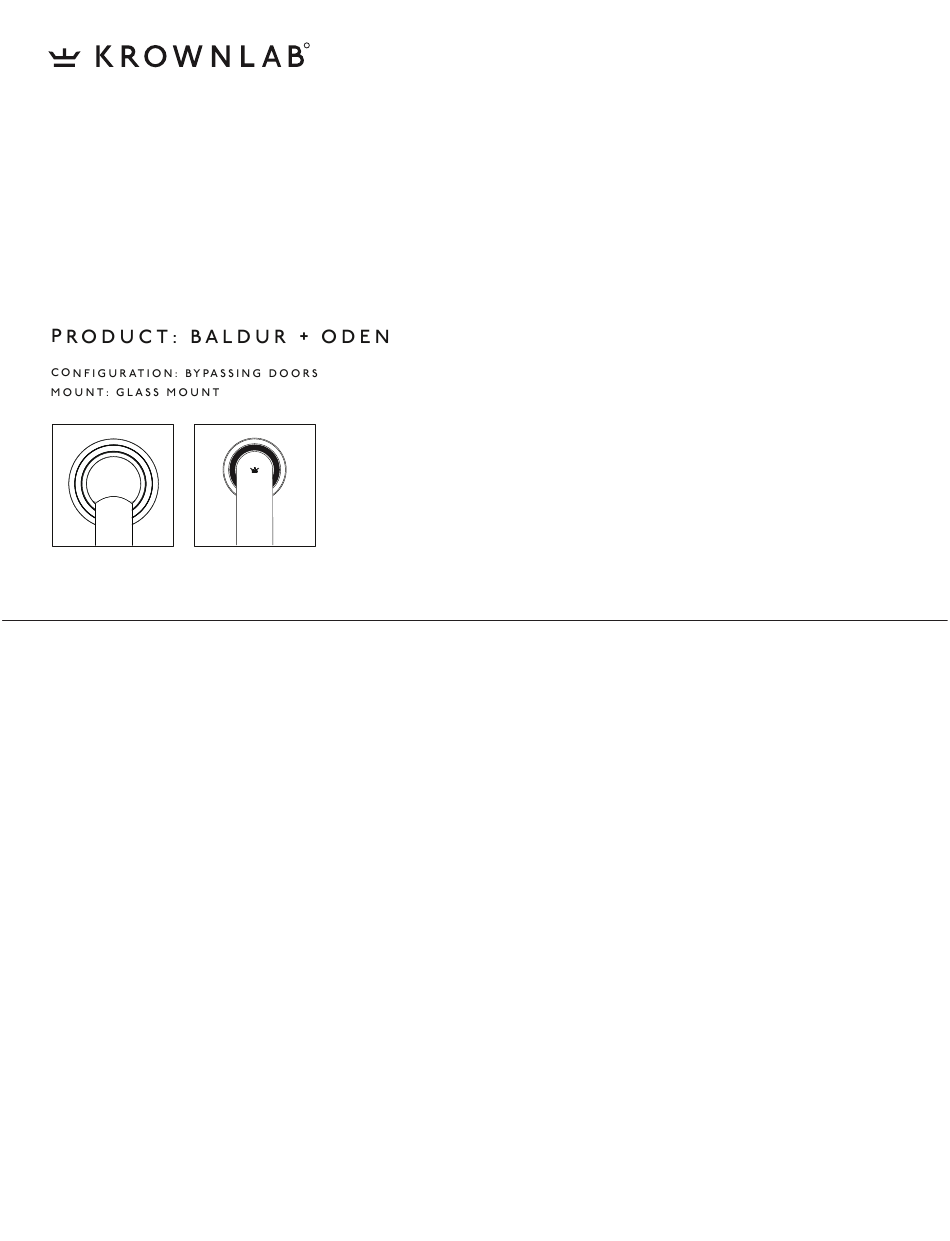

- Page 1 I N S TA L L AT I O N I N S T R U C T I O N S Product is covered by U.S. patents. For more information visit www.krownlab.com...
- Page 2 I N S P E C T I N G G L A S S • Confirm dimensional accuracy • Ensure holes are seamed and free of chips • Ensure holes are properly sized • Reference “Glass panel specifications” for additional information: www.krownlab.com/downloads...
- Page 3 V E R I F Y A L L C O M P O N E N T S B A S E K I T Safety stop assembly Rear track assembly Track stand-offs Trolley kit** Track fastener kit - wood - Glass door guide kit* Front track assembly Door stop kit...
- Page 4 On the wall, mark the middle of the opening. This will be where the track is centered. Determine and mark the locations of all mounting points along the track centerline. Krownlab hardware requires a structural wall to Door panel in function properly and safely. Each mounting point desired closed...
- Page 5 L I N K M U LT I P L E T R A C K S Track Connectors are included with multiple-track systems to keep the tracks in alignment. Skip to the next step for single-track installations. Butt tracks end to end as they will be installed on your wall.
- Page 6 3/16” Panel Required 1/4” Optional 3/4” Optional distance track stand-off track stand-off panel spacer 7/8” √ √ Panel distance 1” √ 1-5/8” √ √ √ Desired clearance 1-3/4” √ √ * If additional wall clearance is required, please contact support@krownlab.com...
- Page 7 AT TA C H D O O R S T O P S T O R E A R T R A C K If installing Premium Door Stops, reference those installation instructions in parallel. Temporarily slide one door stop to each end of the rear track.
- Page 8 I N S TA L L E N D C A P S T O R E A R T R A C K End cap assembly may vary at each end of the track. Select the scenario below that best matches the track configuration: •...
- Page 9 NOTE: Bowing in the track will negatively affect the performance of the entire system, causing increased friction and excessive wear on some components. Krownlab’s warranty does not cover wear caused by improper installation. Do not use shims with the purpose to extend the track standoff distance.
- Page 10 V E R I F Y D O O R PA N E L S P EC I F I C AT I O N S Ensure the glass door panel has the correct hole placement, hole sizing, and is prepared per Krownlab's glass panel specifications.
- Page 11 AT TA C H T R O L L E Y S T O D O O R PA N E L Attach the trolleys using the correct length fastener: - 3/4” screws for 3/8” thick panel - 1” screws for 1/2” thick panel Gently tighten, then back out each screw a half turn.
- Page 12 A D J U S T PA N E L H E I G H T Check for any interference due to an uneven floor by sliding the panel back and forth. If necessary, adjust the height of the panel by loosening the set screws at the bottom of each trolley with a 1/8”...
- Page 13 AT TA C H D O O R S T O P S T O F R O N T T R A C K If installing Premium Door Stops, reference those installation instructions in parallel. Temporarily slide one door stop to each end of the front track.
- Page 14 M O U N T F RO N T T R A C K T O R E A R T R A C K Slide springs to the ends of track, but keep 1” away from holes to prevent clamping a spring under track washer plate.
- Page 15 S EC U R E F RO N T T R A C K T O R E A R T R A C K Confirm the track has been leveled, shimmed, and all mounting points have been securely fastened. Inspect each track spring to ensure they are not interfering with the mounting hardware and evenly spaced along the length of the track.
- Page 16 A D J U S T PA N E L H E I G H T Check for any interference due to an uneven floor by sliding the panel back and forth. If necessary, adjust the height of the panel by loosening the set screws at the bottom of each trolley with a 1/8”...
- Page 17 I N S TA L L D O O R P U L L S If applicable, install door pulls following applicable installation instructions. S E T D O O R T R AV E L If installing Premium Door Stops, reference those installation instructions in parallel. Starting with one of the door in the desired closed position, slide the door stop so that it touches the safety stop of the nearby trolley.
- Page 18 • Do not use steel wool, or a Scotch Brite pad, as it can scratch the product. Visual product representations herein may differ from the actual products. Components and details are subject to improvement changes. © 2019 Krownlab. All Rights Reserved. Krownlab and the Krownlab logo is registered Trademark of Krown Lab, Inc.
