TCi 376600 Instructions Manual

Universal TCC Lock-Up Kit for 700R4 and 2004R
This kit enables hands-free, automatic activation of the Torque Converter Clutch (TCC) along with the
option of manual control.
®

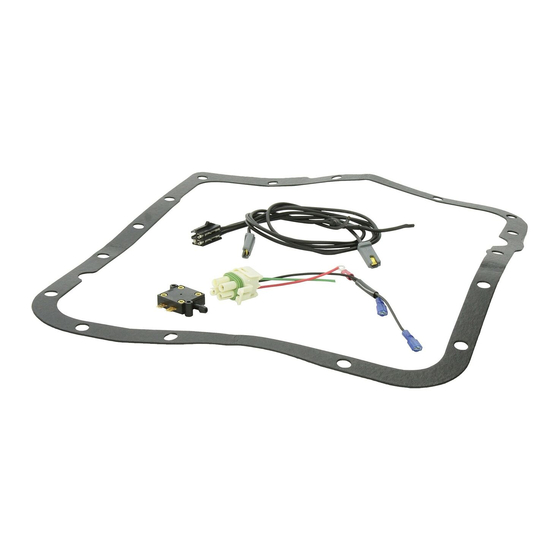

TCI 376600 Kit Contains:
Qty. Description
One (1) Internal Wiring Harness
One (1) External Wiring Harness
One (1) Vacuum Switch
One (1) Fourth Gear Pressure Switch - 2 terminal, N.O.
Two (2) Splice Connectors
One (1) #4 Machine Screw
Step 1 — Drain transmission oil pan. You will need a pan to catch fluid. Remove transmission oil pan
bolts. When removing bolts, remove so pan will not drop completely off. Instead it will be held in
place so that one side will allow the fluid to be drained. After the fluid has drained, remove the rest of
the bolts and pour out the remaining fluid. If your transmission did not come with a drain plug, you
may want to install a TCI
off. Remember To Dispose Of Used Oil In An Environmentally Safe Way.
Step 2 — Remove original internal wiring
harness. Carefully
connectors from the switches. Remove the wires
from the clips and unplug the wiring harness
from the connector near the detent roller spring.
Pry connector tab away from the plug and pull
the plug down. Do not pull on the wires.
Step 3 — Based on your application, find the
wiring diagram to determine the proper fourth
gear pressure switch location. See Figures 1, 2
and 3. Install the switch and torque to 8 foot-
pounds. Additional OEM switches may be left
in place even though they will not be utilized.
Toll Free: 1.888.776.9824
www.tciauto.com
®
TCI
®
805800 universal drain plug kit into your pan now that you have the pan
disconnect the wire
376600

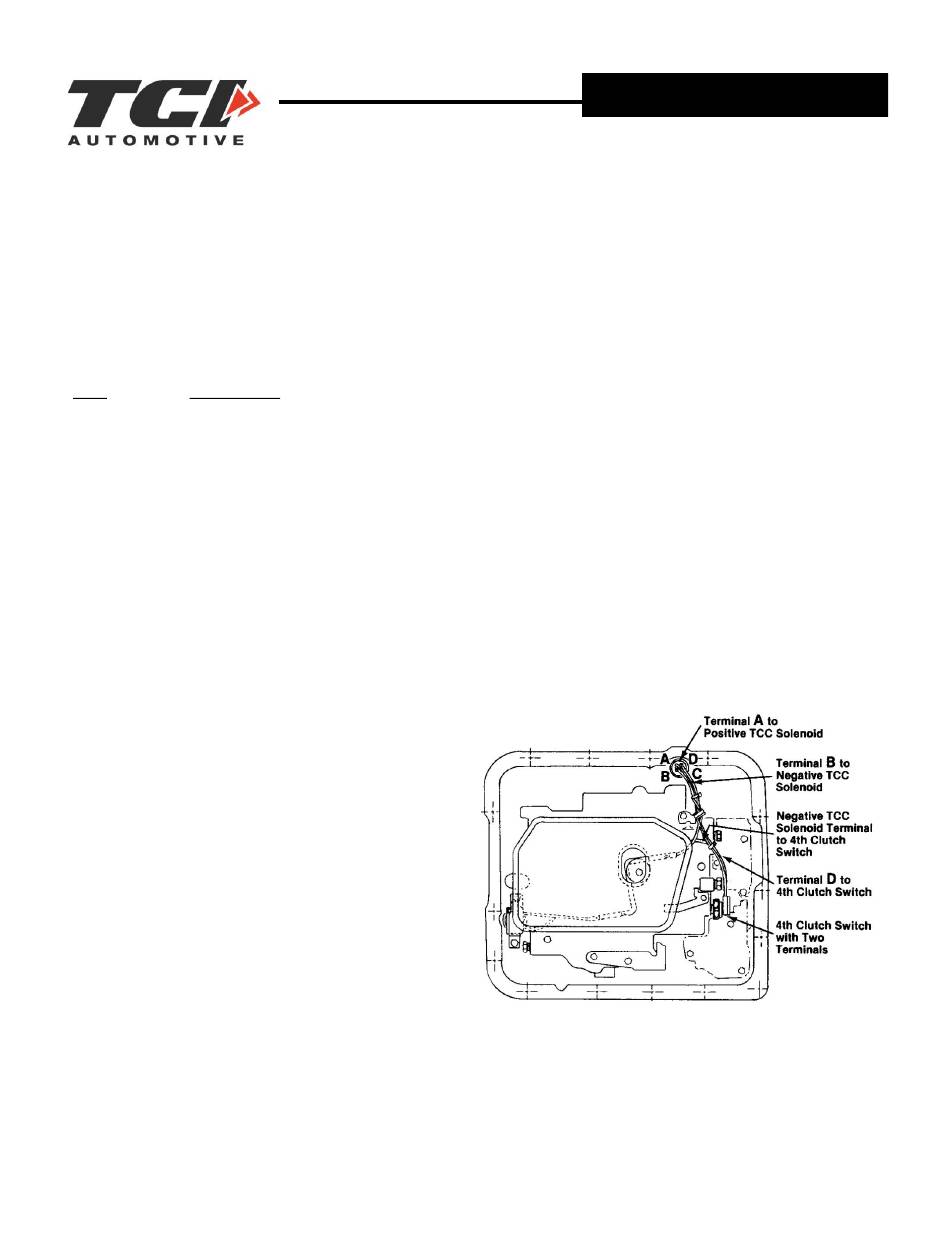

Figure 1: 700R4 Street/Strip Wiring Diagram
®
TCI Automotive
151 Industrial Dr.
Ashland, MS 38603
Phone: 662.224.8972
INSTRUCTIONS
Part # TCI-9006
Revised 9/6/2016
1
