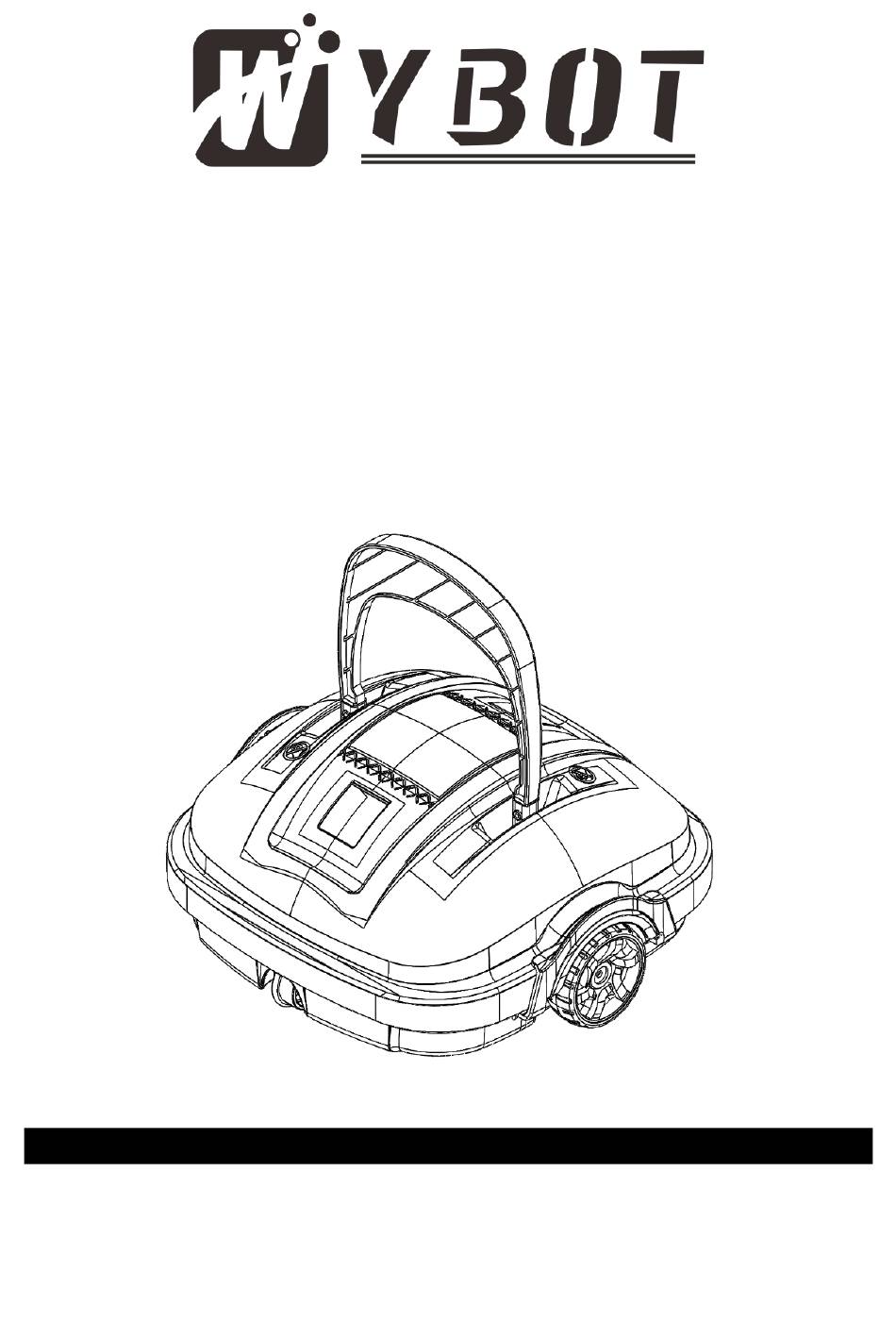

- Page 1 USER MANUAL ROBOTIC POOL FLOOR CLEANER WY1102 READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Thank you for purchasing WYBOT Robotic Pool Cleaner. If you have any question or issue, please contact us for customer service.
-
Page 2: Table Of Contents
CONTENTS LIMITED WARRANTY ....................1 IMPORTANT SAFETY INSTRUCTIONS ................2 1. Introduction ......................3 2. Packing List ......................3 3. Product Diagram ....................3 4. Specifications ......................4 5. Operation Instructions ................... 5 5.1 Assembly before use ..................5 5.2 To use the robotic cleaner ................6 5.3 Clean after use .................... -
Page 3: Limited Warranty
WYBOT, owned by TIANJIN WANGYUAN ENVIRONMENTAL PROTECTION & TECHNOLOGY CO., LTD, makes products at the best quality we can offer. All WYBOT products have been inspected against defects in materials and workmanship prior to leaving factory. WYBOT is happy to offer warranty for the repair or replacement of pool products for one (1) year, only covering battery, motor and PCB from the date of purchase. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS 1. Read the manual carefully, and use the cleaner according to the manual. We are not liable for any loss or injury caused by improper use. 2. Only use the accessories recommended or sold by the manufacturer. 3. -
Page 5: Introduction
1. Introduction The environmentally-friendly robotic pool cleaner WY1102 is a new type of rechargeable automatic cleaner that filters the pool water and gets rid of particles without replacing the pool water. 2. Packing List Item Name QTY (pc) Remark Cleaner... -
Page 6: Specifications
4. Specifications Product Name WYBOT Robotic Pool Cleaner Model WY1102 Rated Working Voltage 11.1V Power approx. 30W Working Cycle max. 60min Rated Input Voltage of Adapter 100Vac-240Vac Rated Input Frequency of Adapter 47Hz-63Hz Rated Output Voltage of Adapter 12.6Vdc Rated Output Current of Adapter... -
Page 7: Operation Instructions
5. Operation Instructions 5.1 Assembly before use 1. Attach the flipper and fix it with the screws provided. 2. Install the scrapers to enhance s Note: The installation direction of 2 screws is opposite. 2. Install the scrapers to enhance suction effect if the pool floor is full of debris or particles. It is not recommended to install the scrapers if the pool bottom is uneven or full of pits, which avoids the cleaner from getting stuck by the rough floor. -
Page 8: To Use The Robotic Cleaner
3. Attach the retrieving hook to a standard pool pole (not included). 5.2 To use the robotic cleaner 1. Charge the battery Fully charge the cleaner before each use. Attach the charging connector to the charging socket at the bottom of the cleaner. Place the cleaner in its upright position and, then plug the charger into the main electrical outlet. - Page 9 2. Purge out the air Hold the robotic cleaner with two hands and submerge it into the pool. Rotate the cleaner until no air bubble is coming out. 3. Turn on the power While keeping the entire robotic cleaner underwater, switch on the product by pressing the power button located at the bottom.
-
Page 10: Clean After Use
5. Let it clean The robotic cleaner shall run around the pool floor and vacuum the debris automatically for max. 60 minutes. It will automatically reverse when it touches the wall. The cleaner will move to the pool wall automatically and stop running when it runs out of battery. 6. -
Page 11: To Adjust The Running Pattern
5.4 To adjust the running pattern 1. This robotic cleaner comes with 2 adjustable wheels. By modifying the combination of these 2 adjustable wheels, it will change the running pattern of the cleaner. Adjustable Wheels 2. To adjust the wheel, open the lock buckles and remove the top cover. Locate the 2 adjustable wheels. -
Page 12: Buzzer Note
6. Buzzer Note Status Description Beep before not fully immersed in the water; Stop beeping after fully Power on immersed in the water Power off Stop beeping 7. Trouble Shootings Issue Scenario Possible reason Solution -------- Battery level is low. Recharge the battery. - Page 13 The cleaner does not The flipper does Hose off the dirt change direction not flip forward The flipper is stuck and around the hinge of the when hitting the pool when approaching does not turn freely. flipper. Make sure the wall.
