Eurolux F23S Manual

ILLUSTRATIONS:
TECHNICAL INFORMATION:
SPEC POLE PHASE VOLTAGE
(mm) (V)
400 4 1 220-240
450 4 1 220-240
1 220-240
500 4
3 380-415
1 220-240
600 4
3 380-415
4 1 220-240
650
4 3 380-415
4 1 220-240
750
4 3 380-415
INSTALLATION DIMENSIONS
SPEC 450mm 500mm 600mm 650mm 750mm
A 500 570 670 720
B～C 910～1150 1188～1588
D 450 510 610 610

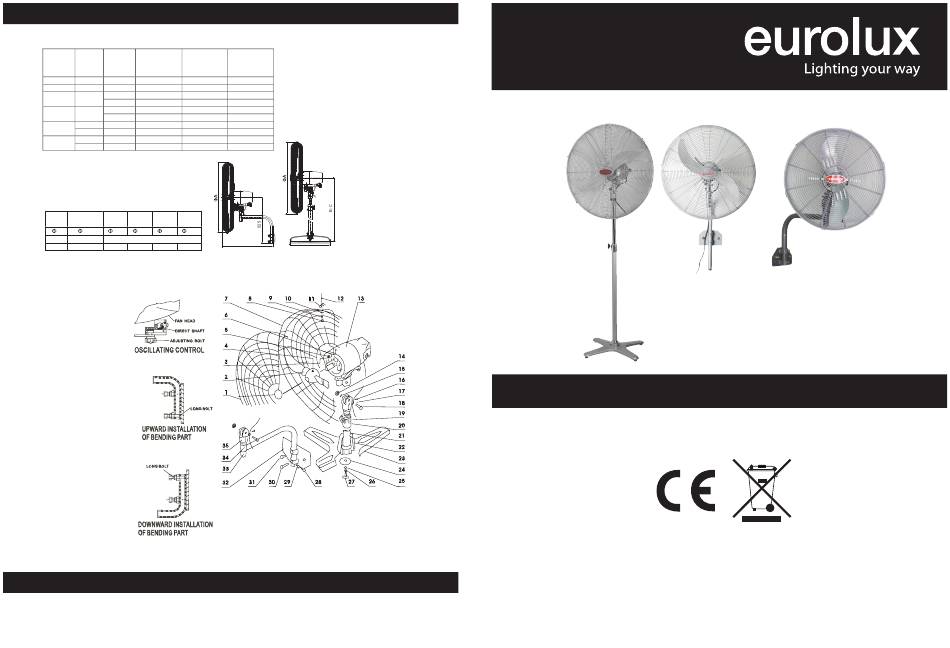

ASSEMBLING DIAGRAM
1. FRONT GUARD
2. BLADE
3. SCREW
4. BOLT
5. SPRING WASHER
6. GASKET
7. BACK GUARD
8. NUT
9. SPRING WASHER
10. GUARD CLIP
11. GUAED CLIP
12. SCREW
13. MOTOR
14. NUT
15. GASKET
16. SCREW
17. WIRING CLIP
18. BOLT
19. FIXING COVER
20. FIXING SCREW
21. SUPPORT
22. DECORATING COVER
23. PEDESTAL
24. GASKET
25. GASKET
26. SPRING WASHER
27. BOLT
28. BOLT
29. NUT
30. BOLT
31. BOLT
32. WALL PLATE
33. SUPPORT ARM
34. FIXING SCREW
35. LOWER CONNECTION
ENVIRONMENTAL PROTECTION
Waste electrical & Electronic equipment regulations requires that any of our products showing this
marking must not be disposed of with other household or commercial waste. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please separate any
such products from other waste types and recycle it responsibly at your local facilities.
RATED INPUT
FREQUENCY POWER
(Hz) (W)
50 110
50 120
50 130
50 130
50 150
50 150
50 230
50 230
50 280
50 280
820
590
710
D

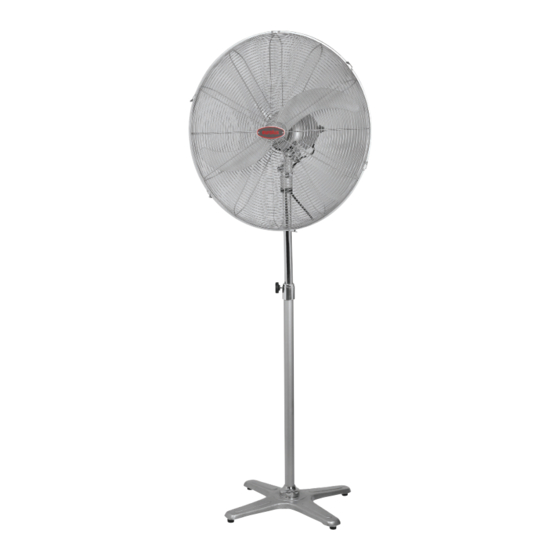

STAND FAN
WALL FAN
ASSEMBLING ORDER
ASSEMBLING ORDER
35→33→34→32→30→31→ 21→23→24→25→26→27→22
29→28→13→18→15→14→ →19→20→13→18→15→14→7
7→6→5→4→2→3→1→10 →6→5→4→2→3→1→10→11
→11→12→9→8→17→16 →12→9→8→17→16
Hurricane Industrial Fan
PRODUCT CODE
F23S / F28S / F34
Cape Town - 9 Racecourse Road, Milnerton, 7441
Johannesburg - 10 Milkyway Avenue, Linbro Business Park, Sandton, 2065
email: admin@eurolux.co.za
Please read instructions before commencing installation and retain for
future reference.
web: www.eurolux.co.za
