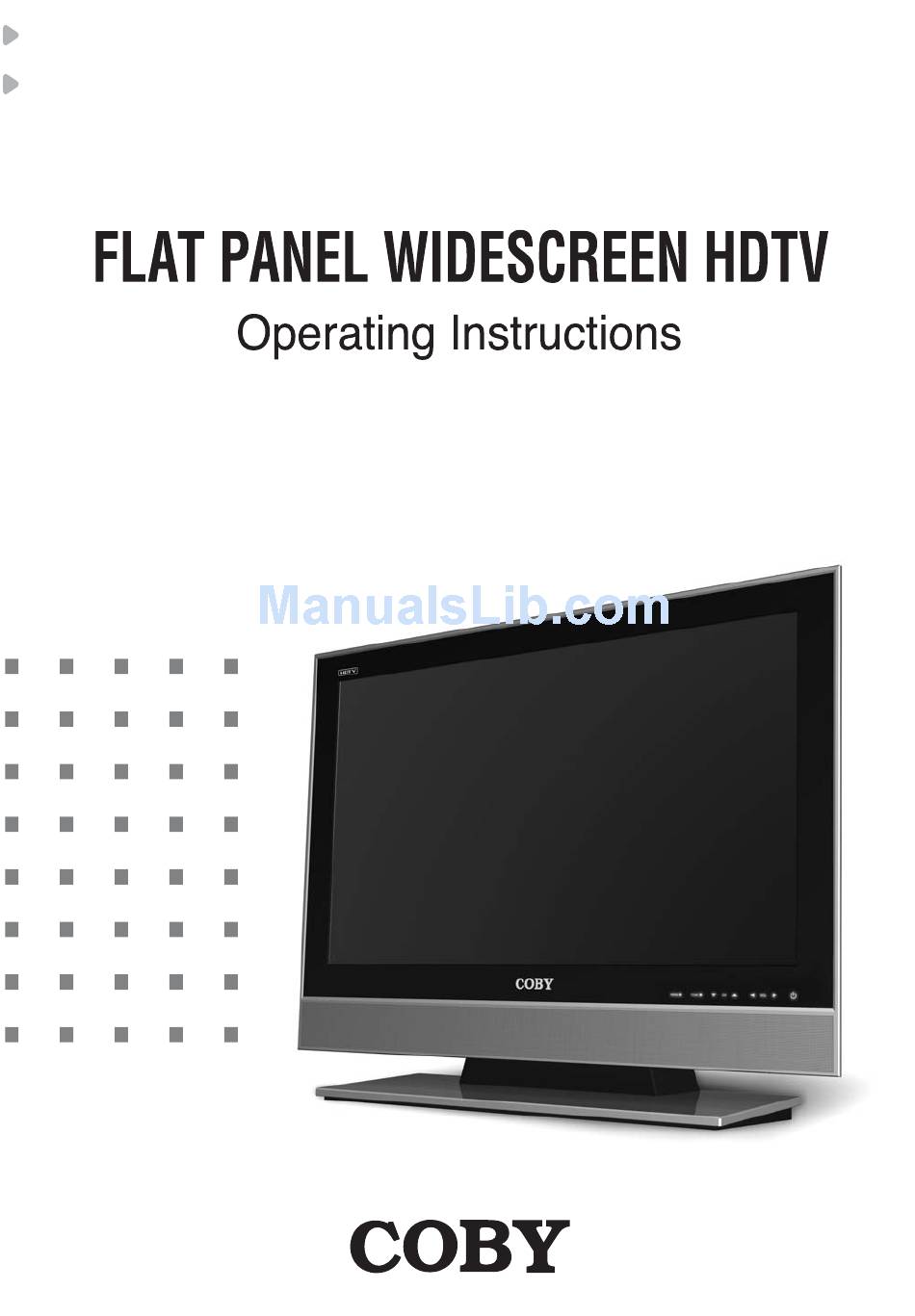

- Page 1 TF - TV3709 TF - TV4209...
-
Page 2: Warning High-Voltage
A Wide Array of Screen Settings You can choose different screen settings depending on the type of program you are watching or the surrounding conditions (the lighting or the outside weather conditions). You can switch between the Sport, Movie, Music and Normal options, or you can configure the screen settings yourself. -
Page 3: Fcc Compliance Statements
FCC Compliance Statements Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 4: Important Safety Instruction
Important Safety Instruction Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Precaution
Precaution External Television Antenna Grounding If an outside antenna or cable system is connected to the television equipment, be sure the antenna or cable system is electrically grounded to protect against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information about proper electrical grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. - Page 6 Precaution The unit should not be placed in an enclosed installation such Do not use the unit in direct sunlight and keep it away from as a bookcase or limited-space rack unless proper ventilation heaters, stoves, and other sources of heat. is provided.
- Page 7 Precaution Do not use or store inflammable substances near the unit. Place the unit away from the wall for well ventilation. Place the antenna away from the electric wire, not to touch Do not touch the plug with wet hands. even though it falls down by wind.
-
Page 8: Table Of Contents
Troubleshooting Guide ....40 ..26 Specifications (TF-TV3709) Specifications (TF-TV4209) ....28 . -
Page 9: Unpacking Your Tv
Unpacking your TV Please make sure the following items are included with your TV set. If any items are missing, contact your dealer. Accessories Remote Control & Batteries (AAA x 2) Inserting Batteries in the Remote Control You must insert or replace the batteries in the remote control when you purchase the TV or when you find that the remote control is no longer operating correctly. -
Page 10: Viewing The Control Panels (Front View)
Viewing the Control Panels Front View Bottom Side MENU selection Input TV/AV selection Channel selection Volume adjustment Remote control sensor Power Power Indicator Status Indicator Status Stand-by Green Power on... -
Page 11: Viewing The Control Panels (Rear View)
Viewing the Control Panels Rear View Connection Cables ( Optional : not included ) HDMI Connector DVI/PC Sound Cable HDMI/DVI Connector Component Signal Cable Digital Sound Connector Sound Cable S-Video Connector AV Cable PC Cable Coaxial Cable Bottom Side AC Power Input Terminal Service Port DVI Sound Input Terminal HDMI/DVI Input Terminal... -
Page 12: Remote Control
Remote Control - Make sure there are no objects between the remote control and its sensor. - Do not place the remote control near a heater or in damp place. INPUT - Displays a menu of all available input sources. - Also used to confirm your choice in the on-screen menu. -
Page 13: Viewing Air Channels
Connecting an Antenna There are internal and external types of antennas. Rear of the TV Connecting an Antenna Use a coaxial cable to connect the rear panel of the TV's [AIR] or [CABLE] terminals and the wall mount or external antenna. When an Air signal is required, connect to the [AIR] terminal. -
Page 14: Connecting A Vcr
Connecting a VCR External devices may have different terminals for the same functions. Rear of the TV Useful Tips ☛ If there is a terminal called [S-Video Output], connect the TV [S-Video Input] terminal to the VCR [S-video output] terminal. Connect the sound cable to the [Video2 / S-Video Input left / right] (white / red). -
Page 15: Connecting An Hdmi Connection
Connecting an HDMI Connection Rear of the TV Connecting via HDMI Connect the [HDMI/DVI input] terminal at the back of the TV and the [HDMI] terminal of the external device. Connect the TV and the external device after all other connections are done. Watching HDMI Turn on the TV and press [INPUT], then select <HDMI>. -
Page 16: Connecting A Pc
Connecting a PC Rear of the TV Useful Tips ☛ Audio output is only available for PCs with a sound output terminal TV/ External Input Settings You can change the signal of the TV or of the external device connected to your TV. Main Source PC Sound Cable PC Cable... -
Page 17: Automatic Channel Settings
Automatic Channel Settings Any receivable channels can be memorized automatically. Press [MENU]. -The menu will appear. Press [ ] and move to <Channel>, then press [OK]. -The <Channel> menu will appear. Press [ ] and move to <Auto Memorizing>, then Press [OK]. -The <Auto Memorizing>... -
Page 18: Antenna Settings
Antenna Settings Adding or Removing Channels After memorizing the channels, you may add more channels not added due to a weak signal, or you may remove unwanted channels. Press [MENU]. -The menu will appear. Press [ ] and move to <Channel>, then press [OK]. -The <Channel>... -
Page 19: Adding Favorite Channels
Adding favorite channels This function is to help users to select their favorite channels as quickly as possible. Press [FAV]. Go to Menu-Favorite channels and press the [FAV] button to check your favorite channels in the list. Adding a channel to the favorite channel list Press [MENU]. -
Page 20: Current Program Information
Current Program Information You can check the current time and channel information. (This is only available for digital broadcasts) Press [GUIDE]. Press [GUIDE] to view the program guide for the current channel. The default for the basic broadcasting guide should be set to <Current Guide>. (The Program Guide may change without notice by the broadcast station.) Press [GUIDE]. -
Page 21: Checking The Strength Of The Digital Signal
Checking the strength of the digital signal This shows the current digital signal strength of a channel. Before Starting ☛ Keep the digital TV receiving mode as is. Press [MENU]. -The menu will appear. Press [ ] to move to <Channel>, then press [OK]. -The <Channel>... -
Page 22: Screen Mode Settings
Screen Mode Settings Press [P.MODE] to recall a pre-set screen type Screen Custom Mode Settings Useful Tips ☛ A A d d j j u u s s t t e e d d v v a a l l u u e e s s w w i i l l l l b b e e s s a a v v e e d d a a s s a a < < M M a a n n u u a a l l > > m m o o d d e e v v a a l l u u e e . -
Page 23: Screen Color Settings
Screen Color Settings Press [MENU]. -The menu will appear. Press [ ] to move to <Picture>, then press [OK]. -The <Picture> Menu will appear. Press [ ] to move to <Color Temperature>, then press [OK]. -The <Color Temperature> Menu will appear. Press [ ] to move to a menu. -
Page 24: Film Mode Settings
Film Mode Settings Set your selection to <ON> to watch your movie titles at the best quality. You will be able to watch with a more realistic movie screen. Adjusting the Screen Size You can select the size of the screen depending on the type of program. Press [ASPECT] Each press switches between <16: 9>, <Panorma>,<Zoom1>,... -
Page 25: Pip (Picture-In-Picture) Settings
PIP (Picture-in-Picture) Settings Two channels can be viewed from one screen. Press [PIP]. You will only hear sound from the main screen. Press [MENU]. -The menu will appear. Press [ ] to move to <Setup>, then press [OK]. -The <Setup> Menu will appear. Press [ ] to move to <PIP>, then press [OK]. -
Page 26: Switching The Main And Sub-Screen
Switching the Main and Sub-Screen You can switch the main and Sub-Screen with each other. Adjusting the Sub-Screen Size You can adjust the size of the Sub-Screen. Useful Tips ☛ Adjusting the Sub-Screen size can only be done in PIP mode. Adjusting the Sub-Screen Position You can adjust the position of the Sub-Screen (all 4 corners). -
Page 27: Adjusting The Sub-Screen Channel
Adjusting the Sub-Screen Channel You can adjust the channel in the Sub-Screen. Press [MENU]. -The menu will appear. Press [ ] to move to <Setup>, then press [OK]. -The <Setup> Menu will appear. Press [ ] to move to <PIP>, then press [OK]. -The <PIP>... -
Page 28: Sound Mode Settings
Sound Mode Settings You can adjust the mode to Music, Movie, Sports, or News depending on the type of program you are watching. Custom Sound Mode Settings You can create your own audio equalizer settings as desired. Useful Tips ☛ You can use the equalizer to adjust <Standard>, <Music>, <Movie>, <Sports>, <News>... -
Page 29: Srs Trusurround Xt Mode Settings
SRS TruSurround XT Mode Settings SRS TruSurround XT allows you to experience marvelous 'live' multi-channel surround sound using only two speakers. Press [SRS]. Each press toggles between <Off>, <3D Mono> and <Stereo>. Press [MENU]. -The menu will appear. Press [ ] to move to <Sound>, then press [OK]. -
Page 30: Automatic Volume Control Settings
Automatic Volume Control Settings You can automatically adjust the sound level of different channels to the proper volume level to make each channel audibly distinct. Sound (Digital Broadcasting) Settings Sound (Analog Broadcasting) Settings While Mono is on air All modes will have mono sound. ■... -
Page 31: Automatic Time Settings
Automatic Time Settings The auto time setting will receive time information from the digital broadcast station. Press [MENU]. -The menu will appear. Press [ ] to move to <Setup>, then press [OK]. -The <Setup> Menu will appear. Press [ ] to move to <Time>, then press [OK]. -The <Time>... -
Page 32: Time And Date Settings
Time and Date Settings Users can select Daylight Saving. Time Zone Settings Users can select the time zones. Press [MENU]. -The menu will appear. Press [ ] to move to <Setup>, then press [OK]. -The <Setup> Menu will appear. Press [ ] to move to <Time>, then press [OK]. -
Page 33: Tv Activation Time Settings
TV Activation Time Settings You can set a time for the TV to automatically turn-on. Press [MENU]. -The menu will appear. Press [ ] to move to <Setup>, then press [OK]. -The <Setup> Menu will appear. Press [ ] to move to <Time>, then press [OK]. -The <Time>... -
Page 34: Entering A Pin
Entering a PIN This option sets up or changes the password for blocking specific channels. Press [MENU]. -The menu will appear. Press [ ] to move to <Setup>, then press [OK]. -The <Setup> Menu will appear. Press [ ] to move to <V-Chip>, then press [OK]. -The <Password Dialog Box>... -
Page 35: Tvpg Rating
TVPG Rating You can block programs based on the TV program rating. Press [MENU]. -The menu will appear. Press [ ] to move to <Setup>, then press [OK]. -The <Setup> Menu will appear. Press [ ] to move to <V-Chip>, then press [OK]. -The <Password Dialog Box>... -
Page 36: Mpaa Ratings
MPAA Ratings Restricting movies by their rating. Canadian English Ratings Canadian French Ratings Press [MENU]. -The menu will appear. Press [ ] to move to <Setup>, then press [OK]. -The <Setup> Menu will appear. Press [ ] to move to <V-Chip>, then press [OK]. -The <Password Dialog Box>... -
Page 37: Captions Settings
Captions Settings Press [MENU]. -The menu will appear. Press [ ] to move to <Caption>, then press [OK]. -The <Caption> Menu will appear. Press [ ] to move to <On/Off>, then press [OK]. -The <On/Off> Menu will appear. Press [ ] to move to <On>, then press [OK]. -
Page 38: Digital Mode
Digital Mode The Digital Caption function operates for digital channels. Digital Font Options Press [MENU]. -The menu will appear. Press [ ] to move to <Caption>, then press [OK]. -The <Caption> Menu will appear. Press [ ] to move to <Digital Mode>, then press [OK]. -The <Digital Mode>... -
Page 39: Checking Items Before Connecting To A Pc
Checking Items before Connecting to a PC Check the list below before connecting a PC to the TV. Precautions Set your resolution and frequency to a resolution supported by the TV. ■ Refer to the instructions when connecting a PC (graphics and sound cards). ■... -
Page 40: Troubleshooting Guide
Troubleshooting Guide If you are having problems with using the TV, please consult this guide below. If this guide does not help resolve the problem, please contact Technical Support by phone at 1-800-681-2629 or 718-416-3197, or by email at techsupport@cobyusa.com. Our hours are Monday to Friday, 8:30 AM–8:30 PM EST and Saturday to Sunday, 9:00 AM–5:30 PM EST. - Page 41 Troubleshooting Guide Screen Problems Poor picture Black picture Lined and flickering picture. Disfunctioning channels. Picture with white and black dots. Only certain channels are in black and white The Sub-Screen is black. Automatic turn-on is inactive. Channel Problems The channels are not functioning.
-
Page 42: Specifications (Tf-Tv3709)
Specifications Model name Size Display Size Pixel Pitch Pixel Number Type Brightness Contrast Ratio Viewing Angle Cable Video System Sound System Color System VIDEO Video System Video Input Component Audio Input Frequency Display Colors Resolution Sync. Input Signal Video Signal Audio Output Power Supply Power Consumption... -
Page 43: Specifications (Tf-Tv4209)
Specifications Model name Size Display Size Pixel Pitch Pixel Number Type Brightness Contrast Ratio Viewing Angle Cable Video System Sound System Color System VIDEO Video System Video Input Component Audio Input Horizontal Frequency Vertical Display Colors Maximum Resolution Optimum Sync. Input Signal Video Signal Audio Output... - Page 44 P/N : 941262P1CB01...
