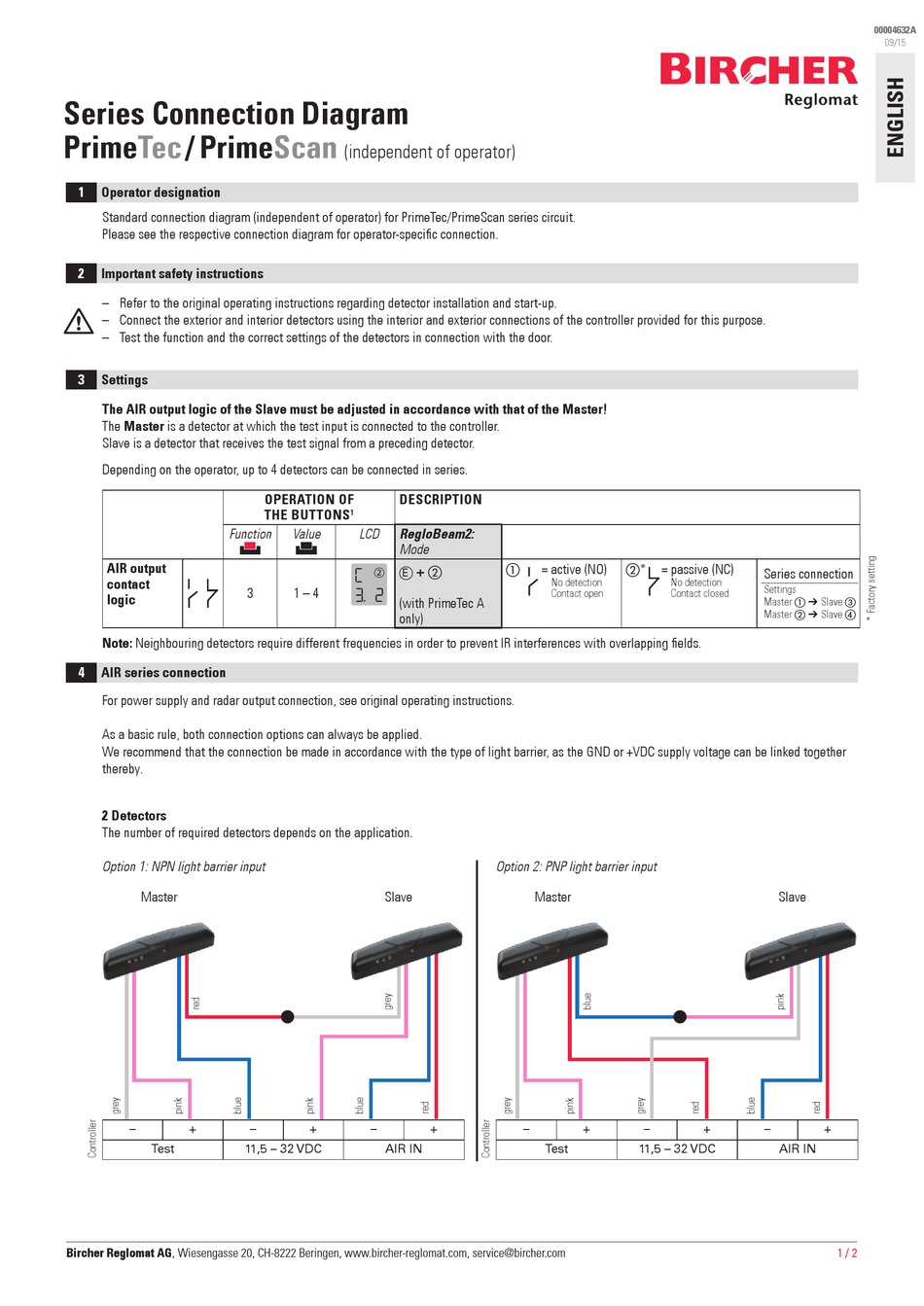

Series Connection Diagram
PrimeTec
/
PrimeScan
1

Operator designation

Standard connection diagram (independent of operator) for PrimeTec/PrimeScan series circuit.
Please see the respective connection diagram for operator-specific connection.
2

Important safety instructions

– Refer to the original operating instructions regarding detector installation and start-up.
– Connect the exterior and interior detectors using the interior and exterior connections of the controller provided for this purpose.
– Test the function and the correct settings of the detectors in connection with the door.
3

Settings

The AIR output logic of the Slave must be adjusted in accordance with that of the Master!
The Master is a detector at which the test input is connected to the controller.
Slave is a detector that receives the test signal from a preceding detector.
Depending on the operator, up to 4 detectors can be connected in series.
Function
AIR output
contact
logic
Note: Neighbouring detectors require different frequencies in order to prevent IR interferences with overlapping fields.
4

AIR series connection

For power supply and radar output connection, see original operating instructions.
As a basic rule, both connection options can always be applied.
We recommend that the connection be made in accordance with the type of light barrier, as the GND or +VDC supply voltage can be linked together
thereby.
2 Detectors
The number of required detectors depends on the application.
Option 1: NPN light barrier input
Master
+
Test
Bircher Reglomat AG, Wiesengasse 20, CH-8222 Beringen, www.bircher-reglomat.com, service@bircher.com
(independent of operator)
OPERATION OF
DESCRIPTION
THE BUTTONS
1
Value
LCD
RegloBeam2:
Mode
+ 
2
E
3
1 – 4
(with PrimeTec A
only)
Slave
+
11,5 – 32 VDC
AIR IN
= active (NO)
No detection
Contact open
Option 2: PNP light barrier input
Master
+
+
Test
= passive (NC)
*
Series connection
No detection
Settings
Contact closed
Master  ➔ Slave 
Master  ➔ Slave 
Slave
+
11,5 – 32 VDC
AIR IN
00004632A
09/15
+
1 / 2
