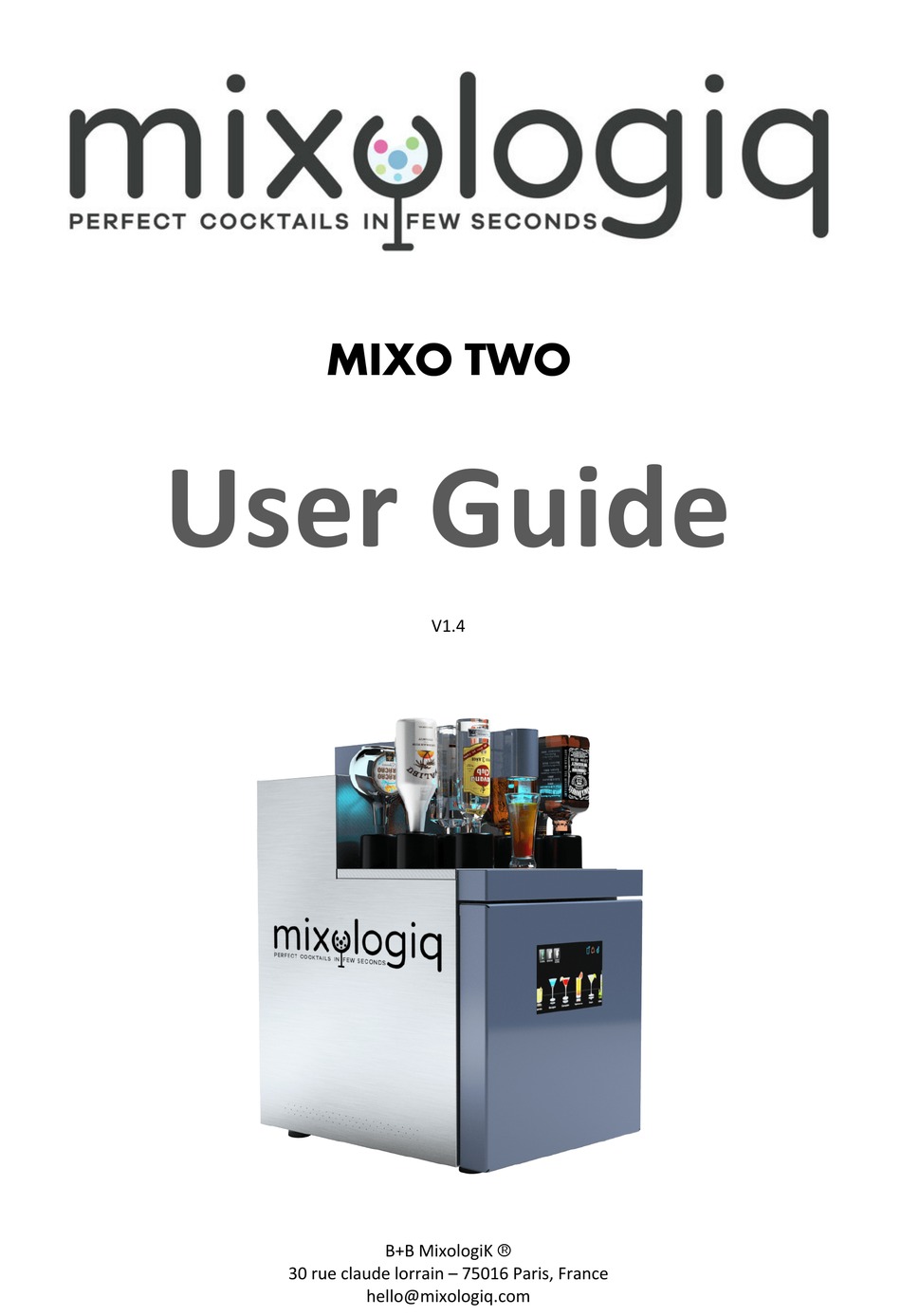

- Page 1 MIXO TWO User Guide V1.4 B+B MixologiK â 30 rue claude lorrain – 75016 Paris, France hello@mixologiq.com...
-
Page 2: Table Of Contents
START MIXO TWO ........................7 SETTING MENU DESCRIPTION ....................9 LANGUAGE SELECTION ......................9 INTERNET CONNECTION ...................... 10 POSITIONING BOTTLES IN MIXO TWO ................13 BOTTLES MAP .......................... 13 CLEANING PROCESS ....................... 15 CALIBRATION PROCESS ......................17 FRIDGE TEMPERATURE ......................19 PREPARING A COCKTAIL ..................... -
Page 3: Introduction
INTRODUCTION Thank you for choosing Mixo Two cocktail machine, we want you to make the most of your new machine. Please read carefully this USER GUIDE before using Mixo Two, in doing so you will avoid putting yourself at risk or damage the machine. -
Page 4: General Information
GENERAL INFORMATION Safety precautions Technical safety Prior to use check the plug and lead for any damage. Hold the plug when removing the plug from the socket. Check whether the power supply is suitable for this product. Ensure that the product is standing firmly and level. Always have repairs carried out by qualified service engineers. - Page 5 Climate classification A refrigerator is produced for optimal performance within certain ambient temperatures. This product is suitable for the following classification: N: from +16 °C to +32°c. Refrigeration A hydrocarbon refrigerant (R600a) can cause frostbites and cold burns, exposure to low concentrations may lead to dizziness, headache, nausea and loss of coordination.
-
Page 6: Content Of The Shipping Box
CONTENT OF THE SHIPPING BOX The shipping BOX of the Mixo Two contents: Mixo Two cocktail machine Mobile Caps for bottles Inside cleaning container (x1) (x10) (x1) Top Middle cleaning container Top Left cleaning container Top Right cleaning container (x1) -
Page 7: Installation
INSTALLATION Location Mixo Two must be installed on a flat horizontal smooth surface to work properly. Legs are used for adjustment and levelling. A minimum distance of 20 cm is required above the top of the machine to enable the change of the bottles. -
Page 8: Start Mixo Two
START MIXO TWO Switch on Mixo Two Once the Installation is complete, to start Mixo Two switch (D) to position 1. The screen after few seconds will show the following message: Click on and the Main screen will appear:... - Page 9 Main Screen Description A. Preloaded Cocktails Families B. List of cocktails in progress C. Alerts (Empty Bottles, New software update… ) D. Preloaded Bottle Map E. Settings Menu F. Internet connection status G. Horizontal scrollable list of preloaded cocktails for the family selected...
-
Page 10: Setting Menu Description
SETTING MENU DESCRIPTION Open the setting menu click on (E), that takes you to the screen below: H. Launch cleaning Menu I. Calibrate bottles J. Connect to Internet K. Change language L. Use for maintenance M. Restart machine N. Back to main screen Language Selection In the setting menu click on “Lang”... -
Page 11: Internet Connection
INTERNET CONNECTION To work properly Mixo Two must be connected to Internet to: Add / Edit / Delete recipes View statistics of consumptions Make software update Remote control in the event of malfunctions Mixo Two can work properly even if Internet connection is out of service but will not be able to be updated &... - Page 12 Select the correct Wireless network in the list: Type the Wifi password then click (Note: Keyboard can be scrolled from top to bottom to get lowercase letters and special characters). If password is correct the internet connection status will become active: If internet connection is after 2 minutes, check your password.
- Page 13 Advanced internet configuration For specific configuration when DHCP is not active (usually in large companies) click Choose “Wired” or “Wireless” Unselect DHCP Set your own IP Address, Network Mask, Gateway, DNS Click...
-
Page 14: Positioning Bottles In Mixo Two
Mixo Two best operation. Bottles Map Mixo Two has 20 available bottles slots for Alcohol, Liquors, Syrups and Juices (10 chilled and 10 at room temperature). Each slot is represented by a number from 1 to 20, it can be viewed by clicking on... - Page 15 Bottles installation on TOP section ( bottles) Insert the mobile cap (2) on the bottle, as shown below:. To insert the mobile cup in a bottle, follow steps in the proper order: Open the bottle, if necessary remove its flow limiter. Insert the mobile cap fully on the top of the bottle (bottle upright) Press on the valve (for degassing) Then, when this is done :...
-
Page 16: Cleaning Process
CLEANING PROCESS Regular cleaning is essential to make Mixo Two operates at its best The cleaning process consists in two separate operations. In the setting menu click on “Clean Mixo” (H) to get the following screen: Cleaning the INSIDE section:... - Page 17 Put the Middle container under distribution head. o Follow cleaning steps from screen Click on Mixo Two is pumping the hot water from the Cleaning containers and put it in the Middle container. Once the containers and the tubes are empty the cleaning process is completed.
-
Page 18: Calibration Process
Select the bottles you want to calibrate (by default the not calibrated bottles are selected) Click “Calibrate X bottles” In case Mixo Two is not clean, it will start by asking you to clean the machine: Follow the steps on the screen or refer to the Cleaning Section. - Page 19 When calibration glass is full, screen will ask to empty it. o If an error occurs during calibration process on one or more bottles Mixo Two will inform at the end of process ( or during process) to correct it.
-
Page 20: Fridge Temperature
Calibration process Mixo Two uses a sensor which is integrated in the distribution head. Mixo Two may ask to clean it if dirty by showing you this image. In this case clean sensor using a dry tissue to remove traces of liquid. -
Page 21: Preparing A Cocktail
PREPARING A COCKTAIL On the main screen, click on the cocktail you want to prepare, a new window will open for selecting the cocktail recipe before selecting the number of cocktails to be made: The process is as follows: • Select the family (“Classical”, “Signature”, “Mocktails”... - Page 22 • Mixo Two serves the doses according to the recipe. • At the end of the cocktail follow the last steps before serving the customer: o If the cocktail was done in the shaker, it must be shaked and served in the glass with or without the ice depending of the recipe.
- Page 23 END OF BOTTLES When Mixo Two is missing an ingredient, you will be informed by: A message while the cocktail is processing An Alert message that will disappear when Mixo Two manages to get the liquid: Viewing the queue/cancelling a cocktail To view the queue of cocktails in progress or to cancel them: •...
- Page 24 SOFTWARE VERSION AND UPDATE Mixo Two is controlled through a Software that is improved continually to upgrade its performance. Software section The version of the Software can be viewed on the Settings menu: Automatic update When a new software version is available an alert will be displayed: To install it, click on the icon on the right and wait for 2 minutes while the machine is restarting.
- Page 25 In case of recurring problems with a bottle you should contact your Distributor for maintenance. In the meantime and continue using Mixo Two without the bottle that has a problem, you can disable the bottle in the maintenance menu. In the setting menu...
-
Page 26: Backoffice Access: Add And Edit Recipes
Access to the Backoffice at the UR: https://my.mixologiq.com (you may ask your codes to your Distributor). Mixo Two must be connected on Internet to Synchronize the recipes with the Backoffice. For more information about the Backoffice refer to its own documentation. -
Page 27: Troubleshooting
TROUBLESHOOTING Before contacting your Distributor, please try and solve your problems using the table below: Problem Probable cause(s) Solution Recipe does not fill the Ice is missing in the glass Check if recipe requires glass ice inside the glass. Size of the glass is bigger Adapt recipe in the than standard size used Backoffice to fit your...
