Summary of Contents for Eastwood Elite TG2000

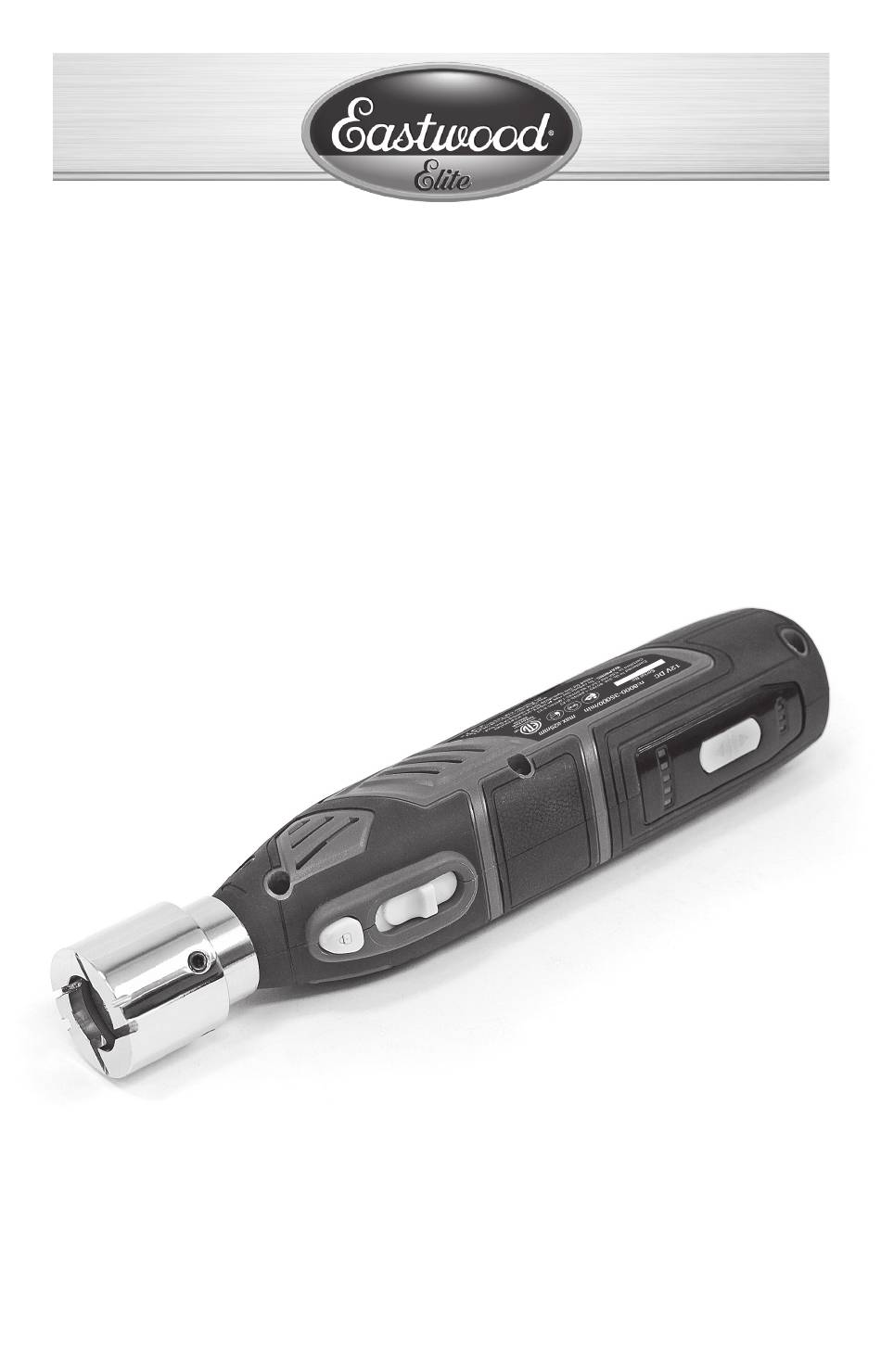

- Page 1 Item #58878 TG2000 CORDLESS TUNGSTEN GRINDER INSTRUCTIONS...
- Page 2 The EASTWOOD ELITE TG2000 CORDLESS TUNGSTEN GRINDER was specifically designed for the frequent user. Includes a rechargeable, long-life, 12-volt Lithium-Ion battery that provides ample power and charge for jobs away from the welding bench, or in the field, with cordless convenience.
-
Page 3: Safety Information
Grinder. EYE INJURY HAZARD! • Rapidly moving abrasive surfaces can eject metal particles, dirt and debris at high velocity. Always wear ANSI approved eye protection when operating this tool. To order parts and supplies: 800.343.9353 >> eastwood.com... - Page 4 • This tool may emit high sound levels while operating. Use ANSI approved ear protection when operating. VIBRATION INJURY HAZARD! • This tool will vibrate during use! Repeated exposure to vibration may cause physical injury. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
-
Page 5: Operation
Down Down Paddle setting of 3. Setting 4 is gener- ally optimal for tungsten grinding, Battery Charge however this will vary upon user Indicators Low Full preference. To order parts and supplies: 800.343.9353 >> eastwood.com... - Page 6 REPLACING DIAMOND GRINDING WHEEL • Using a 3mm Hex Key (not included), loosen the four Retaining Set-Screws (FIG 6). • Remove the Grinding Head and set it aside (FIG 7). FIG. 7 FIG. 7 Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
- Page 7 Grinding Guide opening is fully con- centric with the Retaining Screw at the center of the Diamond Grinding Wheel (FIG 10). • The Eastwood Tungsten Grinder is now ready for use. FIG. 10 FIG. 10 To order parts and supplies: 800.343.9353 >> eastwood.com...
-
Page 8: Maintenance
• Approximate charge time from depleted to full is two hours. • After charging, unplug the wall charger and USB-C charge plug. DO NOT leave the charger plugged into the unit and the wall for extended periods of time. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com... - Page 9 NOTES To order parts and supplies: 800.343.9353 >> eastwood.com...
-
Page 10: Troubleshooting
Allow Diamond Grinding Wheel to cut by rotation alone. DO NOT Force. applied to Tungsten tungsten Grinder Dirt and debris Overheats buildup in Use a brush or compressed air to remove debris. motor cooling air slots Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com... - Page 11 800.544.5118. While Plugged Battery Does Indicate it is Charging While Plugged Battery Contact Eastwood Technical Assistance: In, but is Not damaged techelp@eastwood.com or 800.544.5118. Reaching a Higher Charge State To order parts and supplies: 800.343.9353 >> eastwood.com...
-
Page 12: Additional Items
1/16” x 7” E3 Purple Tungsten Rods, 2 Pack If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: tech@eastwood.com PDF version of this manual is available at eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA 800.343.9353 eastwood.com...
