- Page 1 Item #33307 TG1800 TUNGSTEN GRINDER INSTRUCTIONS...
-
Page 2: Specifications

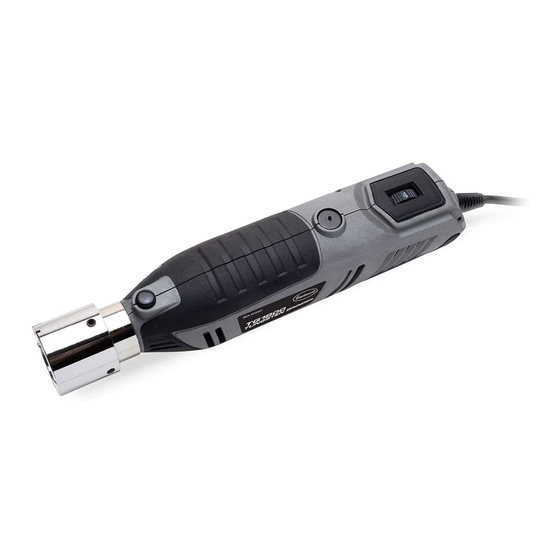

This EASTWOOD TG1800 TUNGSTEN GRINDER features a long-lasting, double-sided, Diamond Grinding wheel capable of providing over 200 tungsten sharpening’s before requiring replacement. The high-speed electric motor allows the user to produce a finely sharpened point in the ideal 10° or 22.5°... -
Page 3: Safety Information
• Rapidly rotating surfaces can eject metal particles and dust at high velocity. Always wear ANSI approved eye protection when operating this tool. HEARING DAMAGE HAZARD! • The Eastwood Tungsten Grinder emits elevated sound levels while operating. Use ANSI approved ear protection when operating this tool. INJURY HAZARD! •... - Page 4 • This tool will vibrate during use! Repeated exposure to vibration may cause physical injury. • Use care not to cover motor cooling slots with a gloved hand while in operation to avoid overheating. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
-
Page 5: General Safety
Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards. To order parts and supplies: 800.343.9353 >> eastwood.com... - Page 6 Use of the power tool for operations different from those intended could result in a hazardous situation. Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
- Page 7 - Two notches (1/16” & 3/32”) cut into the top, outside edge of the Grinding Head. These slots are designed to grip the burned end of tungsten rods for clean breakage (FIG 1). To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 8 Housing to the “OFF” position. • Plug the power cord into a 120VAC, 60HZ outlet. • While holding the Eastwood Tungsten Grinder securely, move the On-Off Switch to the “On” position. • Rotate the Speed Control Wheel located FIG.
- Page 9 Wheels to prevent accidental tool starting and potential severe injury. • Using a 3mm Hex Key (not included), loosen the four Retaining Set-Screws (FIG 5). • Remove the Grinding Head and set it aside (FIG 6). To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 10 Screws an equal amount so that the Grinding Guide opening is fully con- centric with the Retaining Screw at the center of the Diamond Grinding Wheel (FIG 9). • The Eastwood Tungsten Grinder is now ready for use. FIG. 9 Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com...
-
Page 11: Maintenance
Allow Diamond Grinding Wheel to cut by rotation applied to alone. Do Not Force. tungsten Tungsten overheats Dirt and debris buildup in Use a brush or compressed air to remove debris. motor cooling air slots To order parts and supplies: 800.343.9353 >> eastwood.com... -
Page 12: Additional Items
The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: techelp@eastwood.com PDF version of this manual is available at eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464 800.343.9353 eastwood.com © Copyright 2020 Eastwood Automotive Group LLC 6/20 Instruction item #33307Q...
