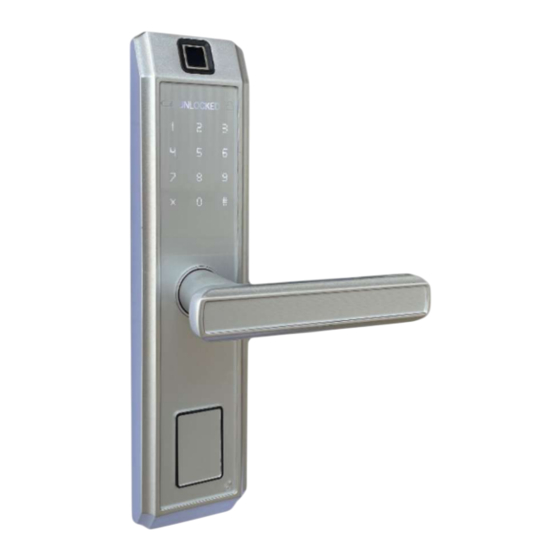

SEVENOC INTELLIGENT DIGITAL LOCK
1. Function and Operation
1) Administrator information: refers to the administrator's Password or
Fingerprint.
2) Unlock information: refers to the input Password or Fingerprint information
(including administrators and ordinary users).
3) Key " * " : Clear key / Back key. Click the key three times in success exit.
4) Key " # " : Confirmation key or menu function key.
5) Key " 1 " : Add User
6) Key " 2 " : Delete User
7) Key " 3 " : Passage Mode
8) Key " 4 " : Silent Mode

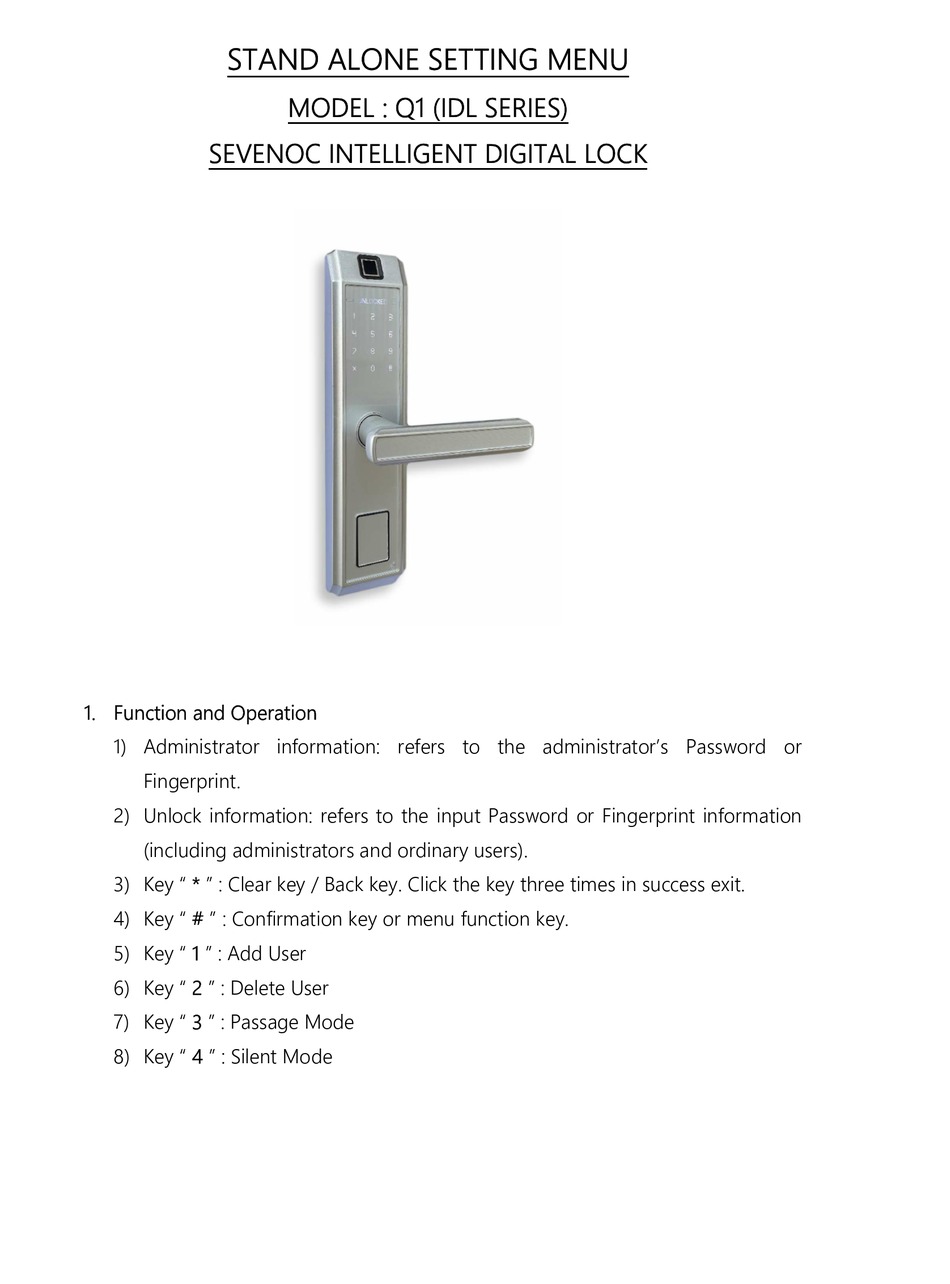

STAND ALONE SETTING MENU
MODEL : Q1 (IDL SERIES)
Advertisement
Table of Contents
Related Manuals for SEVENOC IDL Q1
Summary of Contents for SEVENOC IDL Q1
- Page 1 STAND ALONE SETTING MENU MODEL : Q1 (IDL SERIES) SEVENOC INTELLIGENT DIGITAL LOCK 1. Function and Operation 1) Administrator information: refers to the administrator’s Password or Fingerprint. 2) Unlock information: refers to the input Password or Fingerprint information (including administrators and ordinary users).
- Page 2 2. Original State 1) Press and hold the setup key (behind back plate, small button at battery area) for 5 seconds, the voice announcement “Initialization succeeded” 2) The factory administrator initial password is 123456, under the initial state, only 123456 Password can open the lock, and any Fingerprint can open the lock.
- Page 3 4. Add User (Password, Fingerprint, Remote Control) Settings “ 1 “ – Add user Add Password new administrator password: 147258 Press * # 147258 # 1 enter user password # user password: Ex: * # 147258 # 1 741852 # enter user password 2 times Add Fingerprint Press * # 147258 # Place USER FINGER to the Sensor on the Digital Lock...
- Page 4 6. Enable Passage Mode Settings “ 3 “ – Passage Mode new administrator password: 147258 Press * # 147258 # 3 Ex: * # 147258 # 3 7. Disable Passage Mode Settings “ 3 “ – Passage Mode new administrator password: 147258 Press * # 147258 # 3 Ex: * # 147258 # 3 Note: After the normally open mode is turned on, each unlock is normally open, and it...
- Page 5 8. Enable Silent Mode Settings iii) “ 4 “ – Silent Mode new administrator password: 147258 Press * # 147258 # 4 Ex: * # 147258 # 4 9. Disable Silent Mode Settings “ 4 “ – Silent Mode new administrator password: 147258 Press * # 147258 # 4 Ex: * # 147258 # 4 Note: After the silent mode is turned on, each unlocking process is muted.
- Page 6 10. Other Notes 1) Input the wrong password more than 5 times in a row, the keyboard lock for 1 minute, it does not respond to any operation within 1 minute. 2) Password peeping prevention function: input password as follows when opening the door with password: XXX password XXX;...
