Summary of Contents for SEATTLE Sailing Club Puff J/105

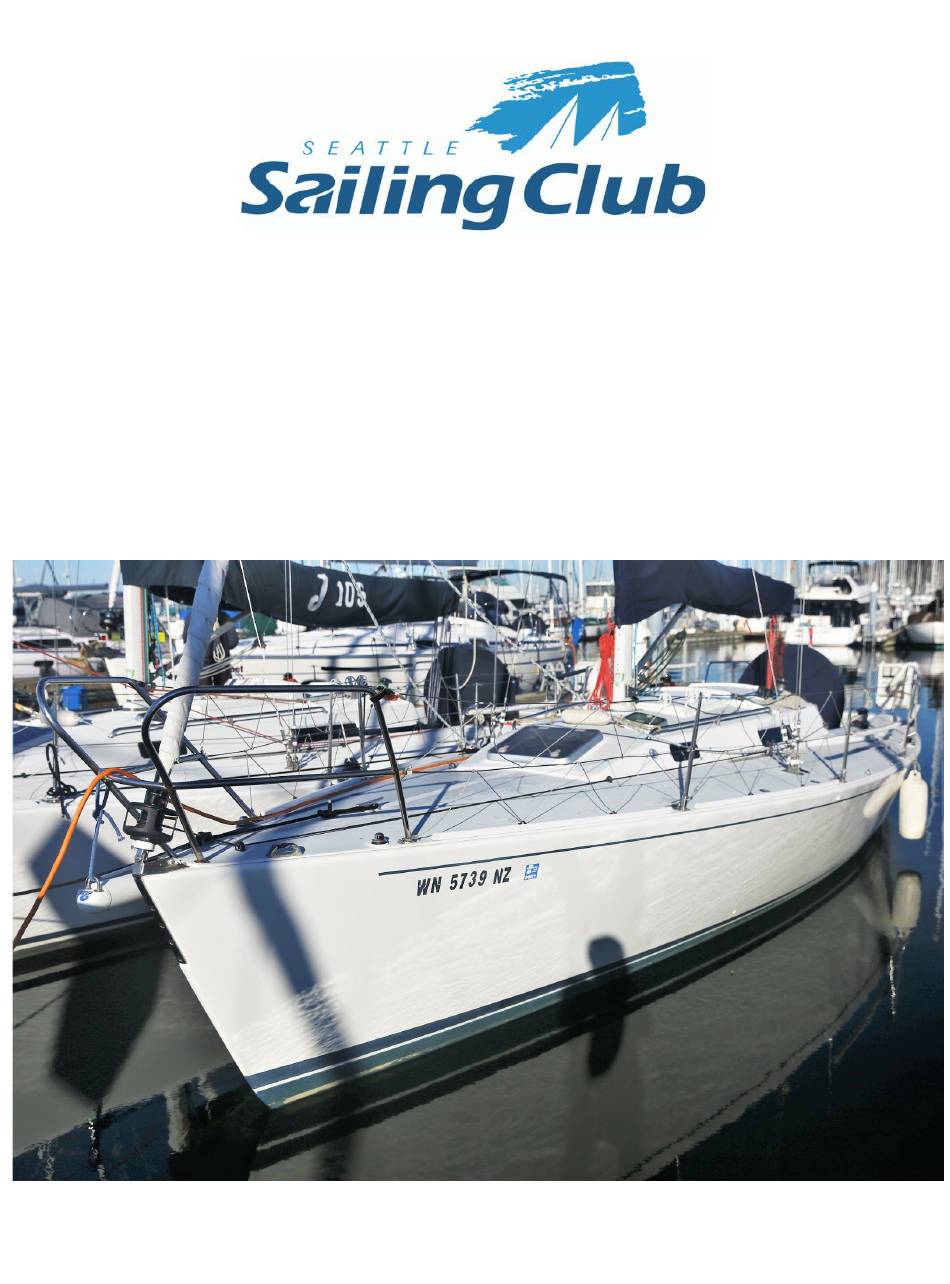

- Page 1 P uff J/105 Quick Guide...
-
Page 2: Table Of Contents
Table of Contents Engine Tankage Location/Access Water Tank Engine Cockpit Control Panel Fuel Tank Engine Battery Switch Holding Tank Engine Hour Meter Fuel Gauge Head Ignition/Start Operations Throttle No Discharge Zone Map Shift Engine Starting Bilge Pump Stop Engine Electric Bilge Pump Manual Bilge Pump Electrical Electrical Panel... -
Page 3: Location/Access
Quick Guide Name: PUFF Registration No: WN5739NZ LOA: 34’-6” Make/Model: J/105 Draft: 6’-6” Year: 1995 Beam: 11’-0” FCC call sign: WDJ668 Mast Height (above waterline): 50’-4” Engine: Yanmar 2GM20F Location/Access Behind companionway steps Engine Control Panel In cockpit - port aft of binnacle Engine Battery Switch To port of engine cover in cabin Engine Hour Meter... -
Page 4: Electrical
Electrical AC Electrical Panel AC panel located on aft starboard bulkhead in main cabin House Battery Switch Main DC breaker is located above chart table to the left. Selector switch is located to port of engine cover. Use “1” or “2” to start engine. Battery Charging Charged by either shore power (make sure AC power and battery charger switch are turned ON) or by running the engine. -
Page 5: Head
Head Operation Make sure the water intake seacock is open (usually left open), which is under the v-berth, port side Nothing goes in Head Operation: the bowl that has 1. Move selector switch to wet bowl not been 2. Pump 3-5 times to allow water into the bowl consumed first. -
Page 6: Bilge Pump
Bilge Pump Bilge Pump 3-way switch below DC panel. Hold to “manual” for continuous or “auto” for intermittent (Electric) with a float switch. Always leave the switch on “auto” before leaving the boat. Bilge Pump Socket located aft portside in the cockpit next to the start panel. Handle is stowed in the (Manual) chart table. -
Page 8: Inventory
Inventory Item Location Air Horn & Can Safety Box (clear tupperware in cabin) Boat Hook Starboard above setee Bilge Pump Handle 1. Inside chart table 2. With manual bilge pump Coast Guard Oil discharge placard: above engine cover. MARPOL trash placard: above Regulation Placards engine cover. -
Page 9: Safety Equipment Diagram
Safety Equipment Diagram...
