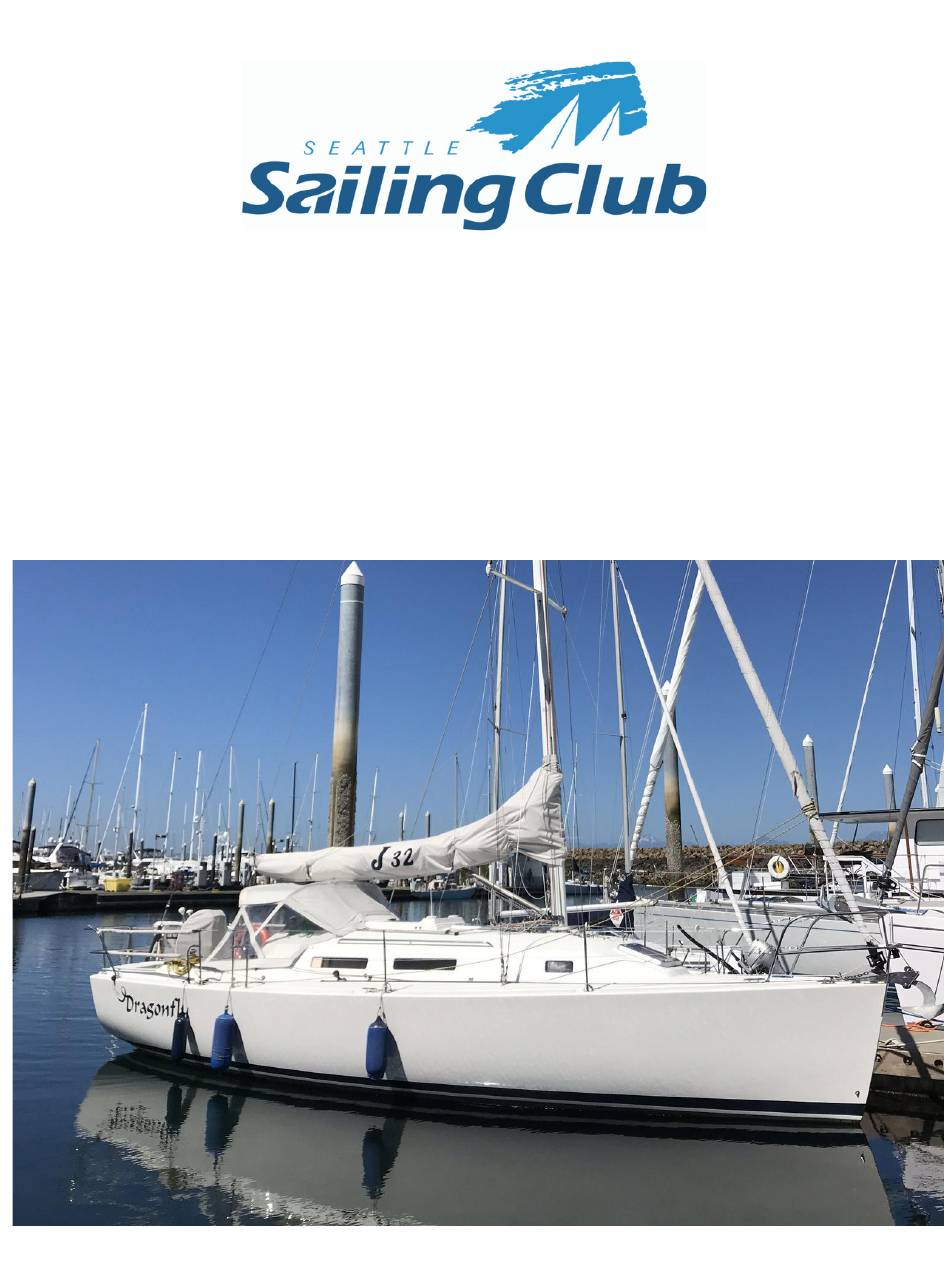

- Page 1 Dragonfly J/32 Quick Guide...
- Page 2 Table of Contents Engine Tankage Location/Access Water Tanks Engine Cockpit Control Panel Fuel Tank Engine Battery Switch Holding Tank Engine Hour Meter Fuel Gauge Head Ignition/Start Operations Throttle No Discharge Zone Map Shift Engine Starting Bilge Pump Stop Engine Electric Bilge Pump Manual Bilge Pump Electrical Electrical Panel...
- Page 3 Quick Guide For detailed information, refer to the expanded boat manual on board. Name: DRAGONFLY Documentation No. 1281646 LOA: 32’-5” Make/Model: J/32 Draft: 6’-6” Year: 1997 Beam: 11’-0” Mast Height (over waterline): 48’-8” Engine: Yanmar 3GM30F Location/Access Behind companionway steps Engine Control Panel Engine control panel on starboard, aft cockpit combing Engine Battery Switch...
- Page 4 Electrical AC Electrical Located on the right half of the electrical panel. Main breaker switch is on top. Switches House Battery Switch Under the chart table; set battery selector to “1” Battery Charging Charged by either shore power (make sure AC power and battery charger switch are turned ON) or by running the engine.
- Page 5 Head Operation Make sure the water intake seacock is open, which is under the head sink. Should be left open. Nothing goes in Head Operation: the bowl that has 1. Move selector switch to wet bowl not been 2. Pump 3-5 times to allow water into the bowl consumed first.
-
Page 6: Bilge Pump
Bilge Pump Bilge Pump 3-way switch on bottom right side of DC panel. Hold to “manual” for continuous or “auto” (Electric) for intermittent with a float switch. Always leave the switch on “auto” before leaving the boat. Bilge Pump 2 sockets: one is located aft portside in the cockpit next to the start panel, the other is (Manual) located in the galley. -
Page 7: Thru Hull Diagram
Thru Hull Diagram... - Page 8 Inventory Item Location Air Horn & Can Safety Box Boat Hook Lazarette Bilge Pump Handle Navigation table & next to engine panel Coast Guard Oil discharge placard: Inside outside of cover. Regulation Placards MARPOL trash placard: below icebox. CO2 placard: Just below the companionway entrance at top of steps. Deck Key Inside navigation table Emergency Tiller...
