Summary of Contents for Coby TF-DVD5605

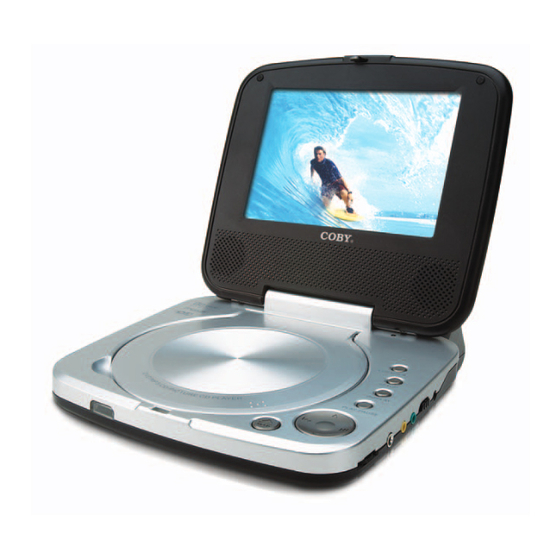

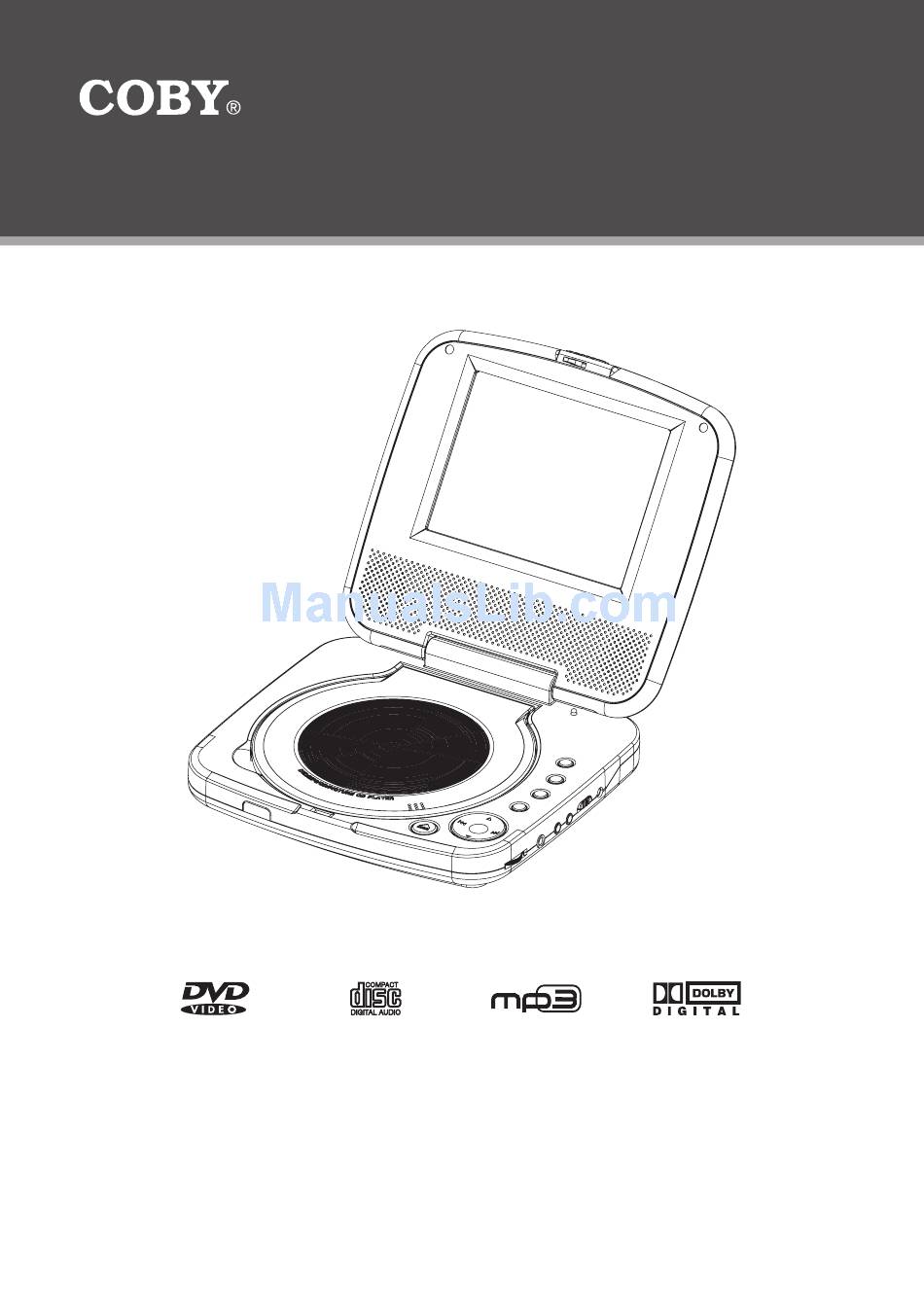

  • Page 1 TF-DVD5605 5.6” TFT LED Portable DVD/CD/MP3 Player Instruction Manual Please read this manual carefully before operation.
  • Page 2: Precautions

    For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org. PRECAUTIONS For Customer Use: Enter below the serial number that is located on the bottom of the unit. Retain this information for future reference. Model No. Serial No. TF-DVD5605...
  • Page 3: Safety.instructions

    SAFETY INSTRUCTIONS Read Instructions: All the safety and operating instructions should be read before the product is operated. Retain Instructions: The safety and operating instructions should be retained for future refer- ence. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to.
  • Page 4 SAFETY INSTRUCTIONS Outdoor Antenna Grounding: If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANS/NFPA 70 provides information with regard to proper grounding of the mast and support-...
  • Page 5 SAFETY INSTRUCTIONS Wall or Ceiling Mounting: The product should be mounted to a wall or ceiling only as recom- mended by the manufacturer. Heat: The product should be situated away from heat sources such as radiators, heat regis- ters, stoves, or other products (including amplifiers) that produce heat. Note: The main plug is used to disconnect the device.
  • Page 6: Table Of Contents

    PRECAUTIONS..2 SAFETY.INSTRUCTIONS..3 TABLE.OF.CONTENTS..6 PACKAGE.CONTENTS... 8 ABOUT.OPTICAL.DISCS..9 Disc Requirements ...9 Disc Care and Maintenance ...9 Handling a Disc ...9 Cleaning a Disc ...9 LOCATION.OF.CONTROLS... 10 Main Unit ...10 Remote Control ...11 CONNECTIONS...
  • Page 7 TABLE OF CONTENTS DVD/DISC.FUNCTIONS... 17 Search ...17 DVD Chapter/Title Search ...17 DVD Time Search (within a specified title) ...17 CD Time Search: ...17 Repeat Mode...17 Repeat A-B Mode ...17 Multi-Angle/Subtitle/Audio ...18 Zoom ...18 Program ...18 DVD Program Mode...18 CD Program Mode ...19 MP3 Program Mode ...19 FUNCTION.BUTTONS...
  • Page 8: Package.contents

    PACKAGE CONTENTS TF-DVD5605 Battery Pack AV Cable Mute Clear Step Stereo Headphones Remote Control AC Adapter DC Car Adapter...
  • Page 9: About.optical.discs

    ABOUT OPTICAL DISCS Disc Requirements This DVD player supports playback of the following discs. Type DVD-Video Discs Audio Compact Discs (CDs) MP3 CDs (CD-R, CD-RW) JPEG CDs This unit can play back CD-R and CD-RW discs that contain audio titles, MP3 files, or JPEG picture files.
  • Page 10: Location.of.controls

    LOCATION OF CONTROLS Main Unit Latch TFT LED Display Stereo Speakers Remote Sensor Power Indicator Power In Jack (DC 9V) Power Switch Video Out Jack Audio Out Jack Headphone Jack Volume Control Dial LCD Mode Setup Stop Play/Pause/Enter Up (Navigation) Right (Navigation) Next/Forward Down (Navigation)
  • Page 11: Remote Control

    LOCATION OF CONTROLS Remote Control Title Power Menu Enter Navigation Keys Mute Numeric Buttons Clear Repeat A-B Repeat Audio Subtitle Mute Step Display LCD Mode Setup Play/Pause Stop Zoom Next / Previous (Skip) Forward / Reverse (Search) Search Step Slow Program Angle...
  • Page 12: Connections

    Audio/Video (AV) Output Your player comes equipped with AV Output Jacks. Use the AV Output connection to output your player’s DVD signal to an external display (e.g., a TV or monitor). VIDEO OUT AUDIO OUT NOTE: • Refer to your TVs instruction manual for more information on setting it to the proper AV mode.
  • Page 13: Getting.started

    GETTING STARTED Remote Control • Refer to the diagram. Remove the battery compartment cover located on the rear of the remote control. Insert batteries, making sure to match their polarities (+/-) to the markings on the inside of the compartment. Replace the cover.
  • Page 14: Using The Dc (Car) Power Adapter

    Using the DC (Car) Power Adapter This DC adapter should be used with DC car sock- ets. • The DC power adapter is for in-car use, only. Using the Battery Pack (DC) The rechargeable battery pack can be used for ap- proximately 300 charge-cycles without any notice- able change in performance.
  • Page 15: Basic.operations

    Basic Disc Playback Open the player. Slide the latch in the direction of the arrow to unlock the DVD player and unfold to open. Prepare the power supply. Set the Power Switch to the ON position to turn the player on.
  • Page 16: Menu Navigation

    Menu Navigation To navigate DVD disc menus or the player’s setup menus: • Use the Navigation keys (Up/Down/Left/Right) to select a desired feature or option in the menu. • Press ENTER to confirm a selection in the menu. • For some menu options, you may be able to use the numeric key- pad to input data.
  • Page 17: Dvd/Disc.functions

    DVD/DISC FUNCTIONS Search Press SEARCH to go directly to a desired point of a disc (e.g., Title, Chapter, Time). DVD Chapter/Title Search • Press SEARCH once to display the Chap- ter/Title Search Bar. • Press the LEFT/RIGHT navigation keys to select (highlight) an entry field.
  • Page 18: Multi-Angle/Subtitle/Audio

    DVD/DISC FUNCTIONS Multi-Angle/Subtitle/Audio • During playback of a DVD that has been mastered with multiple angles, press ANGLE to view the available alternate camera angles. (A DVD may have up to 9 selectable angles.) • During playback of a DVD that has been mastered with subtitles, press SUBTITLE to view the available subtitle tracks.
  • Page 19: Cd Program Mode

    DVD/DISC FUNCTIONS CD Program Mode Load a CD and press PROGRAM. Press the RIGHT navigation key to select the “Track” column; press the UP/DOWN naviga- tion keys to select a track. Press ENTER to confirm the selection. Repeat steps 2-3 until you have finished pro- gramming your selections or when you have programmed the maximum 20 tracks.
  • Page 20: Function.buttons

    LCD Mode Press the LCD MODE button to adjust the brightness, contrast, and color of the LCD screen. Press the UP/DOWN navigation keys to select the desired setting to adjust. From top to bottom, the settings are: Screen, Brightness, Contrast, Color, and Reset. Press the LEFT/RIGHT navigation keys to adjust the selected setting.
  • Page 21: Dvd.setup

    Enter DVD Setup mode to adjust the various internal DVD settings of the player. Make sure the player has been completely stopped before entering Setup mode. Press SETUP while the player is in DVD mode to access the DVD Setup menu. Use the NAVIGATION keys to select a desired item.
  • Page 22: Custom Setup

    Custom Setup Use the NAVIGATION keys to highlight the desired Custom Setup selection and press ENTER to confirm. Item Sets the maturity rating level of the player. The player will not play any Parental Ctrl discs rated higher than this setting. This setting is password protected (the default password is: 8888).
  • Page 23: Specifications

    SPECIFICATIONS Power Supply Power Consumption Video Signal System Video Output Audio Output S/N Ratio Dynamic Range (Audio) Display Type Display Resolution Operating Temperature Unit Dimensions Weight Specifications and manual are subject to change without prior notice. DC: 9V, 2A AC: 100-240V Adapter ≤...
  • Page 24: Troubleshooting

    If you have a problem with this player, please read the troubleshooting guide below and check our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support. COBY Electronics Technical Support 56-65 Rust Street Maspeth, NY 11378...
  • Page 25 TROUBLESHOOTING The remote control doesn’t work. • Ensure that the Power Switch has been physically set to the ON position. • Ensure that there are no obstacles between the remote and the player. • Point the remote at the remote sensor on the main unit. •...
  • Page 26 NOTES...
  • Page 27 NOTES...
  • Page 28 COBY Electronics Corp. 56-65.Rust.Street. Maspeth,.NY.11378 www.cobyusa.com. www.ecoby.com...
