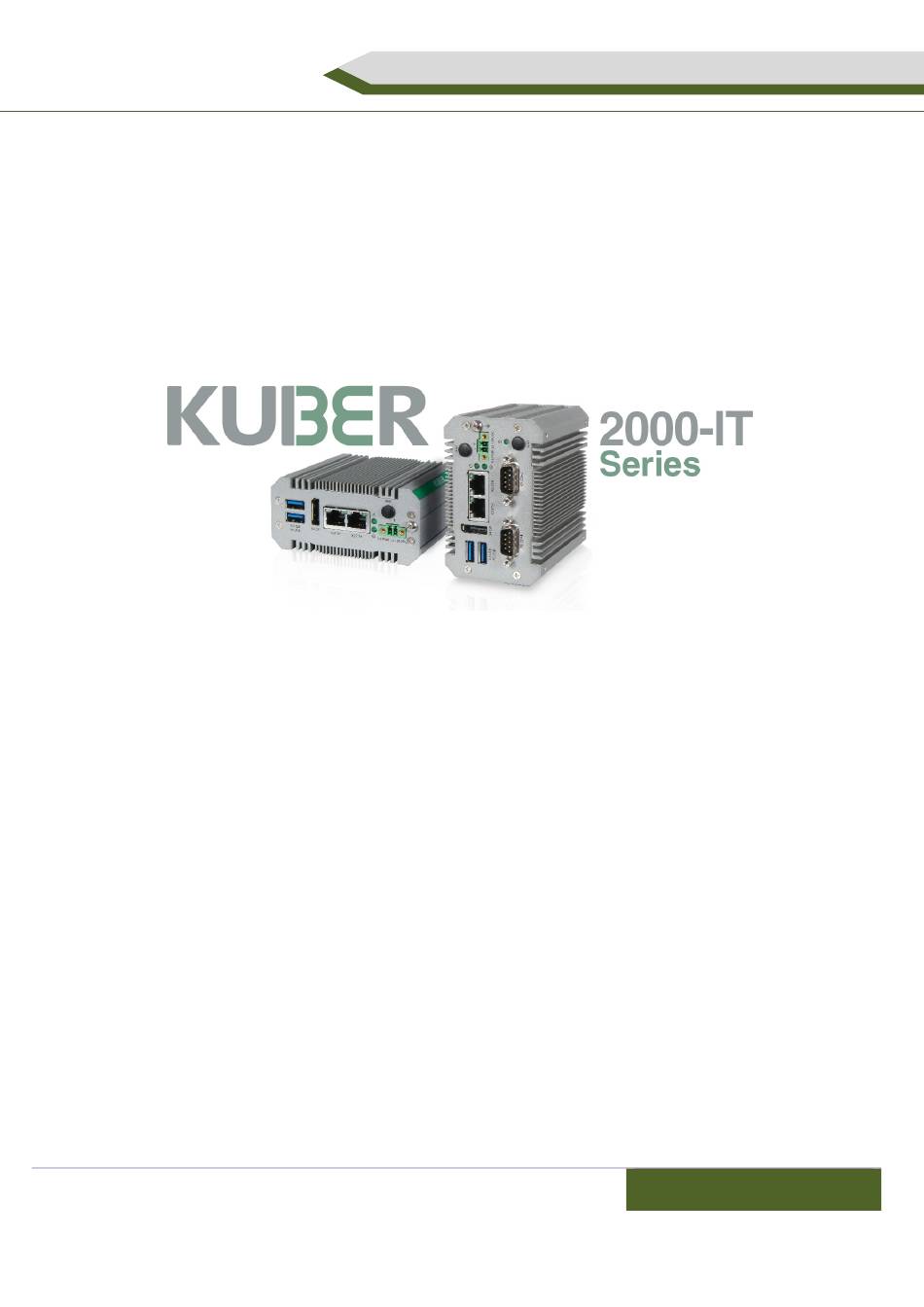

- Page 1 MITWELL KUBER-2000-IT Series User Manual KUBER-2000-IT Series User Manual Version 2.5 2021/10/06 Copyright © MITWELL 2021 KUBER-2000-IT Series User Manual...
-
Page 2: Table Of Contents
MITWELL KUBER-2000-IT Series User Manual Table of Contents REVISION ....................... 4 PREFACE ......................5 Copyright ....................5 Acknowledgement ................. 5 Warranty ....................5 Declaration of conformity ..............6 Technical support ................... 6 INTRODUCTION ..................... 7 Product overview ................... 7 Safety Precautions.................. 8 Hardware Specification ................ - Page 3 MITWELL KUBER-2000-IT Series User Manual Chassis Grounding ................23 Connecting Power ................23 External Antenna installation ............... 24 BIOS Default Setting ..................25 Main ..................... 25 Configuration ..................26 6.2.1 CPU Configuration ................ 26 6.2.2 Chipset Configuration ..............27 6.2.3 LAN Configuration ................
-
Page 4: Revision
MITWELL KUBER-2000-IT Series User Manual 1 REVISION Revision Date Description R1.8 20200107 - Update product information. R2.0 20200430 - Update product picture R2.2 20200511 - Update KUBER-212B GPIO & I/O rating R2.4 20200302 - Update P13 LAN port table Update P45 COM port screen shot Copyright ©... -
Page 5: Preface
2 PREFACE 2.1 Copyright This document is released and copyrighted are reserved by MiTwell, Inc. No parts of this document may be copied, reproduced by mechanical, electronics or other means in any form, for any purpose, without prior authorization by MiTwell, Inc. -
Page 6: Declaration Of Conformity
MiTwell’s products easily. We suggest that you download the latest documentation, utilities and drivers which have been made available to assist you on MiTwell website. If you still require assistance after visiting our website, you can contact your local sales and technical support team for further assistance. -
Page 7: Introduction
3 INTRODUCTION 3.1 Product overview KUBER-2000-IT series is a new generation of palm-sized, flexible and ready-to-use industrial PC designed for a variety of applications in the industrial 4.0 world. Within 10cm length, you can expect scalable Apollo Lake processors up to 4 cores, robust aluminum housing and common industrial features. -
Page 8: Safety Precautions
MITWELL KUBER-2000-IT Series User Manual 3.2 Safety Precautions Warning note This symbol indicates hazards that could lead to personal injury. There are three signal words indicating the severity of a potential injury. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. -
Page 9: Hardware Specification
MITWELL KUBER-2000-IT Series User Manual 3.3 Hardware Specification Model Name KUBER-212E-IT KUBER-2110-IT Intel® Celeron N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP Mass Storage 32GB onboard eMMC 5.0 flash; up to 256 GB (optional) Memory 4GB onboard LPDDR4 w/ 2133MHz, up to 8GB (optional) - Page 10 MITWELL KUBER-2000-IT Series User Manual Extended I/O Interface Model Name KUBER - 212E Additional Power input (POE) Ethernet/ POE 1 x RS-232 COM/Console 1 x RS-232/422/485 (BIOS Configurable) 1 x M.2 Key B 2242 Expansion Slot 1 x Mini-PCIe Copyright © MITWELL 2021...
-
Page 11: Appearance
MITWELL KUBER-2000-IT Series User Manual 3.4 Appearance 3.4.1 KUBER-2110-IT Core interface with 2 x USB3.0, 1 x DisplayPort, 2 x GbE LAN, Power connectors 3.4.2 KUBER-212E-IT Expanded interface with 1 x RS-232, 1 x RS-232/422/485 (BIOS Configurable) Copyright © MITWELL 2021... -
Page 12: Interface
DisplayPort (DP): These ports connect KUBER-2000-IT to external digital displays with a corresponding DP++ connector. 3.5.3 Ethernet KUBER-2000-IT series are equipped with Intel® i210 Gigabit LAN controller, which fully compliant with 10/100/1000 Base-T Ethernet network. Two RJ45 connectors allow the computer to communicate on a 10/100/1000 Base-T Gigabit LAN Ethernet network. -
Page 13: Com
MITWELL KUBER-2000-IT Series User Manual Function* Status Description Power ON Solid Green Power Power Off Flash Green Run Status (GPIO) *: Need to auto detection functionality while power applied 3.5.5 COM Serial (COM): D-SUB 9 serial ports are available for use, which is configurable as either RS-232, RS-422, or RS-485 by BIOS setting. -
Page 14: And Mini Pci-E Card Slot
MITWELL KUBER-2000-IT Series User Manual Connect a power source to the included power connector. This connector supports wire sizes from 0.2 to 1.5 mm² (AWG min.24). Use copper conductors only, wiring cable maximum temperature should support at least 105˚ C Tighten the wire to a torque value 5 kgf-cm.Torque the wire-retaining screws in the... -
Page 15: Antenna
MITWELL KUBER-2000-IT Series User Manual 3.5.8 Antenna A mini PCIe card/M.2 2230 card slot is available to allow KUBER-2000-IT to be placed on a wireless network. 3.6 Dimensions All dimensions shown in mm (millimeters) 3.6.1 One layer Dimension: 99x 46x 92(mm) Copyright ©... - Page 16 MITWELL KUBER-2000-IT Series User Manual Front view Side view Top view Copyright © MITWELL 2021 KUBER-2000-IT Series User Manual...
-
Page 17: Two Layer
MITWELL KUBER-2000-IT Series User Manual 3.6.2 Two layer Dimension: 99 x 63 x 92 (mm) Front view Side view Copyright © MITWELL 2021 KUBER-2000-IT Series User Manual... - Page 18 MITWELL KUBER-2000-IT Series User Manual Top view Copyright © MITWELL 2021 KUBER-2000-IT Series User Manual...
-
Page 19: System Installation
4 SYSTEM INSTALLATION KUBER-2000-IT support two types of mounting: wall mount bracket and DIN-rail mounting bracket. You can purchase mounting kit from MiTwell as an optional accessory. This chapter provide step-by-step mounting guide for the mounting options. Make sure to fasten the screw (M3 x 5L) with proper torque (5kgf-cm) by torque wrench on KUBER-2000-IT. - Page 20 MITWELL KUBER-2000-IT Series User Manual 2. Use the correct anchor type for the mounting surface and securely attach the KUBER-2000-IT series IPC on the mounting surface, like metal rack. Ensure that the attaching hardware is in the small section of the keyholes.
-
Page 21: Din-Rail Mount
MITWELL KUBER-2000-IT Series User Manual 4.2 DIN-Rail mount Fasten the DIN-rail bracket by screws (M3 x 5L) on the KUBER-2000-IT Suitable for 35mm (W), 7.5mm(H) DIN-rail Install 1. Angle the KUBER-2000-IT IPC so the top edge of the mounting plate hangs on the top edge of the DIN rail. - Page 22 MITWELL KUBER-2000-IT Series User Manual 3. Press in until the latch snaps closed. Remove 4. Press to un-secure the device on the rail. 5. Release the latch and rotate the device away from the rail. Copyright © MITWELL 2021 KUBER-2000-IT Series User Manual...
-
Page 23: Initial Setup
MITWELL KUBER-2000-IT Series User Manual 5 INITIAL SETUP 5.1 Chassis Grounding KUBER-2000-IT provides good EMI protection and a stable grounding base. There is an easy-to-connect chassis grounding point to use 5.2 Connecting Power You can use DC power source, rated 24Vdc, if need further assistance, please contact us for further information. -
Page 24: External Antenna Installation
MITWELL KUBER-2000-IT Series User Manual 5.3 External Antenna installation Included with the installed card is an antenna (1) that attaches to a connector on the front of the unit (2). Since the KUBER-2000-IT is often installed within an enclosure, it may be advisable to install the antenna on the exterior of the enclosure with appropriate length antenna cable rather than directly to the IPC. -
Page 25: Bios Default Setting
MITWELL KUBER-2000-IT Series User Manual 6 BIOS Default Setting The Basic Input/Output System (BIOS) is a program that provides a basic level of communication between the processor and peripherals. In addition, the BIOS also contains codes for various advanced features. The default settings that work well for most configuration, most users do not need to use the BIOS setup program. -
Page 26: Configuration
MITWELL KUBER-2000-IT Series User Manual 6.2 Configuration Detail system configuration information, user can change configuration parameters in configuration, include CPU, Chipset, LAN, Graphics, PCI/PCIE, USB, Power Control, TPM, Super I/O, and H/W monitor. Caution: Setting incorrect or conflicting values in configuration may cause system malfunction. -
Page 27: Chipset Configuration
MITWELL KUBER-2000-IT Series User Manual Configuration Description Active Processor Cores Number of cores to enable in each processor Intel Virtualization When enable, a VMM can utilize the additional hardware capabilities technology provided by Vanderpool Technology. VT-d Enable/Disable CPU VT-d EIST Enables/disables Intel SpeedStep. -
Page 28: Lan Configuration
MITWELL KUBER-2000-IT Series User Manual 6.2.3 LAN Configuration Configuration on board LAN device Configuration Description PCI Express Root Port Control the PCI Express Root port. Wake On Lan Enable/Disable the wake on LAN Launch UEFI PXE Rom Enable/Disable UEFI Network Stack Ipv4 PXE Support Enable Ipv4 PXE Boot support. -
Page 29: Graphics Configuration
MITWELL KUBER-2000-IT Series User Manual 6.2.4 Graphics Configuration Configuration graphics settings. Configuration Description DVMT Pre-Allocated Use this item to select DVMT Pre-Allocated. Select Pre-Allocated (Fixed) Graphics memory size used by Internal Graphics Device from 64M to 512M GOP Driver Enable GOP Driver will unload VBIOS; Disable it will load VBIOS 6.2.5 PCI/PCIE Configuration... -
Page 30: Usb Configuration
MITWELL KUBER-2000-IT Series User Manual 6.2.6 USB Configuration USB configuration setting Configuration Description USB port # Enable / Disable USB port. Once disabled, any USB devices plug into the connector will not be detected by BIOS or OS Legacy USB support Enable/Disable Legacy USB support. -
Page 31: Power Control Configuration
MITWELL KUBER-2000-IT Series User Manual 6.2.7 Power Control Configuration System power control configuration parameters. Configuration Description Enable Hibernation Enables/disables System ability to hibernate (OS/S4 Sleep State), this option may not effective with some OS. ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is press. -
Page 32: Super I/O Configuration
MITWELL KUBER-2000-IT Series User Manual 6.2.9 Super I/O Configuration System super IO chip parameters Configuration Description Watch Dog Timer Enable/Disable watch dog timer. LPSS HSUART Support Enable/DLAN 6.2.10 H/W Configuration Monitor H/W status 6.3 Security Setup the security and check password when enter setup screen or when system power on. -
Page 33: Boot
MITWELL KUBER-2000-IT Series User Manual Configuration Description Password check mode Check password when enter setup screen (Setup ) Password check mode Check password on every time system power on (Power on) 6.4 Boot System boot setting and boot order priorities... -
Page 34: Save & Exit
MITWELL KUBER-2000-IT Series User Manual 6.5 Save & Exit Configuration Description Save Changes and Reset Reset the system after saving the changes. Discard Changes and Resets system setup without saving any changes. Reset Restore defaults Restore / load default values for all the setup options. -
Page 35: Maintenance
(ESD) according to EN 61340-5-1 and IEC 61340-5-1. The KUBER-2000-IT series can be disassembled and install the additional storage, Wifi module,…etc. by M.2 2242 slot and mini-PCIe slot. NOTE: Failure to ensure thermal pads are properly positioned may result in performance loss. - Page 36 MITWELL KUBER-2000-IT Series User Manual Pull out the bottom heat sink (8). Turn around the system, M.2 2230 wifi card can be installed on it. Finishing card’s installation, put the bottom heat sink back to the initial postion. Lock the front/rear bracket by screws (1, 2, 3, 4, 5, 6).
-
Page 37: 2242 And Mini Pci-E Card Installation
MITWELL KUBER-2000-IT Series User Manual 7.2 M.2 2242 and Mini PCI-e card installation NOTE: expansion card may various for different model, please check specification for each model. Remove 2 screws (1, 2) at the bottom of the front bracket. NOTE: need to remove the screw of COM port for some specific model. - Page 38 MITWELL KUBER-2000-IT Series User Manual Pull out the bottom heat sink (8). Turn around the system, you can find the miniPCI-e and M.2 2242 card slot can be installed on it. Finishing card’s installation, put the bottom heat sink back to the initial postion.
-
Page 39: Battery Change
MITWELL KUBER-2000-IT Series User Manual 7.3 Battery change Follow the same procedure to open the chasses of KUBER-2000-IT. Purchase the CMOS battery kit by below P/N from MiTwell Change and replace the battery kit. Model Name Part Number Description CMOS Battery kit, Coin manganese dioxide lithium... -
Page 40: Aappendix
MITWELL KUBER-2000-IT Series User Manual A APPENDIX A.1 Naming rule Model Name Part Number Description Intel® Celeron N3350, 4G LPDDR4 Memory, 32G eMMC, 24V, 2xLAN, 1xDP, 2xUSB 3.0 w/o mount kit and adapter. KUBER-212E-IT- N121 AS7-3066 (0~50C, no throttling) Expended E, 2x COM, 1xMini-PCIe, 1xM.2 KeyB... -
Page 41: System Ordering Information
MITWELL KUBER-2000-IT Series User Manual A.2 System ordering information KUBER-2000-IT series Model Name Part Number Description Intel® Celeron N3350, 4G LPDDR4 Memory, 32G eMMC, - KUBER-2110-IT-N121 AS7-3185 24V(+/-30%), 2xLAN, 1xDP, 2xUSB 3.0 w/o mount kit and adapter. (0~40C, no throttling) Intel®... -
Page 42: Accessory Ordering Information
MITWELL KUBER-2000-IT Series User Manual A.3 Accessory ordering information Accessory Model Name Part Number Description Battery kit B787J890 CMOS Battery kit, Wide temperature: -40~125 ℃ Power adaptor APH-8000 60W Power Adapter, 24V/2.5A , with 2pin connector Wall mount bracket B787J130... -
Page 43: Jumper Setting
MITWELL KUBER-2000-IT Series User Manual A.4 Jumper Setting 1.1 KUBER-212E-IT (PSMC-C303) Connector Description JPA1 COM1 RI Function JPB1 COM2 RI Function JPA1 COM1 RI Function Function PIN Signal Description PIN Signal Description 1-2 Short (12V) 1 12V 2 VCC_RI#1 Default 3-4 Short (RI) -
Page 44: Com Port Setting
MITWELL KUBER-2000-IT Series User Manual A.5 COM port setting KUBER-212E-IT provides COM port on the front panel in the form of D-sub 9P connector, which support RS232/RS422/RS485 mode as set in BIOS. See the table as below for detail function Configuration ->... -
Page 45: Golden Finger Pin-Out Table
MITWELL KUBER-2000-IT Series User Manual A.6 Golden finger pin-out table Open golden finger pinout help user quick buildup their own solution. Type / Type / P-Pin Primary (Top) Side S-Pin Secondary (Bottom) Side Tolerance Tolerance SMB_ALERT_1V8# CMOS 1.8V CSI1_TX+ / I2C_CAM1_CK CMOS 1.8V... - Page 46 MITWELL KUBER-2000-IT Series User Manual Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay No Connect Co-Lay PCIE_D_TX+ Co-Lay PCIE_D_TX- SPI0_CS1# CMOS 1.8V Co-Lay PCIE_D_RX+ SDIO_WP CMOS 3.3V PCIE_D_RX- SDIO_CMD CMOS 3.3V SDIO_CD# CMOS 3.3V...
- Page 47 MITWELL KUBER-2000-IT Series User Manual No Connect No Connect USB5+ USB0+ USB5- USB0- USB0_EN_OC# CMOS 3.3V No Connect No Connect No Connect No Connect USB1+ No Connect USB1- No Connect USB1_EN_OC# CMOS 3.3V USB3+ USB2+ USB3- USB2- No Connect No Connect LAD3 CMOS 3.3V...
- Page 48 MITWELL KUBER-2000-IT Series User Manual HDMI_D2- / DP1_LANE0- No Connect No Connect HDMI_D1+ / No Connect DP1_LANE1+ HDMI_D1- / DP1_LANE1- No Connect No Connect HDMI_D0+ / No Connect DP1_LANE2+ HDMI_D0- / DP1_LANE2- No Connect P100 S100 No Connect P101 HDMI_CK+ /...
- Page 49 MITWELL KUBER-2000-IT Series User Manual DSI1_D2- P119 GPIO11 CMOS 1.8V S119 P120 S120 LVDS1_3+ / eDP1_TX3+ / DSI1_D3+ P121 I2C_PM_CK CMOS 1.8V S121 LVDS1_3- / eDP1_TX3- / DSI1_D3- P122 I2C_PM_DAT CMOS 1.8V S122 LCD1_BKLT_PWM CMOS 1.8V P123 No Connect S123...
- Page 50 MITWELL KUBER-2000-IT Series User Manual P144 No Connect S144 eDP0_HPD CMOS 1.8V P145 No Connect S145 WDT_TIME_OUT# CMOS 1.8V P146 No Connect S146 PCIE_WAKE# CMOS 1.8V P147 VDD_IN Power In S147 VDD_RTC CMOS 3V P148 VDD_IN Power In S148 LID# CMOS 1.8V...
-
Page 51: Contact Us
MITWELL KUBER-2000-IT Series User Manual Contact us Make sure you always use the latest documentation. Up-to-date information of KUBER series products can be found and downloaded at : https://www.mitwell.com.tw/products/KUBER-2000.htm If there are any problems that cannot be solved using the documentation, please contact us for technical support.
